IBM

IBM 99F7834 4.5GB SAA Serial Storage Architecture Hard Drive DFHC IEC 950

(No reviews yet) Write a Review
SKU:
28946
MPN:
99F7834
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
4.50 LBS
Shipping:
Calculated at Checkout

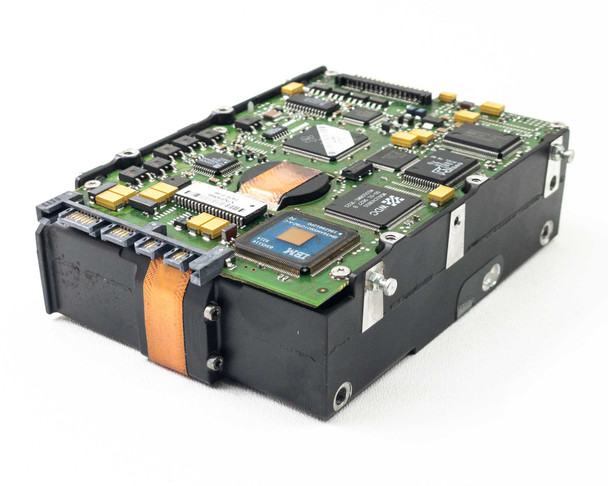

  • IBM 99F7834 4.5GB SAA Hard Drive – angled top view showing PCB with IBM, WDC, and NEC controller ICs

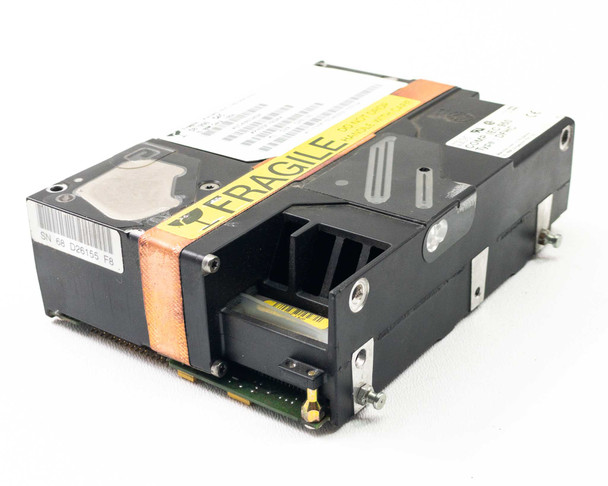

  • IBM 99F7834 SAA Hard Drive – side and connector view showing SAA interface connector and FRAGILE label
  • IBM 99F7834 SAA Hard Drive – label view showing part number 99F7834, IBM COMP IEC 950, Type DFHC, manufactured in Singapore, dated 06/1996
  • IBM 99F7834 SAA Hard Drive – opposite side view showing label reverse and mounting tabs

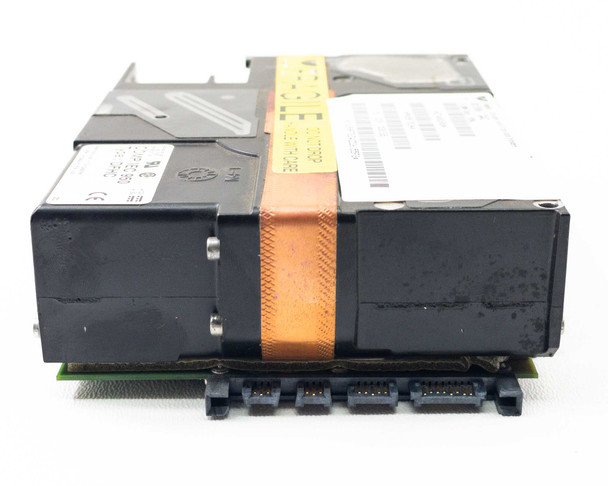

  • IBM 99F7834 SAA Hard Drive – end view showing PCB edge connectors and copper grounding strap
  • IBM 99F7834 SAA Hard Drive – opposite end view with serial number label and interface connector bay
  • IBM 99F7834 SAA Hard Drive – flat PCB top view showing IBM, WDC, NEC, and additional ICs with copper toroidal component
  • IBM 99F7834 SAA Hard Drive – close-up PCB view showing IBM ASIC (03I0114, 9314), WDC WD61C68S, and date code K7N3162669 DATE 31/95

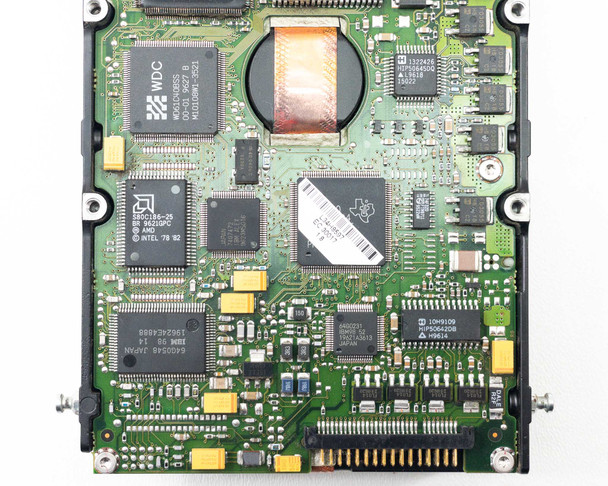

  • IBM 99F7834 SAA Hard Drive – close-up PCB view showing WDC, Intel 28C184-25, AMD, and Texas Instruments ICs
  • IBM 99F7834 SAA Hard Drive – angled front/PCB view showing full board layout and mounting bracket

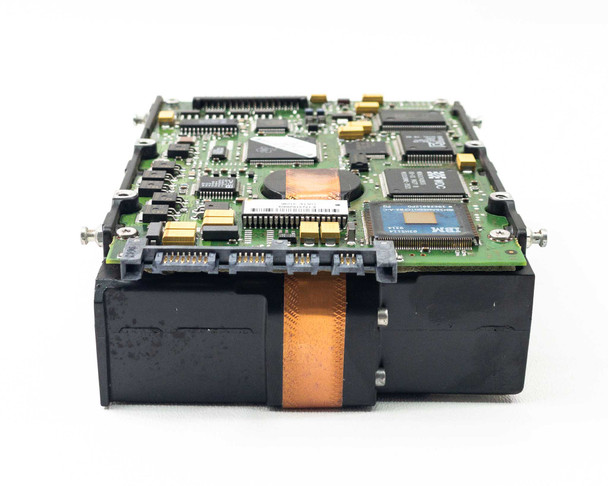

  • IBM 99F7834 4.5GB SAA Hard Drive COMP IEC 950 - AS IS
  • IBM 99F7834 4.5GB SAA Hard Drive COMP IEC 950 - AS IS
$35.00
Was: $70.00
Current Stock: 7

Sold Out

Description

IBM 99F7834 4.5GB SAA Serial Storage Architecture Hard Drive DFHC IEC 950

This is a 4.5GB hard drive using IBM's Serial Storage Architecture (SAA) interface, designed for use in IBM enterprise servers and storage subsystems from the 1990s-2000s era. The drive features a 3.5" form factor and operates under IEC 950 safety compliance.

Specifications & What's Included

  • Model: IBM 99F7834
  • Capacity: 4.5GB
  • Interface: SAA (Serial Storage Architecture)
  • Form Factor: 3.5"
  • Drive Type: DFHC
  • Safety Standard: IEC 950
  • Manufactured in Singapore
  • PCB contains IBM, WDC, and AMD controller ICs

Applications

SAA drives were used in IBM enterprise storage systems and mid-range servers during the 1990s and early 2000s. These drives are typically found in IBM RAID subsystems, tape libraries with disk staging, and enterprise-class server storage configurations. Compatibility is limited to IBM systems specifically designed for SAA interface drives.

Condition: For Parts or Not Working
This IBM 99F7834 4.5GB SAA Serial Storage Architecture Hard Drive is being sold as-is for parts or repair. We have not tested it. The drive appears cosmetically intact — the housing and PCB show normal age-related wear, the label is readable, and no obvious physical damage is visible. Due to its age and untested status, no functionality is guaranteed. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
IBM
Model:
99F7834
MPN:
99F7834
Type:
SAA Hard Drive
SKU:
28946
Interface:
SAA (Serial Storage Architecture)
Storage Capacity:
4.5 GB
Drive Type:
DFHC
Safety Standard:
COMP IEC 950
Form Factor:
3.5"
Country/Region of Manufacture:
Singapore
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Sold as-is, untested. No accessories included.
Compatible With:
IBM servers and storage systems using SAA drives
Controller Chipset:
IBM, WDC, and AMD ICs visible on PCB
Condition Notes:
IBM 99F7834 4.5GB SAA Hard Drive sold as-is, untested, for parts or repair. Cosmetically intact with normal age wear. No functionality guaranteed. Please contact us with questions.
