Description

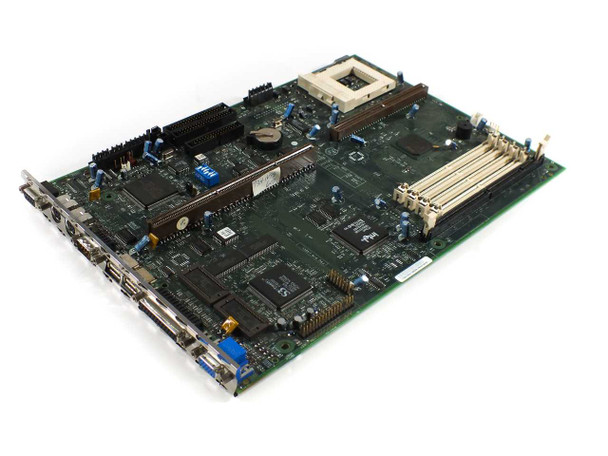

IBM 93H1699 FRU Socket 7 Motherboard for IBM 6577 6587 Desktop System Board
The IBM 93H1699 is a Socket 7 desktop system board designed for use in IBM 6577 and IBM 6587 Aptiva and PC Series desktop computers. It carries an Intel chipset, onboard integrated I/O, and a full complement of expansion slots for memory and peripheral cards. The FRU number 93H1699 is the IBM field-replaceable unit identifier used for service and procurement.
Specifications & What's Included
- Brand: IBM
- Part Number / MPN: 93H1699
- FRU: FRU93H1699 (607 revision per board label)
- Barcode string (board label): 11S93H1675ZJ11QB00209H
- CPU Socket: Socket 7 (supports Pentium-class processors)
- Chipset: Intel (exact part number not fully legible in photos)
- Memory: 4x SIMM slots (Bank 0 visible; supports EDO/FPM DRAM)
- Expansion: 4x PCI slots, 1x ISA slot (visible in photos)

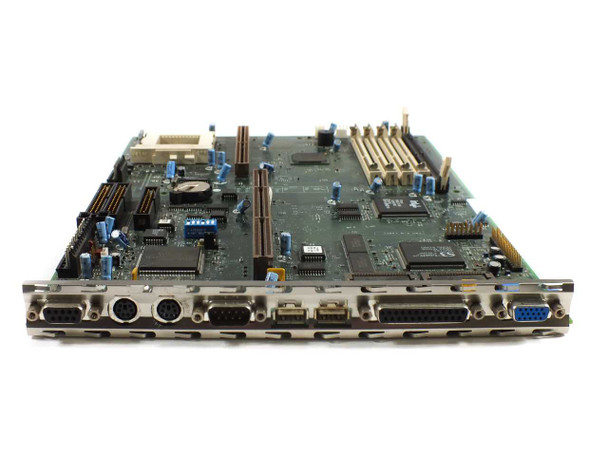

- Onboard I/O: Serial (DB9), Parallel (DB25), PS/2 keyboard and mouse, VGA, USB
- Form Factor: Desktop / Baby AT
- Compatible Systems: IBM 6577, IBM 6587
- Included: Board only — no CPU, RAM, or accessories
Applications
The IBM 93H1699 system board was used in IBM's mid-1990s Aptiva and PC Series desktop lines, representing the Socket 7 era of consumer and small-business PCs powered by Intel Pentium and compatible processors (including AMD K6 and Cyrix 6x86 variants). Socket 7 was the dominant desktop CPU platform from roughly 1993 through 1997 before Intel transitioned to the proprietary Slot 1 interface with the Pentium II. These boards are primarily sought today by technicians restoring or maintaining IBM Aptiva and PC Series systems, legacy industrial or point-of-sale installations that still rely on this hardware platform, and vintage PC collectors. The onboard integrated I/O — serial, parallel, PS/2, and early USB — is characteristic of the mid-1990s IBM desktop standard. Replacement system boards like the 93H1699 remain relevant wherever original IBM 6577 or 6587 hardware must be kept operational.
This IBM 93H1699 Socket 7 system board for the IBM 6577 and 6587 has been visually inspected and shows normal wear consistent with prior use in a desktop environment. The board appears clean overall with no visible damage, broken traces, or missing components noted in the photos. Note: the existing listing claimed this board was tested and functional, but that claim does not originate from a documented RecycledGoods staff test record and should be confirmed before publishing. It is being listed as inspected/used pending that confirmation. No CPU, RAM, or accessories are included — board only. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
IBM |
Model: |
93H1699 |
MPN: |
93H1699 |
Secondary Model: |
FRU 93H1699 |
Type: |
Desktop Motherboard / System Board |
SKU: |
15011 |
Compatible With: |
IBM 6577, IBM 6587 Desktop Systems |
Socket Type: |
Socket 7 |
Chipset: |
Intel (exact chipset not fully legible) |
Expansion Slots: |
4x PCI, 1x ISA (visible in photos) |
Memory Slots: |
4x SIMM slots (Bank 0 visible on label) |
Form Factor: |
Desktop / Baby AT |
Onboard I/O: |
Serial, Parallel, PS/2, VGA, USB |
Condition: |
Used – Inspected |
Seller Notes: |
Board only. No CPU, RAM, or accessories included. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
IBM 93H1699 Socket 7 motherboard for IBM 6577/6587. Visually inspected; shows normal used wear, no visible damage. Board only — no CPU or RAM included. Tested status unconfirmed; please contact us with questions. |
