Description
IBM 92P1021 92P1020 ThinkPad Laptop AC Adapter 16V 4.5A Barrel Plug Lenovo

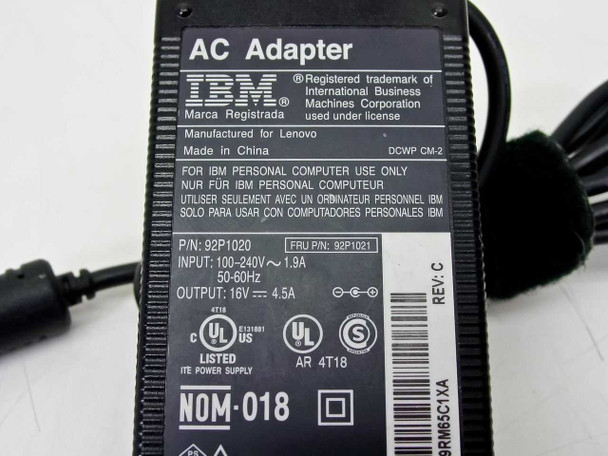

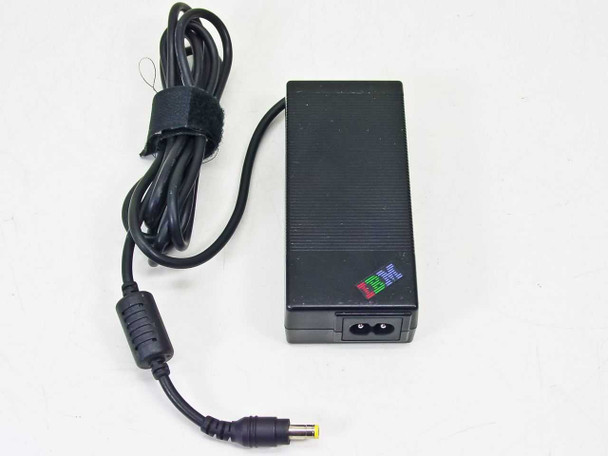

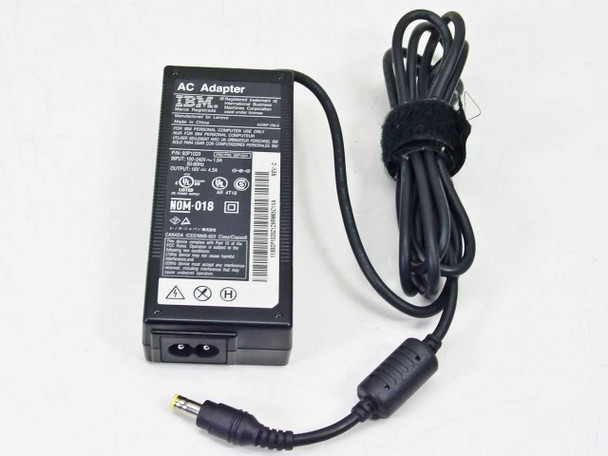

The IBM 92P1021 (FRU) / P/N 92P1020 is a genuine OEM AC power adapter manufactured for IBM ThinkPad laptops by Lenovo. It accepts universal AC input voltage and delivers a regulated 16V DC output at 4.5A (72W) through a yellow-tipped barrel plug connector, making it a direct replacement for compatible ThinkPad models that require a 16V power supply.
Specifications & What's Included
- Part Number (P/N): 92P1020
- FRU Part Number: 92P1021
- Output: 16V DC, 4.5A (72W)
- Input: 100–240V AC, 1.9A, 50–60Hz (universal voltage — works worldwide)

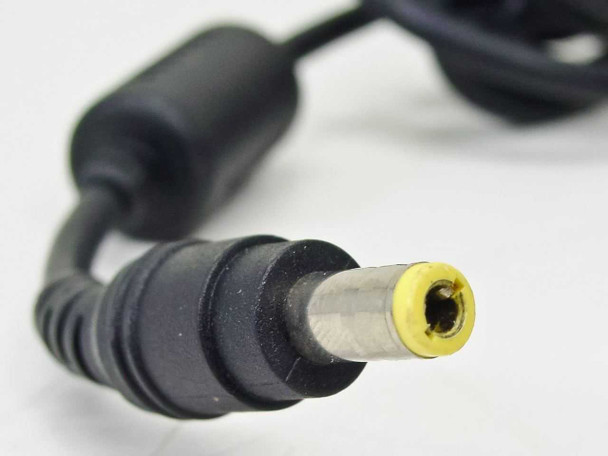

- DC output connector: Yellow-tipped barrel plug

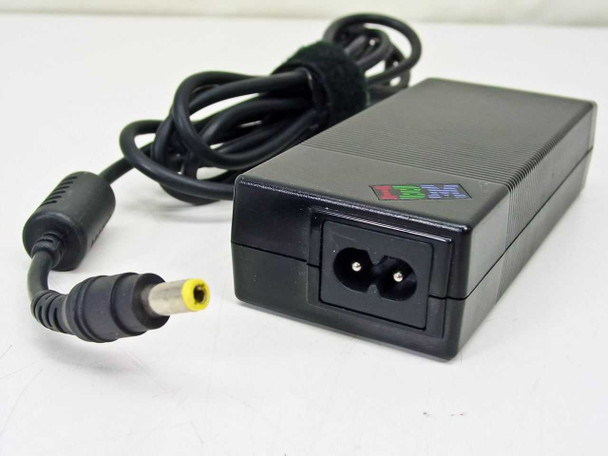

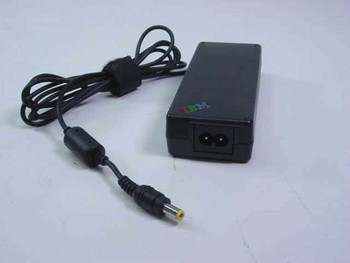

- AC inlet: Figure-8 / IEC C7 (AC power cord not included)
- Model designation: DCWP CM-2
- Revision: Rev C
- Certification: UL Listed ITE Power Supply; NOM-018
- Manufactured for Lenovo; Made in China
- Includes: AC adapter with DC output cable only — no AC power cord
Applications
This adapter is designed for IBM ThinkPad laptops that use a 16V DC barrel-plug power input, a standard common across many ThinkPad T, R, and A series models from the early-to-mid 2000s. During that era, IBM ThinkPads used a proprietary yellow-tipped barrel connector and a 16V supply rail before Lenovo (which acquired IBM's PC division in 2005) later transitioned to the slim-tip connector standard. The 92P1021 FRU number identifies it as a field-replacement part in IBM's service catalog, meaning it was the authorized replacement adapter for depot and warranty repair. The universal 100–240V input makes it compatible with AC mains supplies worldwide. Buyers typically seek this adapter for ThinkPad legacy system maintenance, spare/replacement use, or as a travel adapter for older IBM-branded ThinkPads still in service.
This IBM 92P1021 ThinkPad Laptop AC Adapter has been inspected and appears to be in good used condition. The housing is intact and the yellow-tipped DC barrel plug and figure-8 AC inlet show normal wear consistent with regular use. No cracks, fraying, or significant cosmetic damage are visible. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
IBM |
Model: |
92P1021 |
MPN: |
92P1020 |
FRU Part Number: |
92P1021 |
SKU: |
43905 |
Type: |
Laptop AC Adapter / Power Supply |
Compatible Brand: |
IBM, Lenovo |
Compatible Series: |
ThinkPad |
Output Voltage: |
16V DC |
Output Current: |
4.5A |
Output Power: |
72W |
Input Voltage: |
100-240V AC (Universal) |
Input Current: |
1.9A |
Input Frequency: |
50-60Hz |
Connector Type: |
DC Barrel Plug (Yellow Tip) |
AC Inlet Type: |
Figure-8 / C7 (IEC 60320) |
Revision: |
Rev C |
Certifications: |
UL Listed ITE Power Supply |
Country/Region of Manufacture: |
China |
Seller Notes: |
Adapter with DC output cable only — no AC power cord included. |
Condition Notes: |
This IBM 92P1021 ThinkPad laptop AC adapter has been inspected and is in good used condition. Housing is intact; barrel plug and AC inlet show normal wear. Please view photos and contact us with any questions. |
