Description
IBM 92G7690 Auto 16/4 Token Ring MC Adapter MCA Microchannel NIC Card

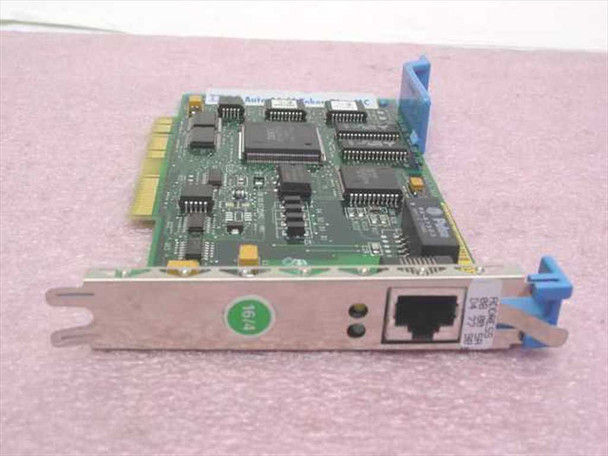

The IBM 92G7690 is an Auto 16/4 Token Ring network adapter designed for IBM's Microchannel Architecture (MCA) bus. It supports both 4 Mbps and 16 Mbps Token Ring speeds with automatic speed sensing, and connects to a Token Ring network via an RJ-45 port on the bracket. The board is marked AUTO 16/4 TOKEN RING MC ADAPTER and carries FRU number 92G7690 with a secondary part number of 92G7689.
Specifications & What's Included
- Brand: IBM
- FRU / Part Number: 92G7690
- Secondary Part Number: 92G7689
- Bus Interface: MCA (Microchannel Architecture)
- Network Standard: Token Ring, Auto 16/4 Mbps
- Data Rates: 4 Mbps and 16 Mbps (auto-sensing)
- Bracket Connector: RJ-45
- On-board transformer: Pulse brand transformer visible on PCB
- Form Factor: Full-length MCA card with blue MCA retaining bracket
- Card only — no cables or accessories included
Applications
Token Ring was IBM's proprietary LAN technology, standardized under IEEE 802.5, widely deployed in corporate and institutional networks from the mid-1980s through the late 1990s. Unlike Ethernet's contention-based access, Token Ring used a token-passing protocol over a logical ring topology, which provided deterministic performance — a key advantage in environments where predictable network latency mattered. The MCA (Microchannel Architecture) bus was introduced with the IBM PS/2 line in 1987 as a proprietary 32-bit replacement for the ISA bus, offering bus mastering and auto-configuration features well ahead of ISA's capabilities. This adapter was designed for IBM PS/2 systems and other MCA-based machines used in those corporate IBM network environments. Today these cards are sought by collectors and administrators maintaining legacy IBM PS/2 hardware, Token Ring lab environments, and vintage computing systems. The MCA bus and Token Ring standard are both discontinued technologies, making working examples like this increasingly hard to find.
This IBM 92G7690 Auto 16/4 Token Ring MC Adapter has been inspected and appears to be in good condition. The card shows normal handling wear consistent with prior use in an IBM PS/2 or compatible MCA-based system. The PCB, MCA edge connector, and RJ-45 port all appear intact with no visible damage. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
IBM |
Model: |
92G7690 |
MPN: |
92G7690 |
Secondary Model: |
92G7689 |
FRU: |
92G7690 |
Type: |
Token Ring Network Adapter Card |
SKU: |
33947 |
Bus Type: |
MCA (Microchannel Architecture) |
Network Standard: |
Token Ring 16/4 Mbps |
Data Rate: |
4 Mbps or 16 Mbps (Auto-sensing) |
Connector Type: |
RJ-45 |
Form Factor: |
MCA Card / Module |
Compatible With: |
IBM PS/2 MCA-based systems |
Condition: |
Used – Inspected |
Seller Notes: |
Card only; no cables or accessories included. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
IBM 92G7690 Auto 16/4 Token Ring MC Adapter. Inspected and in good used condition. Normal wear from prior use. PCB and MCA edge connector appear intact. No visible damage. |
