Description
IBM 92F2637 92F2613 API-2040 288W Power Supply 100-240V AS/400 PS/2
Internal power supply unit for IBM PS/2 and AS/400 compatible systems. Supplies regulated DC power to mainboard and peripherals via proprietary IBM connector.
Specifications & What's Included

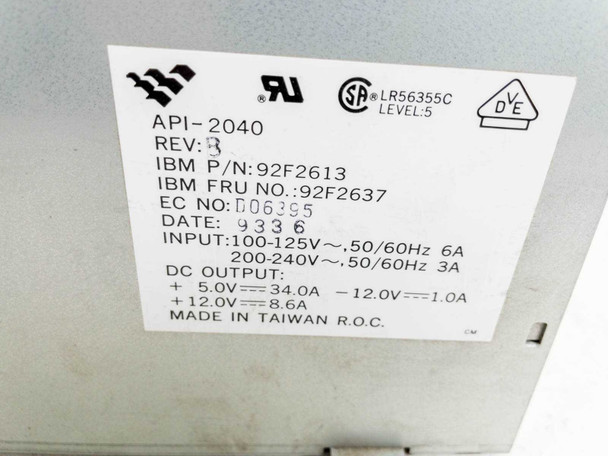

- Model: API-2040 | IBM FRU: 92F2637 | MPN: 92F2613
- Power Output: 288W total
- DC Outputs: +5V @ 34.0A, +12V @ 8.6A, -12V @ 1.0A
- Input: 100-125V AC 50/60Hz 6A or 200-240V AC 50/60Hz 3A with manual voltage selector
- Connector: Proprietary IBM multi-pin | Form Factor: Internal Desktop/Tower
- Certifications: UL, CSA, VDE | Manufactured Taiwan, 1993
- Power supply unit only; no accessories included
Applications
The API-2040 was designed for IBM PS/2 workstations and AS/400 midrange systems, platforms widely deployed in enterprise computing environments throughout the 1990s. This supply provides the multi-voltage DC rails required for system boards, disk drives, and adapter cards in these architectures. Compatible with IBM PS/2 Model 80 and compatible AS/400 systems of that generation.
Condition: Used

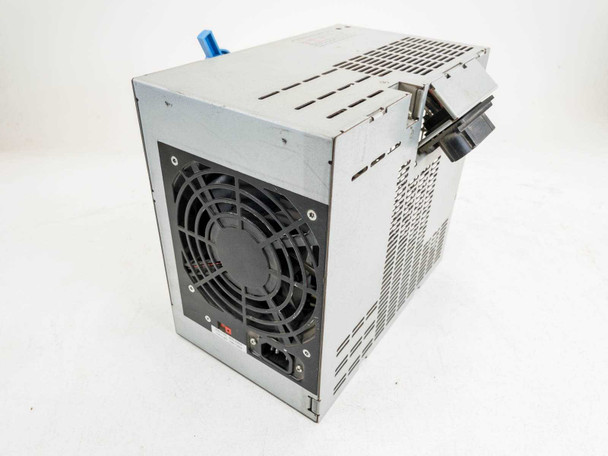

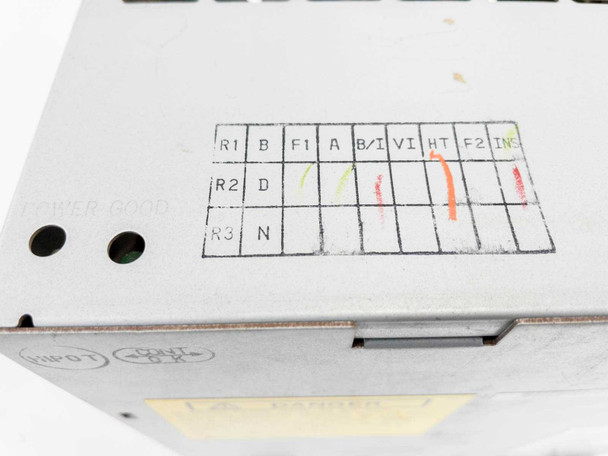

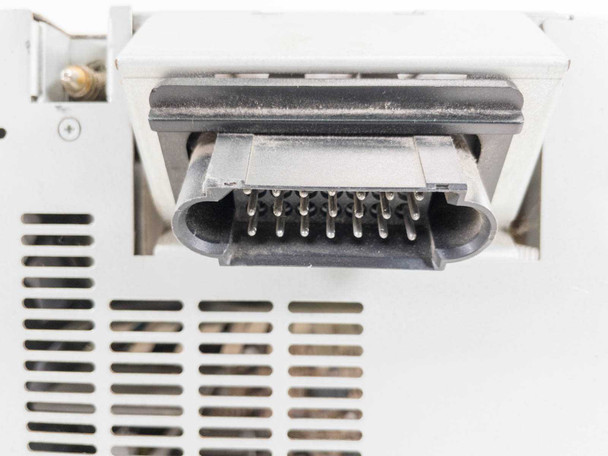

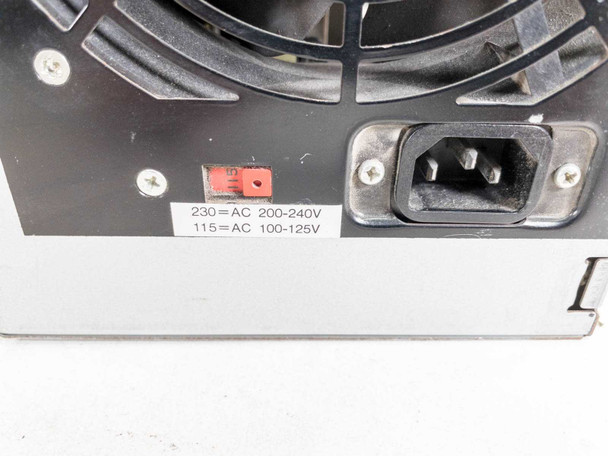

This IBM 92F2637 API-2040 288W Power Supply has been tested at our facility and is in good working order. The unit shows typical wear consistent with prior use in a production environment, including light surface scuffing on the metal housing and some marks on the top configuration grid. The voltage selector switch, IEC AC inlet, and multi-pin output connector are all present and in serviceable condition. Please view our photo set and contact us if you have any questions.
This IBM 92F2637 API-2040 288W Power Supply has been tested at our facility and is in good working order. The unit shows typical wear consistent with prior use in a production environment, including light surface scuffing on the metal housing and some marks on the top configuration grid. The voltage selector switch, IEC AC inlet, and multi-pin output connector are all present and in serviceable condition. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
IBM |
Model: |
API-2040 |
Secondary Model: |
92F2637 |
MPN: |
92F2613 |
SKU: |
19409 |
Condition: |
Used – Inspected and Tested |
IBM FRU Number: |
92F2637 |
IBM EC Number: |
D06395 |
Revision: |
Rev B |
Power Output: |
288W |
Power Requirements: |
100-125V AC 50/60Hz 6A; 200-240V AC 50/60Hz 3A |
DC Output +5V: |
+5.0V === 34.0A |
DC Output -12V: |
-12.0V === 1.0A |
DC Output +12V: |
+12.0V === 8.6A |
Voltage Switch: |
115V / 230V manual selector switch |
Form Factor: |
Internal Desktop / Tower |
Connector Type: |
Proprietary IBM multi-pin connector |
Certifications: |
UL, CSA LR56355C Level 5, VDE |
Country of Manufacture: |
Taiwan, R.O.C. |
Manufacture Date: |
1993 (Date code: 9336) |
Compatible With: |
IBM PS/2, IBM AS/400 compatible systems |
Seller Notes: |
Power supply only; no additional accessories included. |
Condition Notes: |
This IBM 92F2637 API-2040 288W Power Supply has been tested at our facility and is in good working order. The unit shows typical wear consistent with prior use in a production environment, including light surface scuffing on the metal housing and |
