Description
IBM 90X9366 90X9527 94W Power Supply for IBM 8550 PS/2 Desktop AAI3621
This is an OEM IBM 94-watt power supply designed for the IBM Personal System/2 Model 8550 desktop computer. It carries IBM FRU part number 90X9366, IBM P/N 90X9527, and GBM number 90X9526, and is manufactured by AAI (model AAI3621). The unit accepts a wide input voltage range of 100–240V AC, making it compatible with both North American and international power standards.
Specifications & What's Included
- IBM FRU Part Number: 90X9366
- IBM P/N: 90X9527
- GBM Number: 90X9526
- Manufacturer Model: AAI3621 (E.C. No. A79442)
- Output Power: 94 Watts
- Input Voltage: 100–125V AC @ 3A / 200–240V AC @ 1.5A
- Input Frequency: 50/60 Hz
- Output Rails: -12V (410mA), +12V (350mA), +5V (760mA)
- Connector: 50-pin proprietary IBM PS/2 interface connector

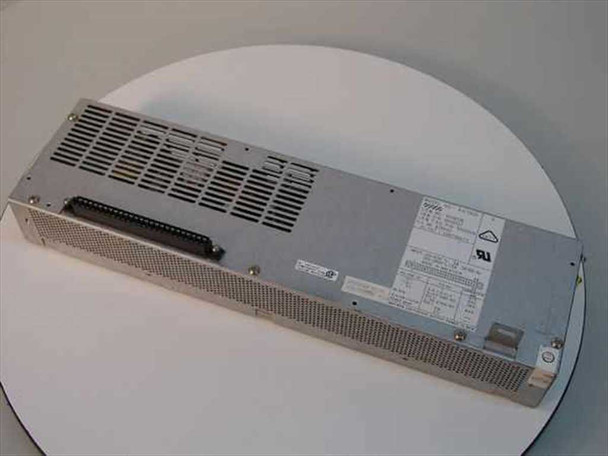

- Form Factor: Proprietary elongated sled form factor for IBM PS/2 8550 chassis

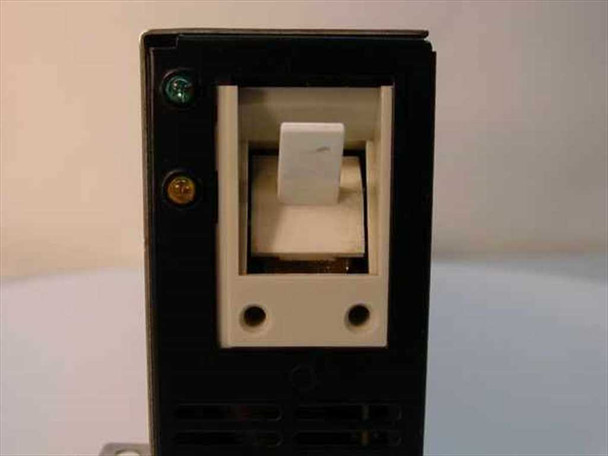

- On/Off: Rear-mounted rocker switch with green power indicator LED
- Country of Manufacture: Malaysia

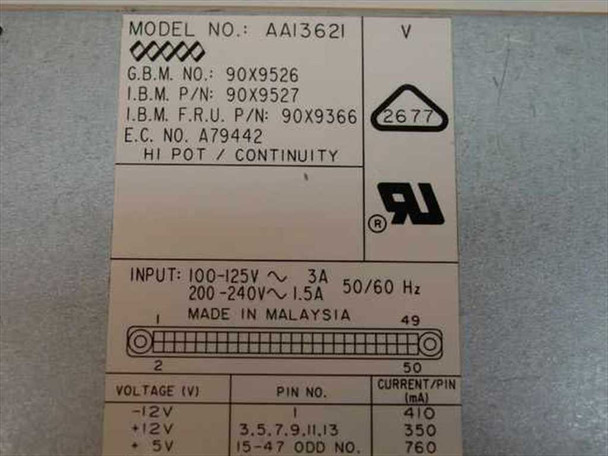

- UL Listed (UL mark visible on label)
- What's included: Power supply unit only
Applications
The IBM Personal System/2 Model 8550 was part of IBM's PS/2 line introduced in 1987, a generation of business desktops that moved away from the original PC/XT/AT architecture and introduced the Micro Channel Architecture (MCA) bus, along with the 3.5-inch floppy disk as standard. The 8550 used a 10 MHz Intel 80286 processor and was aimed at business and corporate desktop deployments. Power supplies for the PS/2 line used a proprietary form factor and connector pinout incompatible with standard ATX supplies, so a direct OEM replacement like this is the correct solution for restoring or maintaining an 8550 system. These machines remain in use among IBM PS/2 collectors and legacy industrial or institutional environments that still operate original PS/2-era hardware. The wide-range AC input (100–240V) also makes this supply usable in international settings without a step-down transformer.
This IBM 90X9366 94W power supply for the IBM 8550 PS/2 desktop has been tested and is in good working order. The unit is cosmetically consistent with normal use — the vented metal housing shows light surface wear typical of pulled surplus equipment. The rating label is intact and fully legible. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
IBM |
Model: |
90X9527 |
MPN: |
90X9366 |
Secondary Model: |
AAI3621 |
GBM Number: |
90X9526 |
IBM FRU P/N: |
90X9366 |
E.C. Number: |
A79442 |
Type: |
Desktop Computer Power Supply |
SKU: |
7973 |
Compatible With: |
IBM 8550 PS/2 Desktop Computer |
Maximum Output Power: |
94 Watts |
Input Voltage: |
100-125V AC / 200-240V AC |
Input Current: |
3A @ 100-125V; 1.5A @ 200-240V |
Input Frequency: |
50/60 Hz |
Output Voltages: |
-12V, +12V, +5V |
Output Currents: |
-12V: 410mA; +12V: 350mA; +5V: 760mA |
Connector: |
50-pin proprietary IBM PS/2 connector |
Form Factor: |
Proprietary IBM PS/2 |
Condition: |
Used – Inspected and Tested |
Country/Region of Manufacture: |
Malaysia |
Seller Notes: |
Power supply only; tested and in working order. |
Condition Notes: |
IBM 90X9366 94W PS/2 desktop power supply. Tested and in good working order. Light surface wear typical of pulled surplus equipment. Rating label intact. Please view photos and contact us with questions. |
