IBM 90X8460 MCA Multi-Protocol Communications Adapter Card PS/2

IBM 90X8460 MCA Multi-Protocol Communications Adapter Card PS/2

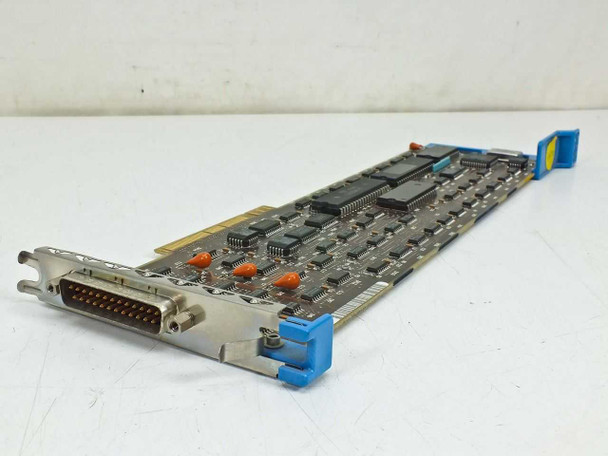

The IBM 90X8460 is a Micro Channel Architecture (MCA) multi-protocol communications adapter card designed for IBM PS/2 desktop computers. It provides serial communications capability through a DB25 bracket connector and supports multiple serial protocols, allowing PS/2 systems to connect to a range of peripherals, terminals, and host systems over serial links. The card is a full-length MCA form-factor board populated with multiple logic ICs and an onboard oscillator.

Specifications & What's Included

• Manufacturer: IBM
• Part Number: 90X8460

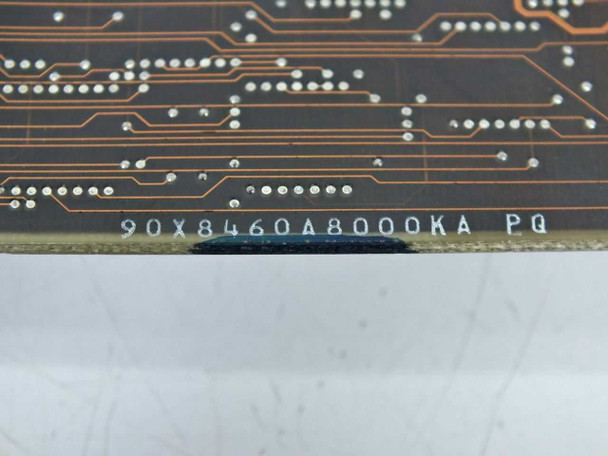

• PCB Marking: 90X8460A8000KA PQ
• Bus Interface: MCA (Micro Channel Architecture)
• Form Factor: Full-length MCA expansion card
• Bracket Connector: DB25 (D-Sub 25-pin) serial port
• Blue MCA card guides present on both ends (intact)

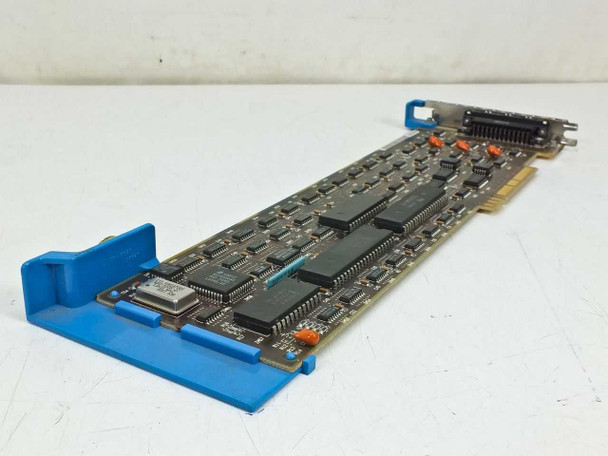

• Multiple logic ICs and onboard oscillator visible on PCB
• Card only — no cables, drivers, or reference diskette included

Applications

The IBM PS/2 line, introduced in 1987, used IBM's proprietary Micro Channel Architecture bus instead of the ISA bus found in earlier PCs. MCA offered improved bus mastering and performance over ISA, but its proprietary nature meant MCA cards were specific to IBM PS/2 machines such as the Model 50, 55, 60, 70, and 80 series. Multi-protocol communications adapter cards like the 90X8460 were used to connect PS/2 workstations to serial devices, terminals, modems, and host systems — common in IBM-centric corporate and government data center environments of the late 1980s and early 1990s. MCA expansion cards are no longer in production and are sought today primarily by technicians maintaining legacy PS/2 systems still running critical business applications, as well as collectors of IBM vintage computing hardware.
