IBM 85F0434 System Board Motherboard 90X9152-01 PS/2 ISA 1987 For Parts
This is a full-size AT-form factor system board from IBM, manufactured in 1987. It served as the main circuit board in IBM PS/2 compatible desktop systems of that era.
Specifications & What's Included
- Model: IBM 85F0434 / 90X9152-01
- Form Factor: Full-Size Desktop AT
- Bus Type: ISA with multiple expansion slots

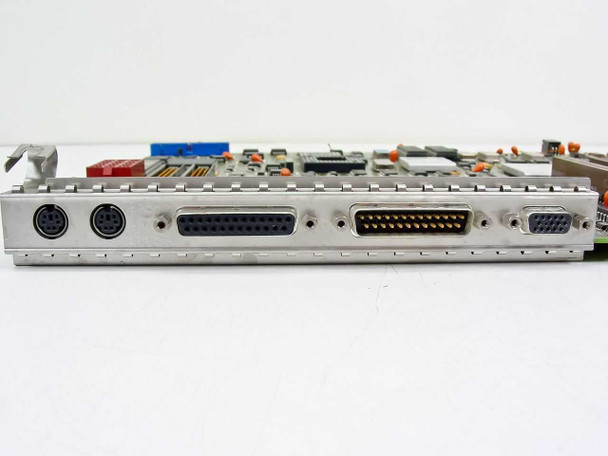

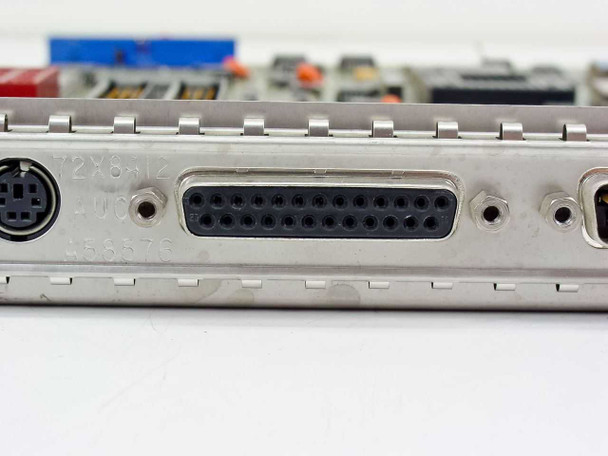

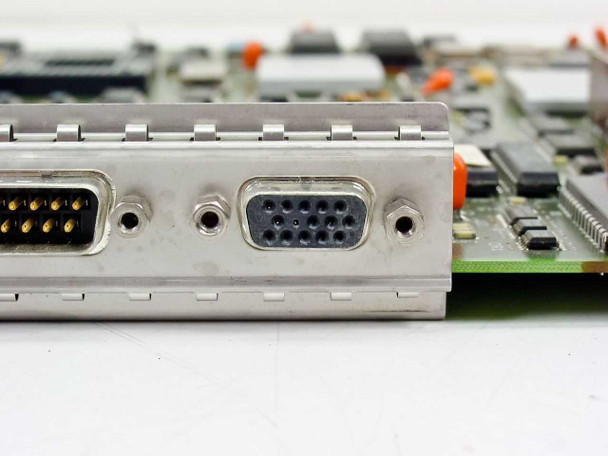

- Rear I/O: 2x PS/2 Mini-DIN, 2x DB-25 parallel, 1x DB-15 video
- Board Dimensions: 17 x 12 inches (approx.)
- Key ICs: TI-106XF, SS512AE, MP106T 74F240
Applications
System boards of this type were used as the foundation for desktop computing in the late 1980s. This board is compatible with IBM PS/2 systems and AT-era machines. It housed the processor, memory, and I/O controller logic, connecting peripherals such as keyboards, mice, printers, and monitors. These boards are sought by vintage computer collectors and restorers working with period-correct systems.
Condition: For Parts or Not Working

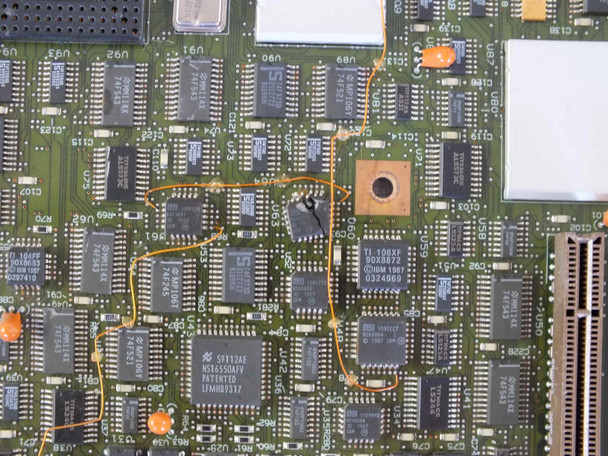

This IBM 85F0434 System Board (90X9152-01) has a cracked chip and is being sold as-is for parts or repair only. The damage is visible in our photos — orange markers in the close-up shots highlight the affected area. We are unable to test the board in this condition and make no claims about its functionality. The rest of the board appears physically intact with no other obvious damage observed. Sold as-is with no returns based on functionality. Please view our photo set and contact us if you have any questions.
This IBM 85F0434 System Board (90X9152-01) has a cracked chip and is being sold as-is for parts or repair only. The damage is visible in our photos — orange markers in the close-up shots highlight the affected area. We are unable to test the board in this condition and make no claims about its functionality. The rest of the board appears physically intact with no other obvious damage observed. Sold as-is with no returns based on functionality. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
IBM |
Model: |
85F0434 |
MPN: |
85F0434 |
Secondary Model: |
90X9152-01 |
Type: |
System Board / Motherboard |
SKU: |
41975 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Sold as-is for parts or repair. Has a cracked chip. Board cannot be tested. |
Country/Region of Manufacture: |
United States |
Form Factor: |
Full-Size Desktop / AT |
Bus Type: |
ISA |
Copyright / Board Date: |
1987 (IBM Corp 1987 silkscreen) |
Rear I/O Connectors: |
2x PS/2 Mini-DIN, 2x DB-25 (parallel), 1x DB-15 (video/other) |
Expansion Slots: |
Multiple ISA slots (visible on board) |
Compatible With: |
IBM PS/2 or compatible AT-era desktop system |
Chipset / ICs: |
TI-106XF 00X8872; SS512AE 031A550AMV; MP106T 74F240 |
Board Dimensions: |
17 x 12 inches (approx.) |
Condition Notes: |
IBM 85F0434 motherboard (90X9152-01) sold as-is for parts or repair. Has a cracked chip — see photos. Board cannot be tested. No functionality guarantee. Please contact us with questions. |
