IBM

IBM 74F9327 8-Bit ISA Token Ring Network Card 16/4 Mbps DB9 ECC24550A

(No reviews yet) Write a Review
SKU:
47367
MPN:
74F9327
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
0.95 LBS
Shipping:
Calculated at Checkout
  • IBM 74F9327 8-bit ISA Token Ring card – front view showing PCB, chips, and DB9 bracket connector

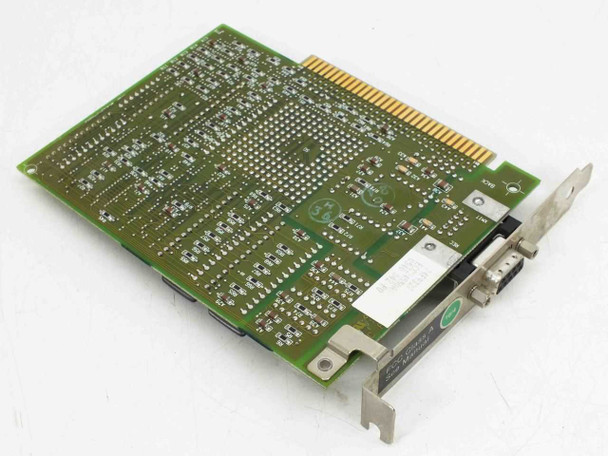

  • IBM 74F9327 Token Ring ISA card – rear/solder-side view showing PCB traces and DB9 port on bracket
  • IBM 74F9327 board label close-up showing part number 74F9327, ECC24550A, date code 0540 042 PQ
  • IBM 74F9327 ISA Token Ring card bracket close-up showing DB9 connector and 16/4 Mbps green sticker with FCC Class A label
  • IBM 74F9327 Token Ring ISA card – alternate front angle showing chip layout, ISA edge connector, and DB9 bracket
$29.00
Was: $60.00
Current Stock: 1

Sold Out

Description

IBM 74F9327 8-Bit ISA Token Ring Network Card 16/4 Mbps DB9 ECC24550A

This is an 8-bit ISA expansion card designed to add Token Ring network connectivity to legacy IBM PC and compatible systems. The card supports data rates of 16 Mbps and 4 Mbps operation.

Specifications & What's Included

  • Model: IBM 74F9327 (Board: ECC24550A)
  • Bus Interface: 8-Bit ISA
  • Network Technology: Token Ring
  • Data Rate: 16/4 Mbps
  • Connector: DB9 (9-pin)
  • Compatible Systems: IBM PC, PC/AT, ISA-bus compatible
  • Operating Systems: DOS, OS/2, Windows (legacy)
  • Card only; no cables or accessories included

Applications

Token Ring network adapters were standard in enterprise and corporate networking environments from the 1980s through early 2000s, particularly in IBM-centric installations. This card connects legacy computers to Token Ring networks for LAN communication. It is compatible with IBM PC, PC/AT, and other systems using ISA bus architecture. Such cards were commonly deployed in business environments running DOS, OS/2, or early Windows operating systems that required network access to shared resources and file servers.

Condition: Used
This IBM 74F9327 8-bit ISA Token Ring network card has been inspected and appears to be in good used condition. The PCB is clean with no visible damage, cracked traces, or missing components. The DB9 bracket connector is intact and shows normal light wear. Board markings are legible, including the part number 74F9327 and board number ECC24550A. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
IBM
Model:
74F9327
MPN:
74F9327
Secondary Model:
ECC24550A
SKU:
47367
Type:
Token Ring Network Adapter Card
Bus Interface:
8-Bit ISA
Data Rate:
16/4 Mbps
Connector Type:
DB9 (9-Pin)
Network Technology:
Token Ring
Form Factor:
ISA Expansion Card
FCC Class:
Class A
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Card only; no cables or accessories included.
Country/Region of Manufacture:
United States
Compatible With:
IBM PC, PC/AT, and ISA-bus compatible systems
Operating System Compatibility:
DOS, OS/2, Windows (legacy)
Condition Notes:
IBM 74F9327 ISA Token Ring card inspected and in good used condition. PCB is clean, no visible damage. DB9 connector intact. Part no. 74F9327, board ECC24550A. Please contact us with any questions.
View AllClose

Related Products

Related Products

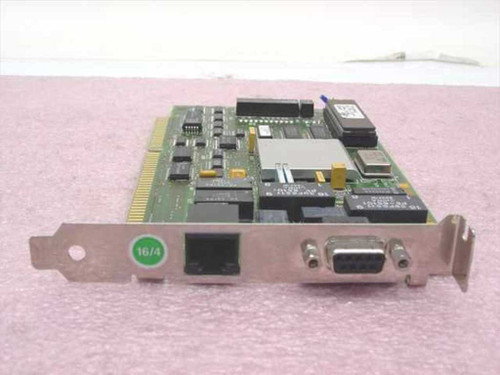

IBM 73G2042 16-Bit ISA Token Ring Adapter Card – front bracket view showing 16/4 label, RJ45 and DB9 connectors IBM 73G2042 Token Ring ISA Card – component side showing main controller chip, memory ICs, and ISA edge connector
Add to Cart
Quick view

IBM 73G2042 16-Bit ISA Token Ring Network Adapter Card 16/4 Mbps DB9 RJ45

IBM

$25.00
Was: $50.00
IBM 73G2042 16-Bit ISA Token Ring Network Adapter Card 16/4 Mbps DB9 RJ45This is a Token Ring network adapter card designed for ISA bus computers. It supports 16/4 Mbps Token Ring network...
34177
SKU:
34177
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Brand:
IBM
Model:
73G2042
MPN:
73G2042
Type:
Token Ring Network Adapter Card
SKU:
34177
Bus Type:
ISA (16-bit)
Data Rate:
16/4 Mbps
Network Technology:
Token Ring
Connector Type:
DB9 (9-pin), RJ45
Form Factor:
ISA Expansion Card
Compatible With:
IBM PS/2, IBM PC, ISA-bus desktop computers
Country/Region of Manufacture:
United States
Condition:
Used – Pulled from Working Environment
Seller Notes:
Card only; pulled from a working environment
FCC Class:
Class A
Copyright Date:
1984, 1993
Condition Notes:
IBM 73G2042 ISA Token Ring Adapter Card. Inspected and in good used condition. Pulled from a working environment where it was in use and functional. Normal light wear from prior installation.
IBM 92F4555 ISA 8-bit Token Ring network card – front component side showing main ICs and DB9 bracket IBM 92F4555 Token Ring ISA card – PCB back side showing CSRQ 0393 date code and 16/4 speed sticker on bracket
Add to Cart
Quick view

IBM 92F4555 ISA 8-Bit Token Ring Network Card 16/4 Mbps 9-Pin DB9 92F4555B

IBM

$45.00
Was: $90.00
IBM 92F4555 ISA 8-Bit Token Ring Network Card 16/4 Mbps 9-Pin DB9 92F4555B The IBM 92F4555 is an ISA 8-bit Token Ring network adapter card designed for connecting PCs to IBM Token Ring local area...
7981
SKU:
7981
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Brand:
IBM
Model:
92F4555
MPN:
92F4555B
Secondary Model:
3151042
SKU:
7981
Type:
Token Ring Network Adapter Card
Bus Interface:
ISA 8-bit
Data Rate:
16/4 Mbps
Connector Type:
DB9 9-pin
Network Technology:
Token Ring
FCC Class:
Class A
Form Factor:
ISA Card
Condition:
Used – Pulled from Working Environment
Seller Notes:
Card only; no cables or accessories included.
Country/Region of Manufacture:
Hong Kong
Compatible With:
IBM PC/AT and compatible ISA bus systems
Network Chipset:
Bel S310 B (visible on main controller IC)
Condition Notes:
IBM 92F4555B ISA Token Ring card pulled from a working environment. Board is clean with no visible damage; all ICs present. Bracket shows minor age oxidation. Good used condition. Contact us with any questions.

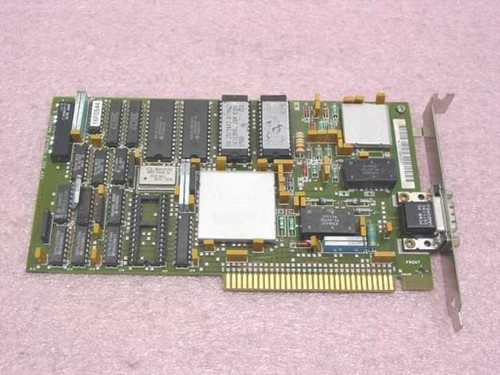

IBM 25F8886 Token Ring ISA Network Adapter Card – front view showing DB9 connector bracket and ISA edge connector IBM 25F8886 Token Ring ISA adapter card – component side showing main PCB, ICs, and rear DB9 port bracket
