IBM 74F9321 Token Ring 16/4 MCA Network Card Short 9-Pin DB9 FCC Class A

IBM 74F9321 Token Ring 16/4 MCA Network Card Short 9-Pin DB9 FCC Class A

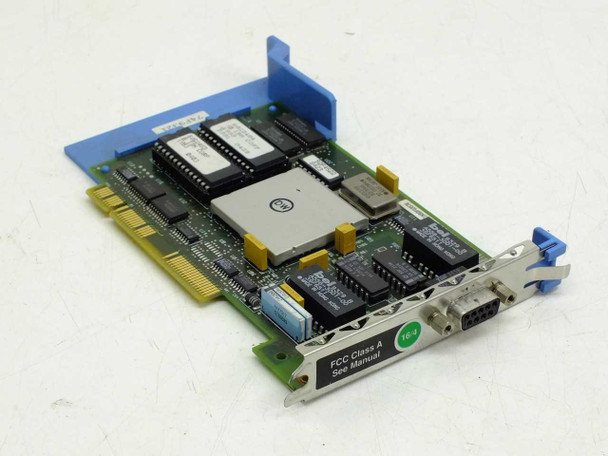

The IBM 74F9321 is a Token Ring 16/4 Mbps network adapter for the Micro Channel Architecture (MCA) bus. It is a short-form MCA card fitted with a 9-pin DB9 connector on the rear bracket, designed for connecting IBM PS/2 and other MCA-equipped systems to a Token Ring local area network at either 4 Mbps or 16 Mbps. The card is FCC Class A certified and carries the standard IBM build quality of the era, with a distinctive blue plastic MCA bracket and guide rail.

Specifications & What's Included

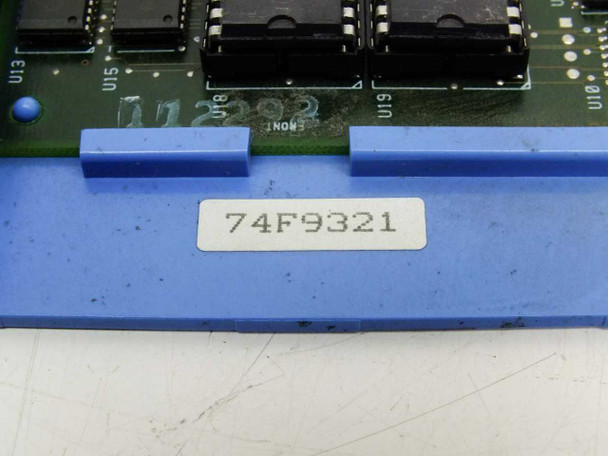

• Part Number: 74F9321
• Network Standard: Token Ring 16/4 Mbps
• Bus Interface: MCA (Micro Channel Architecture)
• Form Factor: Short MCA card with blue plastic bracket and guide
• Rear Connector: 9-pin DB9 (Type 1/Type 3 cable interface)
• Speed Badge: Green 16/4 indicator badge on bracket
• FCC Rating: FCC Class A — See Manual

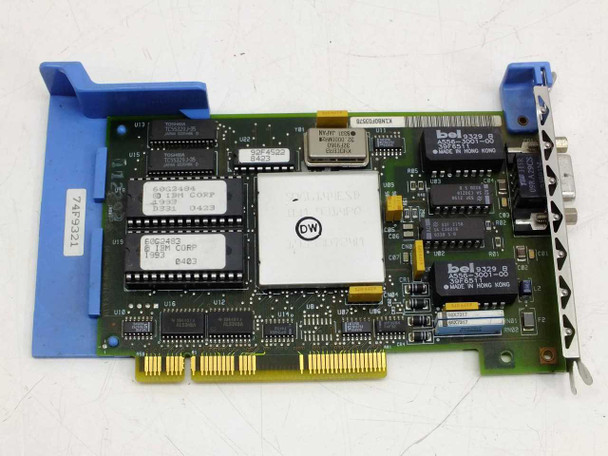

• Main Controller IC: DW-marked large IC (center of PCB)
• Supporting ICs: Bel-branded ICs visible; Toshiba memory chips on component side
• Card only — no cable or manual included

Applications

Token Ring was IBM's primary LAN technology through the late 1980s and into the 1990s, running on a deterministic token-passing protocol defined by the IEEE 802.5 standard. The 74F9321 was designed for use in IBM PS/2 systems and other workstations built on the Micro Channel Architecture — IBM's proprietary 32-bit bus introduced in 1987 to replace the ISA bus in its PS/2 product line. MCA was used across a wide range of IBM PS/2 models including the Model 50, 55, 60, 70, 80, and later 90 and 95 series, as well as IBM RS/6000 workstations and certain IBM AS/400 expansion platforms. Token Ring networks were widely deployed in corporate and enterprise environments through the early-to-mid 1990s, particularly in IBM-centric data centers and government installations where the deterministic nature of token passing was preferred over Ethernet's collision-based access method. This card supported both 4 Mbps (the original Token Ring speed) and 16 Mbps (the later higher-speed standard), making it compatible with both older and newer ring segments. By the late 1990s, fast Ethernet largely supplanted Token Ring in most installations, making cards like this 74F9321 items sought after today primarily for legacy system maintenance, IBM PS/2 restoration, and museum or collector purposes.
