IBM 73G3224 8-Bit ISA SDLC Multiprotocol Adapter Card Long Slot Vintage PC

(No reviews yet) Write a Review
SKU:
12483
MPN:
73G3224
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout
  • IBM 73G3224 8-bit ISA SDLC Multiprotocol Adapter — top-side component view showing long ISA edge connector and DB25 bracket
  • IBM 73G3224 ISA SDLC Adapter — top-down view showing Intel controller ICs, memory chips, and oscillator crystal

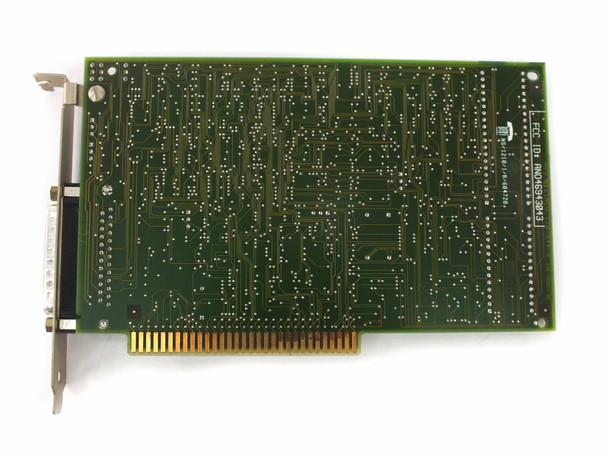

  • IBM 73G3224 ISA Multiprotocol Adapter — PCB solder side (bottom) with FCC ID label and component traces visible
  • IBM 73G3224 ISA SDLC Adapter — side profile view showing long ISA gold-finger edge connector and DB25 port on bracket
  • IBM 73G3224 close-up of label area — FRU PN 73G3224, barcode 3T0A1039069 73G3222 553, Intel P8251A and 4178624 ICs visible
$35.00
Was: $70.00
Current Stock: 48

Sold Out

Description

IBM 73G3224 8-Bit ISA SDLC Multiprotocol Adapter Card Long Slot Vintage PC

This is an 8-bit ISA adapter card designed for IBM PC/AT and compatible systems. It provides SDLC (Synchronous Data Link Control) multiprotocol communication capabilities via a DB25 connector, using Intel P8251A chipset control.

Specifications & What's Included

  • Model: IBM 73G3224 / FRU 73G3224
  • Bus Type: 8-bit ISA long slot
  • Interface: DB25 (25-pin D-sub)
  • Protocol: SDLC Multiprotocol
  • Chipset: Intel P8251A
  • Compatible: IBM PC/AT and ISA-bus systems
  • Card only; no cables or software included

Applications

SDLC adapter cards were used in IBM and compatible systems for synchronous data communications, particularly in banking, telecommunications, and enterprise networking environments. These cards connected mainframes and minicomputers to remote terminals and networks. The 8-bit ISA form factor places this in systems from the 1980s through early 1990s era.

Condition: Used
IBM 73G3224 8-bit ISA SDLC Multiprotocol Adapter Card in used condition, pulled from a working environment. The PCB is clean with no damage, broken traces, or burnt components. The bracket shows light scuffing and marks from normal use, and the DB25 connector pins are intact. No cables or software included. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
IBM
Model:
73G3224
MPN:
73G3224
Secondary Model:
73G3222
FRU Part Number:
73G3224
Type:
SDLC Multiprotocol ISA Adapter Card
Bus Type:
ISA (8-bit)
Slot Type:
8-bit ISA Long Slot
Form Factor:
Long ISA Card
Interface / Connector:
DB25 (25-pin D-sub)
Protocol:
SDLC (Synchronous Data Link Control)
Chipset / Controller:
Intel (P8251A, 4178624)
Compatible With:
IBM PC/AT and ISA-bus compatible systems
SKU:
12483
Condition:
Used – Pulled from Working Environment
Country/Region of Manufacture:
United States
Seller Notes:
Card only; no cables or software included.
Condition Notes:
Used, pulled from working environment. Clean PCB, no damage. Light scuffing on bracket, pins intact. No cables or software.
