Description

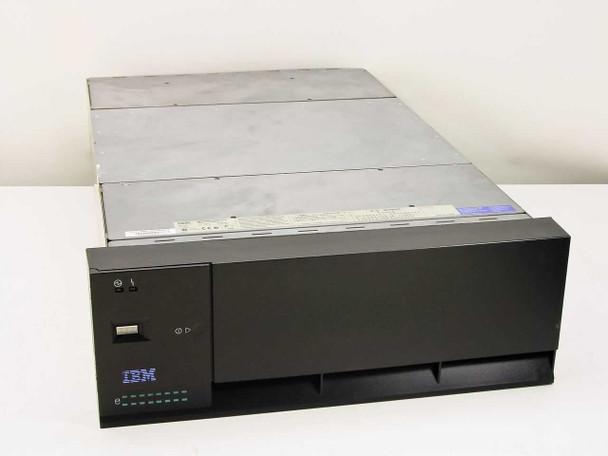

IBM 7133-D40 05J7949 SSA Disk Storage Cabinet 16-Bay 100-240V For Parts
The IBM 7133-D40 is a rackmount Serial Storage Architecture (SSA) disk storage cabinet designed to expand storage capacity for IBM midrange systems. This 16-bay enclosure houses SSA-interface hard drive modules in a rack-mounted chassis and connects to host systems via SSA loop cabling. This unit is being sold AS-IS for parts or repair — the front operator panel display and power switch are broken, and the unit has not been powered or tested.
Specifications & What's Included
- Manufacturer: IBM
- Machine Type: 7133
- Model: D40
- Part Number: 05J7949
- Drive Bay Capacity: 16 module bays (SSA hot-swap)
- Interface: SSA (Serial Storage Architecture)
- Form Factor: Rackmount
- Input Power: 100–240V AC, single phase, 50/60 Hz
- Power Consumption: 630W maximum
- Current Draw: 7.0A @ 100V / 2.8A @ 240V
- Included Power Supplies: (2) IBM 09L4299 power supplies
- Included Cooling: (3) Torin 2-speed 60W cooling fans

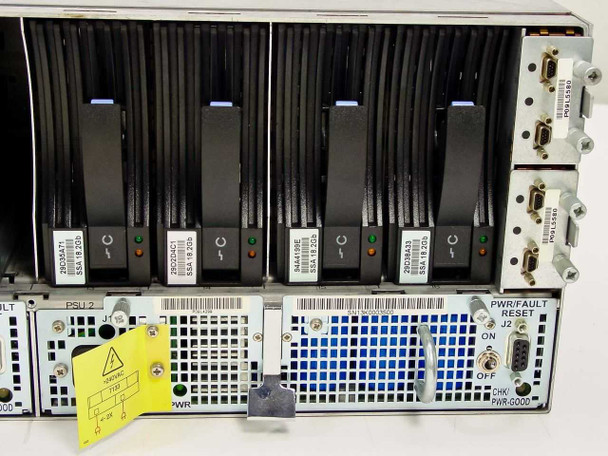

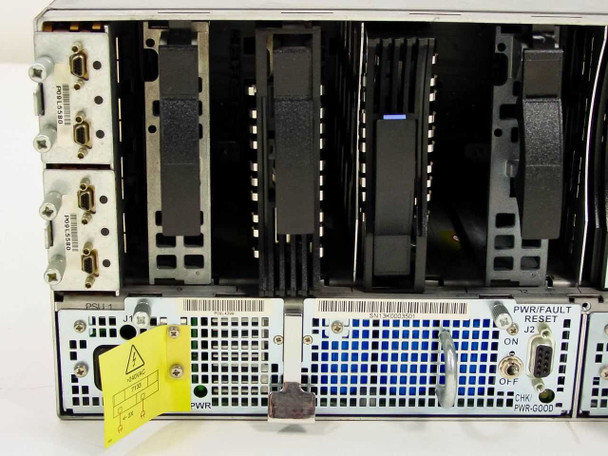

- Rear Interface Connectors: DB9 SSA loop ports (visible in photos)

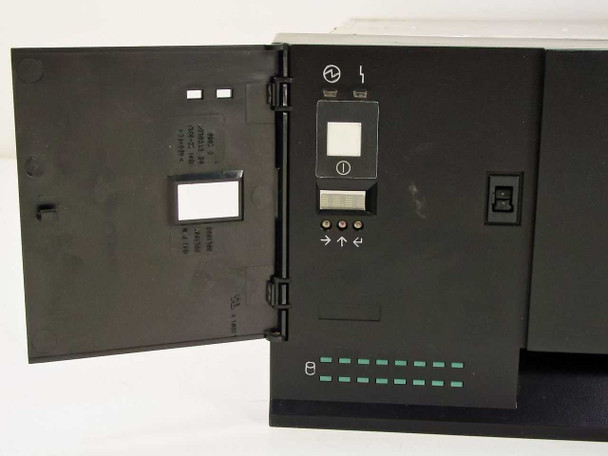

- Front Panel: Operator display and power switch (both broken — see condition)
- Certifications: CSA NRTL/C, CE, IEC 60950
- Country of Manufacture: USA (San Jose, CA)
- Known Faults: Broken front display; broken power switch
- Sold AS-IS for parts or repair — not powered or tested
Applications
The IBM 7133 SSA Disk Storage Cabinet was designed as an external storage expansion unit for IBM midrange and enterprise systems, including the AS/400 (iSeries), RS/6000 (pSeries), and compatible SSA-capable hosts. Serial Storage Architecture was an IBM-developed high-speed disk interconnect standard introduced in the mid-1990s, offering loop-based redundancy and hot-swap capability that made it well-suited for mission-critical environments. The 7133 series served as the primary external disk shelf for AS/400 installations throughout the late 1990s and into the 2000s, often deployed in finance, manufacturing, and government data centers running OS/400. Today, units like this are primarily of interest as a source of parts — including power supplies, fans, backplanes, and drive carriers — for maintaining other 7133-series enclosures still in service with legacy AS/400 or iSeries systems.

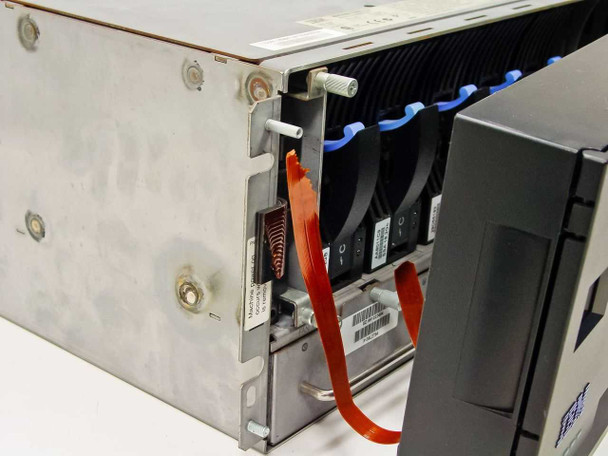

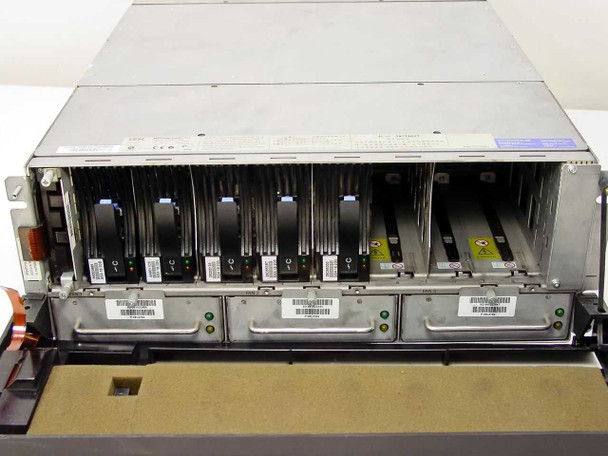

This IBM 7133-D40 SSA Disk Storage Cabinet is being sold AS-IS for parts or repair. The front operator panel display and power switch are both broken. The unit has not been powered or tested and is not guaranteed functional. It does include two 09L4299 power supplies and three Torin 2-speed 60W cooling fans, which may be useful for parts. Drive modules visible in the photos are present in the enclosure. The cabinet shows general surface wear consistent with data center use, including scuffing on the top cover and minor marks on the chassis. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
IBM |
Model: |
7133-D40 |
MPN: |
05J7949 |
Secondary Model: |
05J7949 |
Type: |
SSA Disk Storage Cabinet / Enclosure |
SKU: |
38962 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Includes 2x 09L4299 power supplies and 3x Torin 2-speed 60W cooling fans |
Country/Region of Manufacture: |
United States |
Form Factor: |
Rackmount |
Number of Bays: |
16 |
Interface Type: |
SSA (Serial Storage Architecture) |
Power Requirements: |
100–240V AC, 50/60 Hz, 630W, 7.0–2.8A |
Power Supply Model: |
09L4299 (x2 included) |
Cooling: |
Torin 2-Speed 60W Cooling Fan (x3 included) |
Compatible With: |
IBM AS/400, iSeries, pSeries SSA storage systems |
Certifications: |
CSA NRTL/C, CE, IEC 60950 |
Machine Type: |
7133 |
Fault/Defect: |
Broken display and broken power switch |
Sold As: |
For Parts or Not Working — AS-IS |
Condition Notes: |
IBM 7133-D40 SSA Disk Storage Cabinet sold AS-IS for parts. Broken front display and power switch. Not powered or tested. Includes 2x 09L4299 power supplies and 3x Torin 60W fans. Drive modules present. No functionality guarantee. |
