IBM

IBM 66X4109 B22 Tape Unit Drive w/ Boards QS90 6310 6130 6031 6020 6021 6003

(No reviews yet) Write a Review
SKU:
26129
MPN:
66X4109
Condition:
Used
Availability:
Usually ships within 3-5 business days due to size and weight.
Weight:
191.00 LBS
Shipping:
Calculated at Checkout

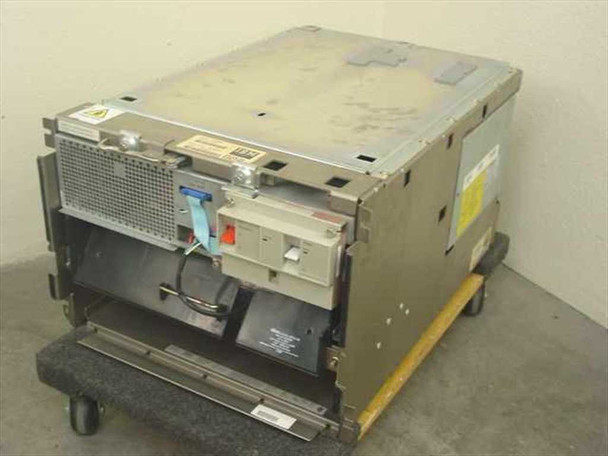

  • IBM 66X4109 B22 Tape Unit Drive – full unit front-right view on wheeled cart, showing dusty top and partial front panel
  • IBM 66X4109 B22 Tape Unit Drive – open front view showing multiple IBM board modules installed in chassis slots with blue handles

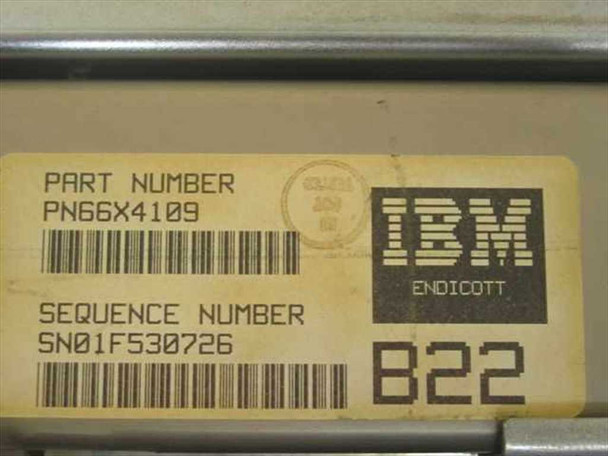

  • IBM 66X4109 label showing Part Number PN66X4109, Sequence Number SN01F530726, and B22 designation – IBM Endicott
  • IBM 66X4109 front panel controls showing Unit Emergency switch (red), Thermal indicator, and Power Ready switch
  • IBM 66X4109 side panel showing power supply label 92x2801 / A92985, 10A 200-240V input, IEC power connector, and board slots labeled QS90, 6310, 6130, 6031
  • IBM 66X4109 internal board slot view showing multiple board modules with blue handles and cable connectors installed in rows
  • IBM board module PN66X4651 (FN QS90) – front view of circuit board with blue frame and IBM label
  • IBM board label close-up showing Part Number PN66X4651 and Function Number FN QS90
  • IBM board label close-up showing Part Number PN80F8157 and Function Number FN6310
  • IBM board module PN08F5361 (FN 6130) – front view of circuit board with blue frame and IBM label

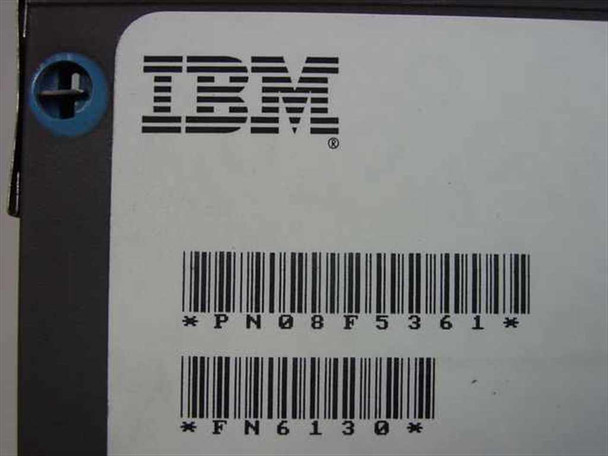

  • IBM board label close-up showing Part Number PN08F5361 and Function Number FN6130
  • IBM board module PN85X2274 (FN 6031) – front view of circuit board with blue frame and IBM label
  • IBM board label close-up showing Part Number PN85X2274 and Function Number FN6031

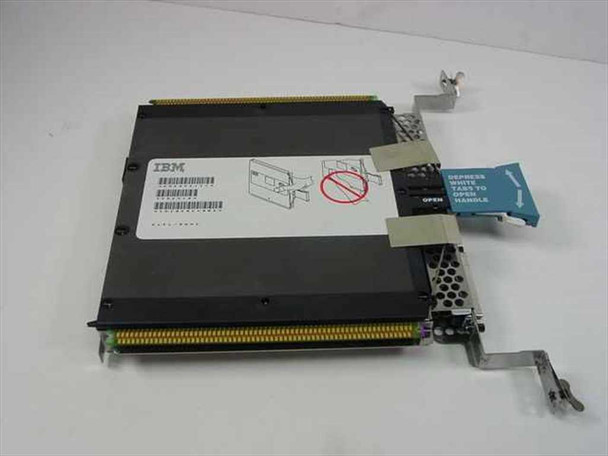

  • IBM board module PN01F3443 (FN 6020) – front view of circuit board with blue frame and IBM label

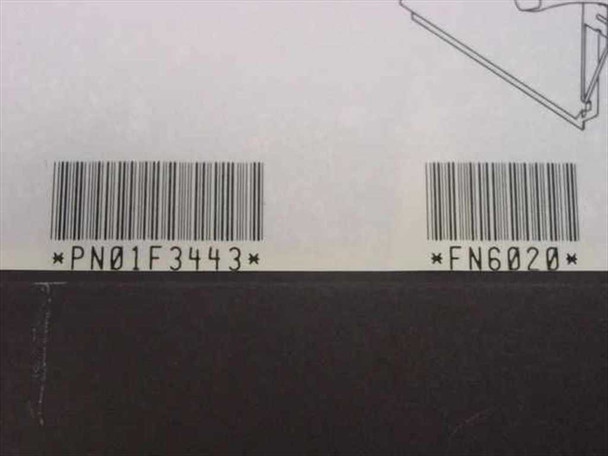

  • IBM board label close-up showing Part Number PN01F3443 and Function Number FN6020
  • IBM board module PN01F3440 (FN 6021) – front view of IBM International Business Machines Corporation board with label
  • IBM board label close-up showing Part Number PN01F3440 and Function Number FN6021
  • IBM board module with visible cable connectors on right side – front view showing IBM label and blue frame
  • IBM board label close-up – IBM International Business Machines Corporation, Part Number PN01F3440, FN6021
  • IBM board label close-up showing Part Number PN10F6507 and Function Number FN6003 – IBM International Business Machines Corporation
$400.00
Was: $800.00
Current Stock: 1

Sold Out

Description

IBM 66X4109 B22 Tape Unit Drive w/ Boards QS90 6310 6130 6031 6020 6021 6003

Legacy IBM mainframe tape storage subsystem unit. This freestanding tower cabinet houses multiple circuit boards for tape drive control and data management in IBM System i, System p, and related enterprise environments.

Specifications & What's Included

  • Model: IBM 66X4109 B22
  • Included boards: QS90 (PN66X4651), 6310 (PN80F8157), 6130 (PN08F5361), 6031 (PN85X2274), 6020 (PN01F3443), 6021 (PN01F3440), 6003 (PN10F6507)
  • Power: 200–240V AC, 10A
  • Dimensions: 27 x 19 x 14 inches
  • Manufactured: IBM Endicott, USA

Applications

Tape units of this type served as external storage subsystems for IBM mainframes and midrange systems, handling high-capacity data backup, archival, and sequential data processing. The 66X4109 series integrated with IBM System i (iSeries), System p (pSeries), and other enterprise platforms requiring tape-based storage infrastructure. Historically used in data centers for disaster recovery and long-term data retention.

Condition: For Parts or Not Working
This IBM 66X4109 B22 Tape Unit Drive is being sold AS-IS for parts or repair. Due to its age and legacy status, we are not able to guarantee functionality, and it has not been tested at our facility. The unit came from a local organization where it had previously been in service. The chassis houses multiple IBM board modules (QS90, 6310, 6130, 6031, 6020, 6021, 6003, and others) — all visible and present as shown in the photos. Externally, the top of the chassis shows significant dust accumulation and general surface grime consistent with years of storage. The front panel controls (Emergency, Thermal, Power/Ready switches) are intact and present. The unit is large and heavy (approximately 125 lbs), so please plan accordingly for shipping or local pickup. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
IBM
Model:
66X4109
MPN:
66X4109
Secondary Model:
B22
Type:
Tape Unit Drive (Legacy Mainframe Storage Subsystem)
SKU:
26129
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Includes multiple boards: QS90, 6310, 6130, 6031, 6020, 6021, 6003
Country/Region of Manufacture:
United States (IBM Endicott)
Form Factor:
Freestanding / Tower Cabinet
Power Requirements:
200-240V AC, 10A (per label: 92x2801 / A92985)
Dimensions:
27 x 19 x 14 inches
Board / Module 1:
QS90 (PN66X4651)
Board / Module 2:
6310 (PN80F8157)
Board / Module 3:
6130 (PN08F5361)
Board / Module 4:
6031 (PN85X2274)
Board / Module 5:
6020 (PN01F3443)
Board / Module 6:
6021 (PN01F3440)
Board / Module 7:
6003 (PN10F6507)
Compatible With:
IBM mainframe / midrange tape subsystem systems
Manufacturer Location:
IBM Endicott (visible on label)
Condition Notes:
IBM 66X4109 B22 Tape Unit Drive sold AS-IS for parts or repair. Not tested or guaranteed functional. Includes boards QS90, 6310, 6130, 6031, 6020, 6021, 6003. Shows dust and storage wear. ~125 lbs.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
