Description
IBM 64F1409 PS/2 8555SX ESDI Hard Drive Cable 27F4669 27F4603 EC-C32675A

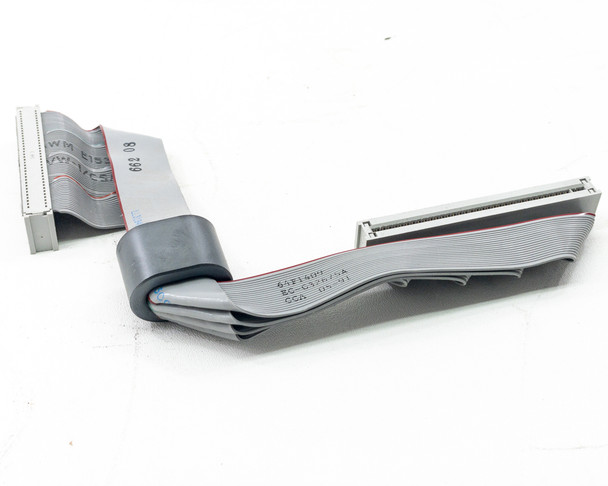

Genuine IBM internal ribbon cable assembly for ESDI hard drive connections. This flat flex cable with multi-pin IDC edge connectors links the hard drive to the system controller in PS/2 computers.
Specifications & What's Included
- Brand: IBM

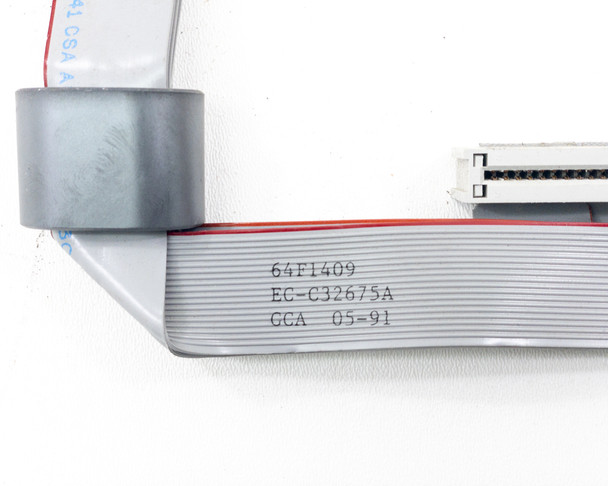

- Model: 64F1409 / EC-C32675A
- Part Numbers: 27F4669, 27F4603
- Interface Type: ESDI (Enhanced Small Disk Interface)

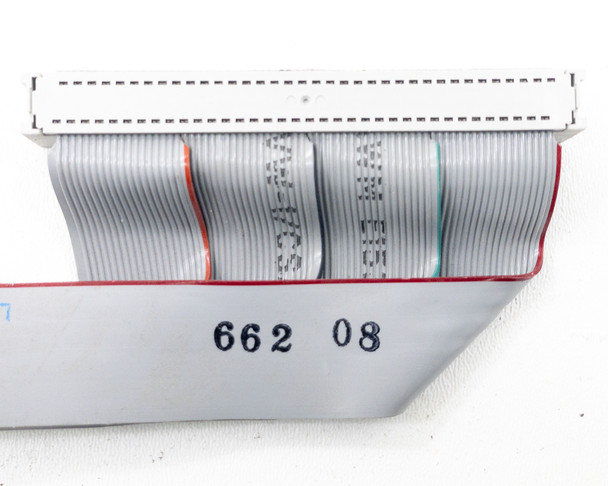

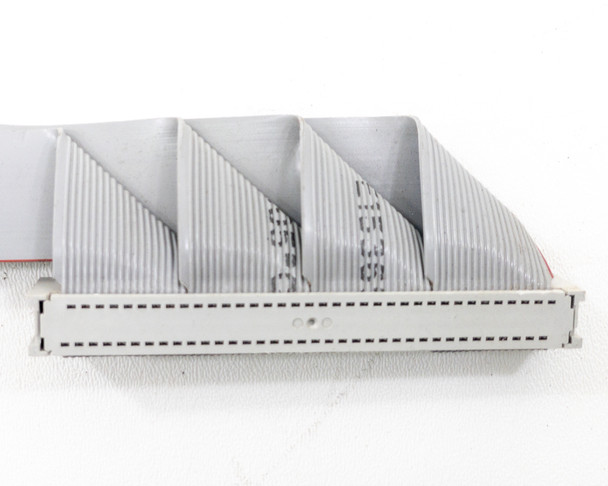

- Connector Type: ESDI edge connector, multi-pin IDC
- Form Factor: Internal ribbon cable assembly
- Manufactured: USA, May 1991
Applications
Used in IBM PS/2 8555SX, 8555-031, and 8555-061 systems to connect ESDI hard drives to the motherboard controller. ESDI was the standard interface for high-capacity hard drives in IBM PS/2 computers during the late 1980s and early 1990s. Replacement for legacy system restoration or repair.
Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

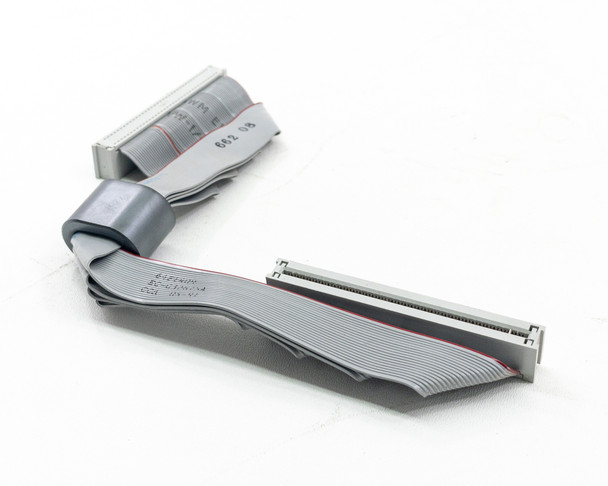

This IBM 64F1409 PS/2 8555SX ESDI Hard Drive Cable has been inspected and appears to be in good condition. It was removed from an IBM PS/2 system some years ago and has since been in storage. The ribbon cable, strain relief block, and both edge connectors are intact with no visible damage. The cable shows minor surface aging consistent with its age and storage history, but the conductors and connector housings appear clean and undamaged. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
IBM |
Model: |
64F1409 |
MPN: |
64F1409 |
Secondary Model: |
EC-C32675A |
SKU: |
53295 |
Condition: |
Used – Inspected |
Seller Notes: |
Genuine IBM ESDI ribbon cable; part nos. 27F4669 and 27F4603 also referenced |
Compatible With 1: |
IBM PS/2 8555SX |
Compatible With 2: |
IBM PS/2 8555-031 |
Compatible With 3: |
IBM PS/2 8555-061 |
Interface Type: |
ESDI (Enhanced Small Disk Interface) |
Cable Type: |
Ribbon Cable / Flat Flex Cable |
Connector Type: |
ESDI edge connector, multi-pin IDC |
Form Factor: |
Internal ribbon cable assembly |
Country of Manufacture: |
USA |
Part Number 1: |
27F4669 |
Part Number 2: |
27F4603 |
Date Code: |
05-91 (May 1991) |
Condition Notes: |
IBM 64F1409 PS/2 8555SX ESDI Hard Drive Cable inspected and in good condition. Pulled from an IBM PS/2 system; stored since removal. Cable, connectors, and strain relief intact. Minor age-related wear. Please contact us with questions. |
