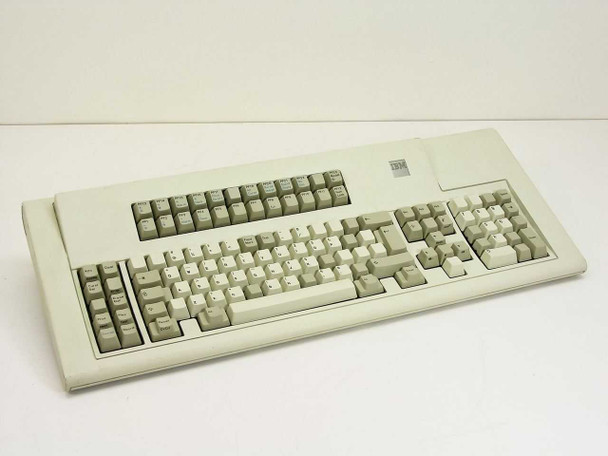

IBM Model F 6110346 Clicky Mechanical Keyboard 5-Pin DIN AT F4504 1985
The IBM Model F is one of the most celebrated mechanical keyboards ever produced, manufactured by IBM for its PC/AT line of computers. This example carries part number 6110346 (ID No. F4504, EC No. 528309A) and is dated June 18, 1985 — placing it squarely in the early IBM AT era. It uses IBM's legendary buckling-spring switch mechanism, which produces a crisp tactile bump and audible click on every keystroke, and is renowned for its exceptional durability and typing feel. The keyboard connects via a 5-pin DIN plug on a coiled cable, compatible with IBM AT-standard keyboard ports.
Specifications & What's Included
- Manufacturer: IBM
- Part Number (PT No.): 6110346
- ID Number: F4504
- EC Number: 528309A
- Designation: Model F
- Manufacture Date: June 18, 1985
- Switch Type: Buckling spring — tactile and clicky

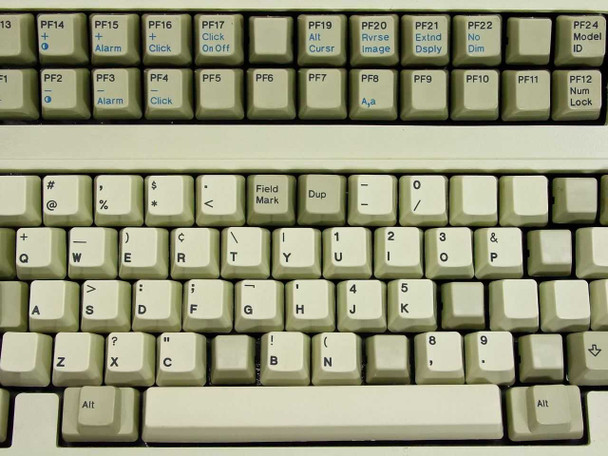

- Layout: Full size IBM AT layout with top-row PF1–PF24 function keys and blue sub-legend secondary functions

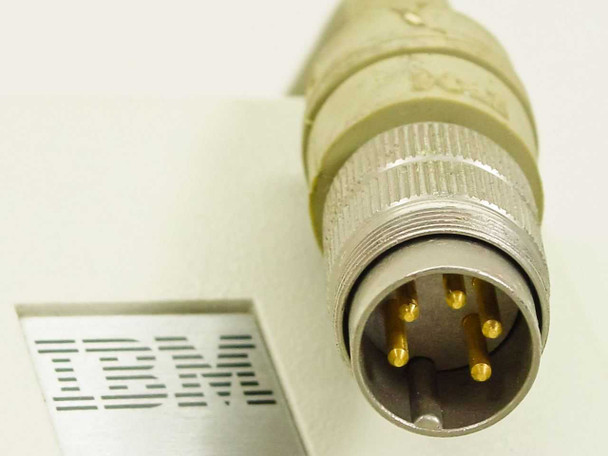

- Connector: 5-pin DIN (AT keyboard interface) on coiled cable
- Cable: Original coiled cable attached to keyboard
- Keycap legend style: Double-shot molded — legends are integral to the keycap, not printed
- Condition: Cosmetically intact; all keycaps present and legends clearly legible
Applications
The IBM Model F keyboard was produced from 1981 through the mid-1980s and was the standard input device bundled with the IBM PC/XT and IBM PC/AT (5150, 5160, and 5170 series). It also accompanied IBM's 3270 PC and various workstation terminals of the period. The 5-pin DIN connector is compatible with IBM AT-standard keyboard ports found on IBM-compatible PCs of the era and can be adapted to modern PS/2 or USB interfaces with a passive or active adapter. Today the Model F is highly sought after by mechanical keyboard enthusiasts, collectors, and vintage computing hobbyists for its buckling-spring action, which many consider the gold standard of keyboard feel. It is also used by IBM and IBM-compatible legacy system restorers who need an original period-correct input device. This particular unit dates from the height of IBM's PC/AT production in mid-1985.
This IBM Model F 6110346 mechanical keyboard has not been powered up or tested at our facility. It was pulled from storage and has not been connected to a system to verify functionality. The keyboard appears to be in good cosmetic condition overall — keycaps are intact and legends are clearly legible with no visible breakage. The coiled 5-pin DIN cable is present and attached. Normal age-related yellowing may be present on the case, as is typical on beige plastics from this era. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
IBM |
Model: |
Model F |
MPN: |
6110346 |
Secondary Model: |
F4504 |
EC Number: |
528309A |
SKU: |
39189 |
Type: |
Mechanical Keyboard |
Switch Type: |
Buckling Spring |
Connector Type: |
5-Pin DIN (AT) |
Layout: |
Full Size — IBM AT layout with PF function key row |
Manufacture Date: |
June 18, 1985 |
Compatible With: |
IBM PC/AT, IBM 5150, 5160, 5170 and compatible systems |
Country/Region of Manufacture: |
United States |
Form Factor: |
Full Size Desktop |
Interface: |
5-Pin DIN (AT/XT keyboard interface) |
Seller Notes: |
Includes attached coiled cable with 5-pin DIN connector. Keyboard only — no adapter included. |
Condition Notes: |
This IBM Model F 6110346 mechanical keyboard has not been tested at our facility. Pulled from storage; appears cosmetically intact with all keycaps present and legible. Coiled 5-pin DIN cable included. Normal age-related yellowing possible. |
