Description
IBM 8222 60G2534 6-Port 10BASE-T Unmanaged Ethernet Hub AUI RJ-45 10Mbps LAN

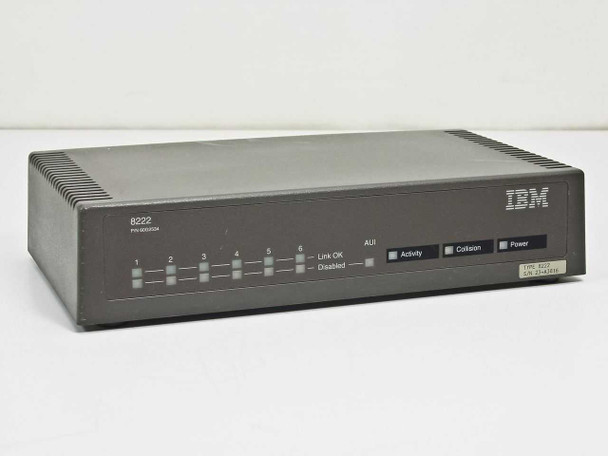

The IBM 8222 is a 6-port 10BASE-T unmanaged Ethernet hub designed for small workgroup LAN connectivity. Running at 10 Mbps, it connects up to six devices via standard RJ-45 ports and includes an AUI (DB-15) uplink port for connection to a backbone or additional network segment. Front-panel LEDs provide per-port Link OK and Disabled status at a glance, along with global Activity, Collision, and Power indicators.
Specifications & What's Included
- Model: IBM 8222
- Part Number: 60G2534
- Network Ports: 6 x RJ-45 (10BASE-T)
- Uplink Port: 1 x AUI (DB-15 connector)
- Network Standard: 10BASE-T (IEEE 802.3), 10 Mbps
- Management: Unmanaged

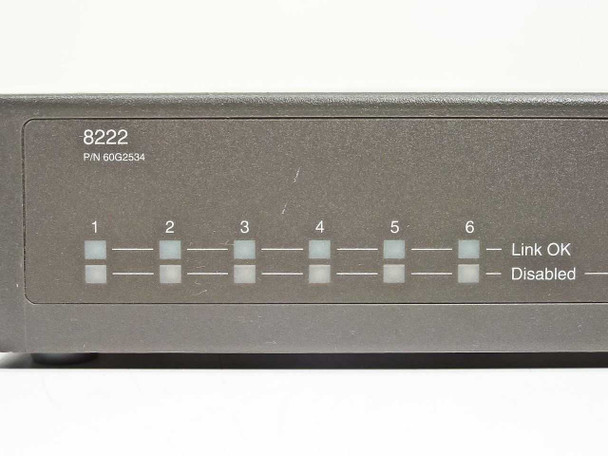

- Front-Panel Indicators: Per-port Link OK / Disabled LEDs (ports 1–6); Activity, Collision, Power LEDs
- Power: IEC C14 AC inlet
- Form Factor: Desktop
- Hub only — no power cord, cables, or documentation included
Applications
The IBM 8222 dates from the early-to-mid 1990s, when 10BASE-T hubs were the standard building block of office and campus LANs. At the time, IBM offered a range of networking hardware to support its PC and workstation lines, and hubs like the 8222 were used to connect PCs, workstations, and servers in small to medium workgroups running TCP/IP, NetBIOS, or IBM's own LAN protocols. The AUI port allowed connection to Thick Ethernet (10BASE5) backbones or external transceivers, making the unit versatile in mixed-media network environments. Today this type of hub is sought by collectors of vintage IBM networking equipment, retro computing enthusiasts, and anyone maintaining legacy 10BASE-T infrastructure for older systems that require a hub (rather than a switch) for shared-media compatibility.

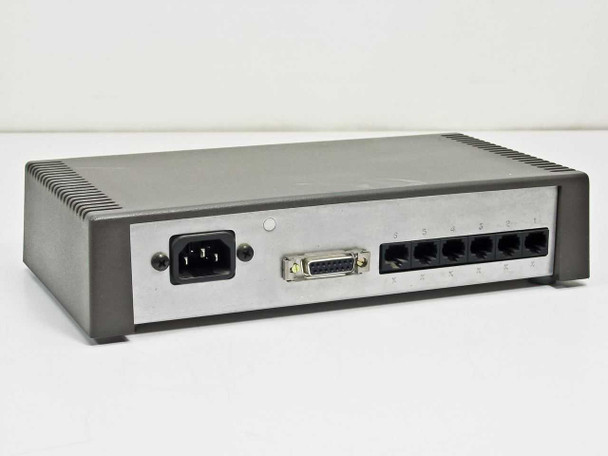

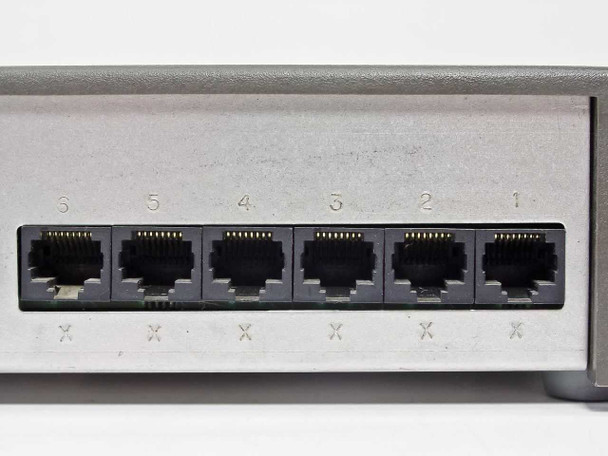

This IBM 8222 10BASE-T Ethernet Hub (P/N 60G2534) was pulled from a working environment where it was previously in use. It has been visually inspected and photographed. The unit appears to be in good cosmetic condition overall; the rear panel shows some light surface scratching typical of used network equipment. No power cord is included. Please review all photos and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
IBM |
Model: |
8222 |
MPN: |
60G2534 |
Type: |
10BASE-T Ethernet Hub |
SKU: |
18218 |
Number of Ports: |
6 x RJ-45 (10BASE-T) + 1 AUI |
Port Speed: |
10 Mbps |
Networking Standard: |
10BASE-T (IEEE 802.3) |
Management Type: |
Unmanaged |
Connector Type: |
RJ-45, AUI (DB-15) |
AUI Port: |
Yes — DB-15 AUI uplink port |
Form Factor: |
Desktop |
Power Connector: |
IEC C14 (standard AC inlet) |
Indicators: |
Per-port Link OK/Disabled; Activity, Collision, Power LEDs |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Hub only — no power cord, cables, or documentation included. |
Condition Notes: |
This IBM 8222 10BASE-T Ethernet Hub (60G2534) was pulled from a working environment. Visually inspected and in good cosmetic condition; light surface scratches on rear panel. No power cord included. Please contact us with any questions. |
