Description
IBM 58X9814 TEL-180 AC Adapter 13.9VAC 0.6A Dual Output Proprietary DIN Connector
AC power adapter designed for IBM telecommunications equipment. Converts 120VAC input to dual 13.9VAC outputs via proprietary 4-pin DIN connector.
Specifications & What's Included

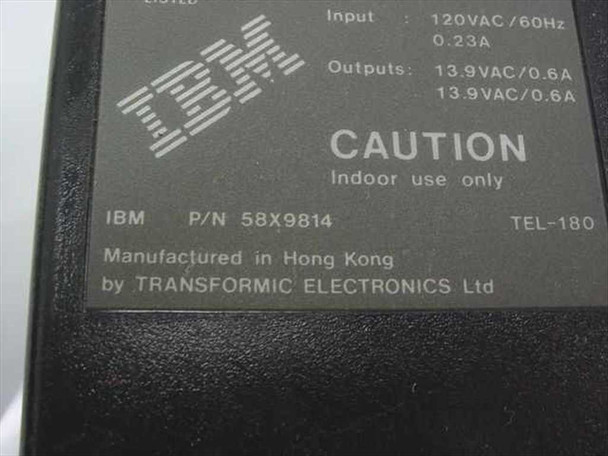

- Model: IBM 58X9814 (TEL-180)
- Input: 120VAC / 60Hz, 0.23A
- Output: Dual 13.9VAC @ 0.6A each
- Connector: Proprietary DIN (4-pin male)

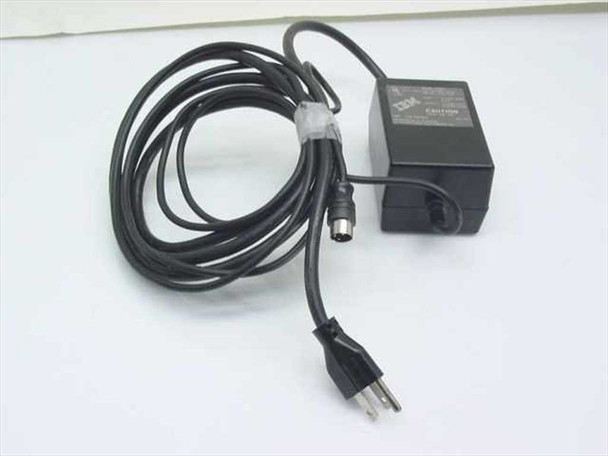

- Includes attached AC power cord and proprietary DIN output cable
- Manufactured by Transformic Electronics Ltd (Hong Kong)
Applications
This adapter supported IBM telecommunications and telecom-related equipment from the 1980s–1990s era. The dual output configuration and AC voltage supply indicate use with legacy telephone systems, PBX equipment, or associated telecom peripherals. Indoor use only.
Condition: Used
This IBM 58X9814 TEL-180 AC Adapter has been inspected and appears to be in good condition. It was pulled from a working environment where it was previously in use. The adapter body, AC power cord, and proprietary DIN output cable all appear intact with no visible damage. Normal light surface wear consistent with prior use. Please view our photo set and contact us if you have any questions.
This IBM 58X9814 TEL-180 AC Adapter has been inspected and appears to be in good condition. It was pulled from a working environment where it was previously in use. The adapter body, AC power cord, and proprietary DIN output cable all appear intact with no visible damage. Normal light surface wear consistent with prior use. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
IBM |
Model: |
58X9814 |
MPN: |
58X9814 |
Secondary Model: |
TEL-180 |
Type: |
AC Power Adapter |
SKU: |
23196 |
Input Voltage: |
120VAC / 60Hz |
Input Current: |
0.23A |
Output Voltage: |
13.9VAC / 0.6A (dual output) |
Number of Outputs: |
2 |
Output 1: |
13.9VAC @ 0.6A |
Output 2: |
13.9VAC @ 0.6A |
Connector Type: |
Proprietary DIN (4-pin male) |
Output Type: |
AC (not DC) |
Indoor/Outdoor Use: |
Indoor use only |
Country/Region of Manufacture: |
Hong Kong |
Manufacturer: |
Transformic Electronics Ltd |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes attached AC power cord and proprietary DIN output cable |
Condition Notes: |
IBM 58X9814 TEL-180 AC adapter pulled from a working environment, inspected and in good condition. Adapter body, AC cord, and DIN output cable are intact with no visible damage. |
