IBM 5641249 EC865172 3178C 5291-2 Terminal Base Power Supply Sanken 125V 1.6A

(No reviews yet) Write a Review
SKU:
11472
MPN:
5641249
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
5.00 LBS
Shipping:
Calculated at Checkout
  • IBM 5641249 EC865172 terminal base power supply — top and right side view showing perforated ventilation cover, heatsink fins, and red power switch
  • IBM 5641249 EC865172 power supply — left side and bottom view showing blue multi-pin DDK output connector and IEC AC inlet on end panel

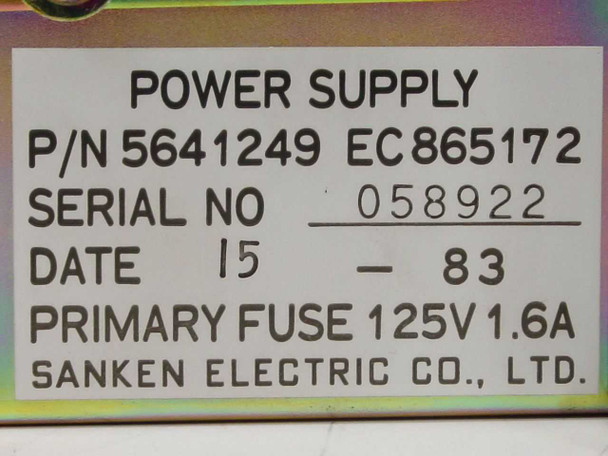

  • IBM 5641249 power supply label — shows P/N 5641249 EC865172, serial number, manufacture date 15-83, primary fuse 125V 1.6A, Sanken Electric Co. Ltd.

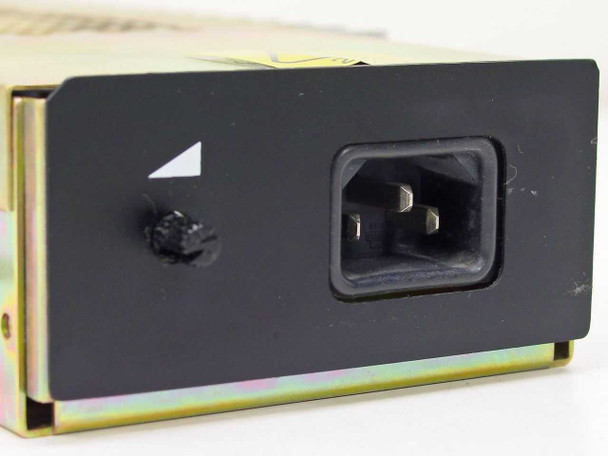

  • IBM 5641249 power supply — end panel detail showing IEC C14 AC input connector and fuse holder

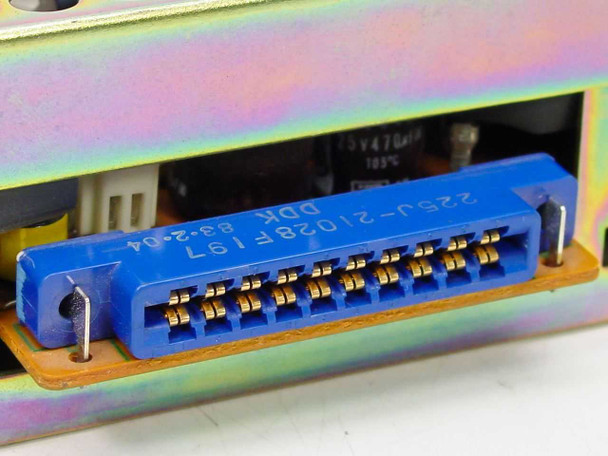

  • IBM 5641249 power supply — close-up of blue DDK multi-pin output connector, marked 225J-21028F197, date code 83-2-04
  • IBM 5641249 power supply — internal end view showing red on/off rocker switch, green status LEDs, blue lever component, and wiring harness
$60.00
Was: $125.00
Current Stock: 6

Sold Out

Description

IBM 5641249 EC865172 3178C 5291-2 Terminal Base Power Supply Sanken 125V 1.6A

Open-frame power supply unit manufactured by Sanken Electric for IBM terminal systems. Supplies regulated DC power to IBM 3178C and 5291-2 display terminals via multi-pin card-edge connector.

Specifications & What's Included

  • Manufacturer: IBM / Sanken Electric Co., Ltd.
  • Model: 5291-2; Secondary Model: 3178C
  • MPN: 5641249; Secondary MPN: EC865172
  • Input: 125V AC, 1.6A fuse rating; IEC C14 inlet
  • Switch Rating: 10A AC125V / 8A AC250V
  • Output: Multi-pin card-edge / blue DDK connector
  • Form Factor: Open frame
  • Manufactured: 1983, Japan

Applications

Terminal base power supplies supported IBM's early display terminal products used in business computing environments from the 1980s onward. The 3178C and 5291-2 were monochrome display terminals deployed in mainframe-connected workstations. This supply converts AC mains to regulated DC outputs required by the terminal's display and control circuits.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: Used
This IBM 5641249 EC865172 Terminal Base Power Supply has been visually inspected and powers on — the green status LED illuminates when connected. However, we are unable to fully verify all DC output rails or perform a complete functional test of this power supply, and it is therefore being offered in a used, untested condition. The unit appears cosmetically sound with the typical brass-toned iridescent patina common to open-frame PSUs of this era; the heatsink, ventilation cover, and connectors all appear intact with no obvious physical damage. Please review our photo set carefully and contact us with any questions before purchasing.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
IBM / Sanken Electric Co., Ltd.
Model:
5291-2
Secondary Model:
3178C
MPN:
5641249
Secondary MPN:
EC865172
SKU:
11472
Condition:
Used – Powers On, Not Fully Tested
Seller Notes:
Unit powers on; green LED illuminates. Sold untested — unable to fully verify all outputs.
Form Factor:
Open Frame
Compatible With:
IBM 3178C Display Terminal, IBM 5291-2 Terminal
Primary Fuse Rating:
125V 1.6A
Power Switch Rating:
10A AC125V / 8A AC250V
Output Connector:
Multi-pin card-edge / blue DDK connector
AC Input Connector:
IEC C14 inlet
Manufacture Date:
1983 (Date code: 15-83)
Country of Manufacture:
Japan
Type:
Terminal Base Power Supply
Vintage / Era:
1983
Condition Notes:
IBM 5641249 EC865172 terminal power supply powers on and green LED illuminates. Unable to fully test all outputs — sold used, untested. Cosmetically sound. Please view photos and contact us with questions.
