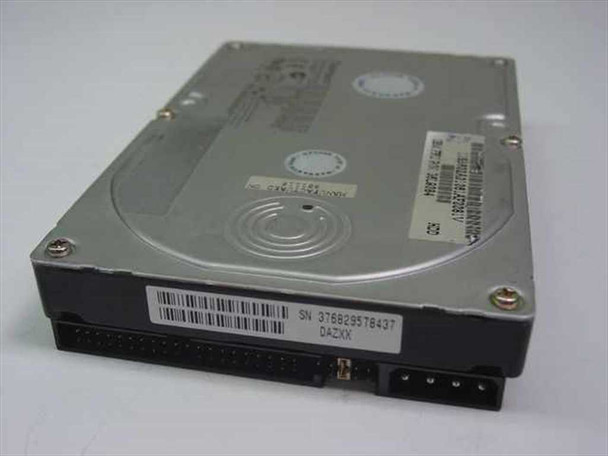

IBM 36L9084 Quantum Fireball EX 6.4GB 3.5" IDE Hard Drive 5/12V HDD

IBM 36L9084 Quantum Fireball EX 6.4GB 3.5" IDE Hard Drive 5/12V HDD

The IBM 36L9084 is a 6.4GB 3.5-inch IDE (PATA) hard disk drive manufactured by Quantum under their Fireball EX product line. IBM issued this drive under FRU part number 36L9084 for use in IBM desktop and workstation systems of the era. It uses a standard 40-pin IDE interface and requires 5V and 12V DC power, making it a direct drop-in for any legacy IDE-equipped system.

Specifications & What's Included

• IBM FRU Part Number: 36L9084
• Manufacturer Model: Quantum Fireball EX 6.4 (Quantum 6.4AT)
• Capacity: 6.4 GB
• Interface: IDE / PATA (40-pin)
• Form Factor: 3.5" (3.5 Series)
• Power Requirements: 5V / 12V DC, 650/720mA
• C/H/S Geometry Options: 3.2GB (6256/16/63), 5.1GB (10602/15/63), 6.4GB (13328/15/63), 10.2GB (19885/16/63)
• Jumper Configuration: Master (factory default), Slave (Jumper Parking Position), Cable Select / Master-Slave
• Country of Manufacture: Japan (Susaki)
• Certifications: CE, CSA, UL
• Includes: Drive only

Applications

The Quantum Fireball EX series was a mainstream 3.5-inch desktop hard drive line produced in the late 1990s, commonly used in IBM-branded desktops, workstations, and compatible PC systems of that era. IDE (PATA) was the dominant desktop storage interface through most of the 1990s and into the early 2000s before SATA displaced it. Drives like this one were used in IBM NetVista, Aptiva, and IntelliStation systems, as well as broadly across the PC-compatible market. Today these drives are sought after for restoring or maintaining legacy IBM and PC systems, for vintage computing projects, and as period-correct replacements in machines that require IDE storage. The Quantum Fireball line was known for competitive capacity and performance benchmarks within its generation. Quantum's hard drive business was later acquired by Maxtor in 2001, making original Quantum-manufactured units a fixed supply.
