Description
IBM 35H8751 64MB ECC DIMM 8M x 72 70NS 5.0V Memory Module FRU
The IBM 35H8751 is a 64MB ECC DIMM (8M x 72 configuration) running at 70NS with a 5.0V supply voltage, originally manufactured in Canada as an IBM Field Replacement Unit (FRU). It is a 168-pin DIMM with 72-bit bus width, providing error-correcting code (ECC) support for memory integrity in server and workstation environments.
Specifications & What's Included
- Brand: IBM
- FRU / Part Number: 35H8751
- Capacity: 64MB
- Configuration: 8M x 72
- Speed: 70NS
- Voltage: 5.0V
- ECC: Yes (72-bit bus width)
- Form Factor: 168-pin DIMM
- Country of Manufacture: Canada (Assembled in Canada per label)

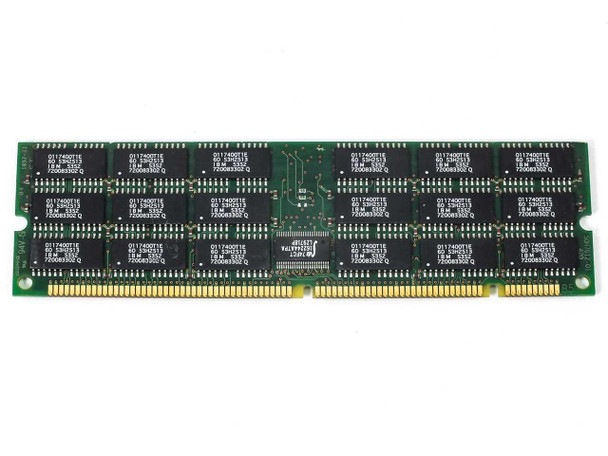

- Memory chips visible on both sides of the PCB
Applications
This type of 5.0V ECC DIMM was used in IBM server and workstation platforms of the mid-to-late 1990s, including IBM RS/6000, AS/400, and similar midrange and RISC-based systems that required ECC memory for data integrity. ECC memory detects and corrects single-bit errors in real time, making it the standard choice for mission-critical servers and workstations rather than consumer desktop systems. At 70NS, this module fits the timing requirements of that era's memory controllers. Today, these modules remain relevant for legacy IBM system maintenance, repair, and memory upgrades where the original FRU specification must be matched.
This IBM 35H8751 64MB ECC DIMM memory module has been tested and confirmed to be in good working condition. The module is clean and free of visible damage. The label is intact and fully legible, showing the FRU number, specs, and country of manufacture. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
IBM |
Model: |
35H8751 |
MPN: |
35H8751 |
Type: |
ECC DIMM Memory Module |
SKU: |
49989 |
Capacity: |
64MB |
Memory Configuration: |
8M x 72 |
Speed: |
70NS |
Voltage: |
5.0V |
ECC: |
Yes |
Form Factor: |
DIMM |
Memory Type: |
FPM / EDO ECC DIMM |
Bus Width: |
72-bit (ECC) |
Country/Region of Manufacture: |
Canada |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
IBM FRU 35H8751; tested and in good working condition. |
Condition Notes: |
IBM 35H8751 64MB ECC DIMM tested and in good working condition. Module is clean with intact label. No visible damage. |
