IBM 09L2271 SSA Hard Drive Caddy Tray Carrier No Drive AS400 Server

IBM 09L2271 SSA Hard Drive Caddy Tray Carrier No Drive AS400 Server

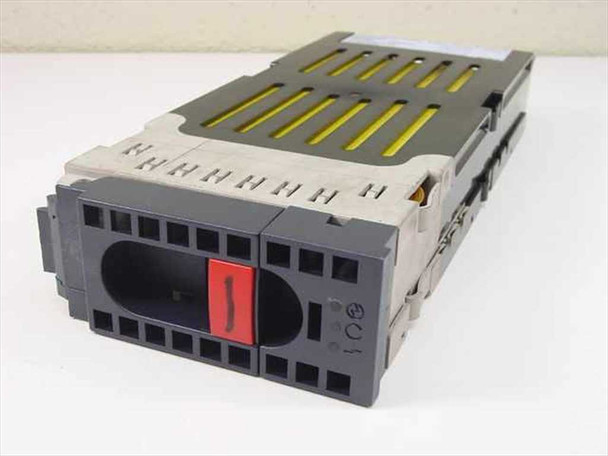

The IBM 09L2271 is a hot-swap hard drive caddy and carrier tray designed for IBM SSA (Serial Storage Architecture) RAID storage systems. This listing is for the caddy only — no hard drive is installed or included. The caddy accepts a standard 3.5-inch hard drive and slides directly into compatible IBM SSA storage enclosures, providing the hot-swap mechanism and SSA interface connection needed for drive installation and replacement.

Specifications & What's Included

• Manufacturer Part Number (MPN): 09L2271
• FRU P/N: 09L2271
• Interface: SSA (Serial Storage Architecture)
• Drive Included: No — caddy/tray only
• Drive Form Factor Supported: 3.5-inch
• Hot-swap capable: Yes
• Locking lever: Red actuation lever (front-mounted)
• Rear SSA connector: Multi-pin SSA interface connector visible on rear of caddy
• Country of Manufacture: Canada (per label)
• Condition: Inspected, cleaned, and tested — very good condition

Applications

IBM's SSA (Serial Storage Architecture) was a high-speed serial loop storage interface developed in the 1990s as an alternative to parallel SCSI for enterprise storage. SSA offered loop-based hot-swap capability and was used primarily in IBM midrange and server storage arrays, including the IBM 7133 SSA Disk Subsystem, the IBM 9337 Disk Array, and IBM AS/400 (iSeries) attached storage enclosures. These caddies were the standard hot-swap carrier for SSA drives in those systems — a failed drive could be swapped without powering down the array. While SSA has been largely superseded by Fibre Channel and SAS in modern deployments, legacy IBM midrange installations running AS/400 or early pSeries systems still rely on this hardware for maintenance and drive replacement. This caddy is the correct replacement carrier for those environments.
