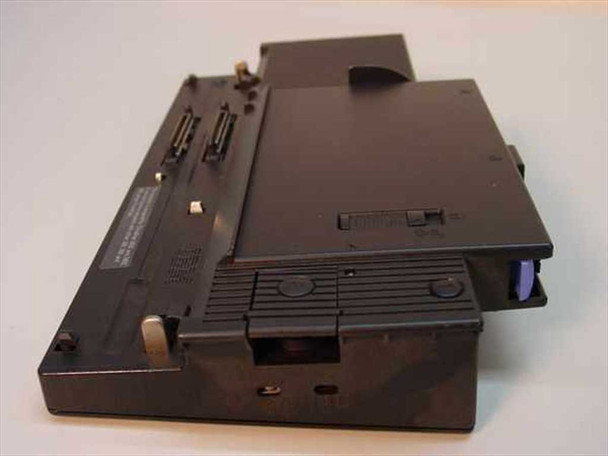

IBM 05K4873 Port Replicator ThinkPad 380Z 560Z 390 390X EtherJet USB VGA
The IBM 05K4873 is a port replicator designed for IBM ThinkPad laptops from the late 1990s — specifically the 380Z, 560Z, 390, and 390X series. It connects via IBM's proprietary expansion connector on the underside of compatible ThinkPads, instantly extending the laptop with a full complement of desktop-style ports without plugging in individual cables. A one-step locking mechanism secures the laptop to the base; a release lever ejects it cleanly.
Specifications & What's Included
- Part Number: IBM 05K4873
- Type: Port Replicator (docking base)
- Interface: Proprietary IBM ThinkPad expansion connector
- Locking: One-step locking mechanism with eject lever
- Network: Advanced EtherJet — RJ-45 LAN adapter (10/100)
- Modem: RJ-11 connector
- Video: VGA out (DB-15, rear panel)
- Audio: Line In and Line Out 3.5mm jacks
- Game/MIDI: Game port (rear panel)
- Serial: DB-9 serial port (rear panel)
- Parallel: DB-25 parallel port (rear panel)
- USB: One USB Type-A port
- PS/2: Two PS/2 ports (keyboard and mouse)
- Floppy drive bay/connector included
- Expansion connector pass-through
- Compatible with: IBM ThinkPad 380Z, 560Z, 390, 390X series
- Port replicator unit only — no power adapter, cables, or laptop included
Applications
IBM ThinkPad port replicators from this era were designed to give mobile users a permanent desktop station they could drop their laptop into at the start of the workday. Rather than reconnecting a monitor, keyboard, mouse, printer, and network cable one by one, a port replicator let the user dock with a single motion and have everything live immediately. The 05K4873 was part of IBM's ThinkPad accessory ecosystem of the late 1990s, supporting the 380 and 390 product lines — mid-range ThinkPads that were common in corporate and government environments. The built-in Advanced EtherJet network adapter was a notable feature for the time, providing wired LAN connectivity without requiring a PCMCIA card. Today these units are used primarily by collectors, retrocomputing enthusiasts, and organizations still running late-1990s ThinkPad hardware in legacy environments.
This IBM 05K4873 ThinkPad Port Replicator has been inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in service. The unit shows normal cosmetic wear consistent with prior use — please review all photos for a close look at the current state. It has not been powered up or bench-tested at our facility. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
IBM |
Model: |
05K4873 |
MPN: |
05K4873 |
Type: |
Port Replicator |
SKU: |
16587 |
Compatible With: |
IBM ThinkPad 380Z |
Compatible With 2: |
IBM ThinkPad 560Z |
Compatible With 3: |
IBM ThinkPad 390, 390X Series |
Connector Types: |
USB, VGA (DB-15), Serial (DB-9), Parallel (DB-25), RJ-45, RJ-11, Audio In/Out, Game Port |
Interface: |
Proprietary ThinkPad Expansion Connector |
Network: |
Advanced EtherJet (10/100 LAN via RJ-45) |
Locking Mechanism: |
One-Step Locking |
Includes Floppy Drive Bay: |
Yes |
Form Factor: |
Desktop / Docking Base |
Country/Region of Manufacture: |
Japan |
Seller Notes: |
Port replicator only — no power adapter, cables, or ThinkPad laptop included. |
Condition Notes: |
This IBM 05K4873 ThinkPad Port Replicator is in good used condition, pulled from a working environment. Shows normal cosmetic wear. Not bench-tested at our facility. Please view photos and contact us with questions. |
