Description
Hubbell 231A NEMA L20-20P 20A 347/600V 3-Phase Y Twist-Lock Male Plug
The Hubbell 231A is a NEMA L20-20P rated locking male plug designed for 3-phase Y (Wye) power distribution at 347/600V and 20A. Twist-lock plugs of this type engage and lock into a mating receptacle with a simple turn-and-pull action, providing a secure connection that resists accidental disconnection in demanding industrial environments. The unit arrives pre-wired with a multi-conductor cable stub.
Specifications & What's Included
- Manufacturer: Hubbell
- Model: 231A
- NEMA Configuration: L20-20P
- Voltage Rating: 347/600V
- Current Rating: 20A
- Phase: 3-Phase Y (Wye)
- Number of Poles: 3
- Number of Wires: 4 (3 poles + ground)
- Connector Style: Twist-Lock (Turn & Pull)
- Gender: Male (Plug)

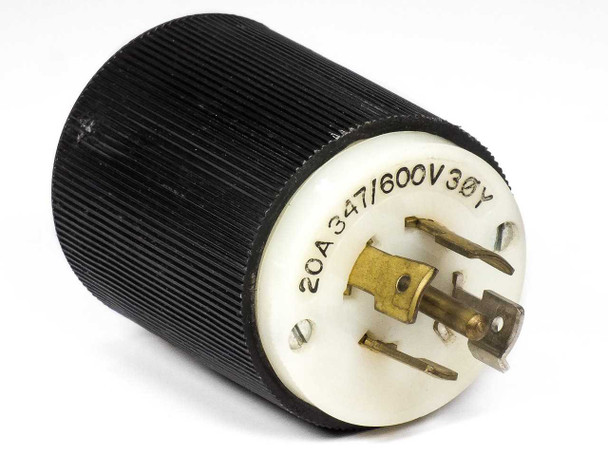

- Body Material: Black ribbed thermoplastic

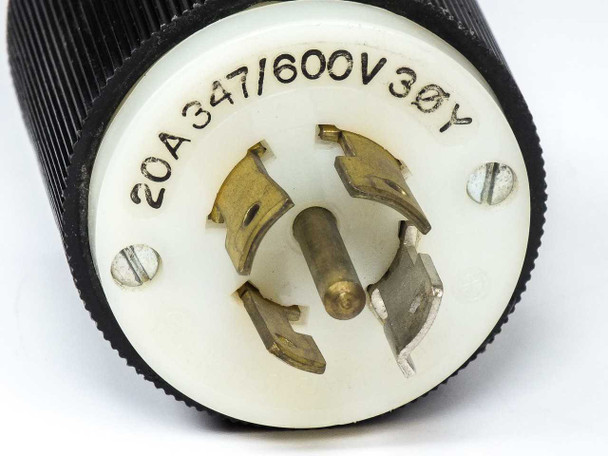

- Contacts: Brass blades and center ground pin

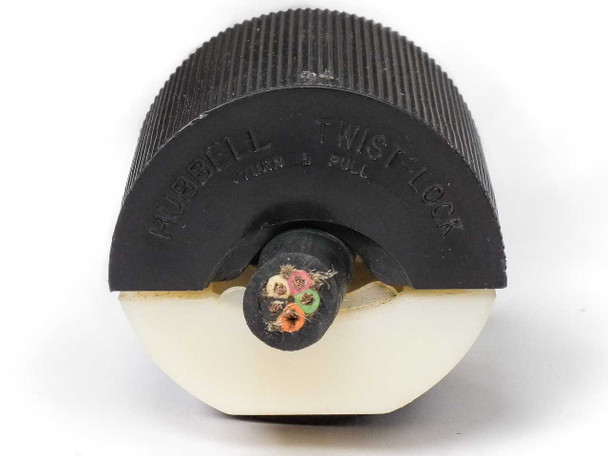

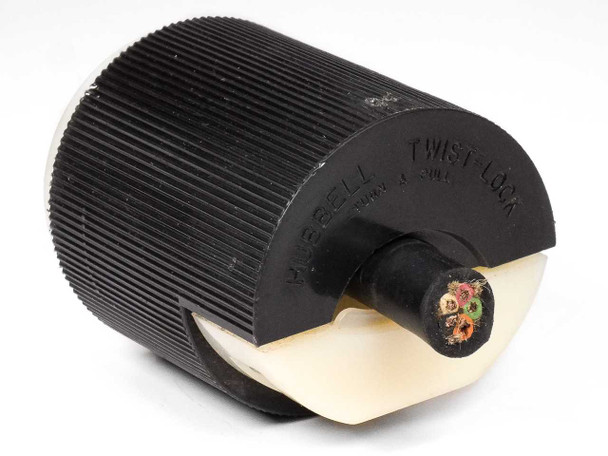

- Pre-Wired: Yes — multi-conductor cable attached
- Included: Plug with attached cable stub only; no mating receptacle
Applications
NEMA L20-20P twist-lock plugs at 347/600V 3-phase are used extensively in Canadian and international industrial facilities, commercial buildings, and data centers where high-voltage 3-phase distribution at the L20 locking standard is employed. The 347/600V Y configuration is the standard Canadian high-voltage distribution voltage and is common in industrial motor loads, HVAC equipment, large lighting circuits, and heavy commercial machinery. The Hubbell Twist-Lock series is a well-established locking plug and receptacle standard used across manufacturing floors, utility distribution panels, and portable equipment connections where a secure, pull-resistant connection is required.
Hubbell 231A NEMA L20-20P 20A 347/600V 3-Phase Y Twist-Lock Male Plug in New / Open Box condition. This item is unused and appears to have never been installed, with original packaging opened or not included. The ribbed black body is intact and free from damage, the brass blades and ground pin are present and in excellent condition, and the attached multi-conductor cable is new and ready for service. Minimal to no cosmetic wear is visible. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Hubbell |
Model: |
231A |
MPN: |
231A |
Type: |
Twist-Lock Male Plug |
SKU: |
50233 |
NEMA Configuration: |
NEMA L20-20P |
Voltage Rating: |
347/600V |
Current Rating: |
20A |
Phase: |
3-Phase |
Wiring Configuration: |
Y (Wye) |
Number of Poles: |
3 |
Number of Wires: |
4 (3P+Ground) |
Connector Style: |
Twist-Lock (Turn & Pull) |
Gender: |
Male (Plug) |
Frequency: |
50/60Hz |
Pre-Wired: |
Yes — multi-conductor cable attached |
Country/Region of Manufacture: |
United States |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Plug only with attached cable stub; no mating receptacle included. |
Condition Notes: |
Hubbell 231A NEMA L20-20P 20A 347/600V 3-Phase Y Twist-Lock Male Plug in New / Open Box condition. This item is unused and appears to have never been installed, with original packaging opened or not included. |
