Description
Hua Yeang HUA-9010-3610/36A High Current Line Filter 3-Phase 440VAC 36A 50/60Hz

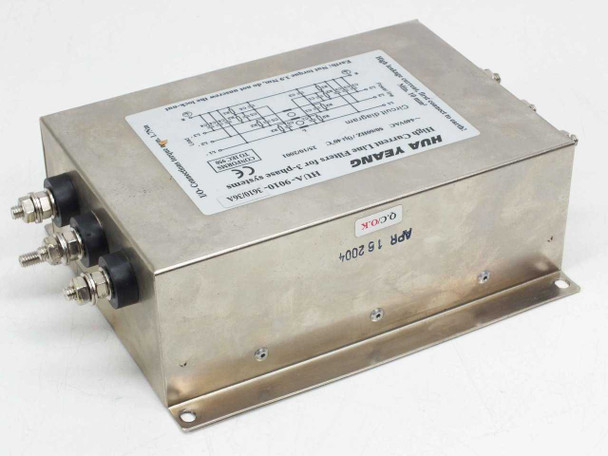

The Hua Yeang HUA-9010-3610/36A is a high current EMI/RFI line filter designed for three-phase power systems. It is built to suppress conducted electromagnetic interference on all three line conductors simultaneously, protecting sensitive equipment from noise on the incoming supply and preventing noise generated by the load from feeding back into the mains. The unit is housed in a robust stainless steel enclosure with bolt-type terminal studs on both ends and a dedicated earth lug.
Specifications & What's Included
- Brand: Hua Yeang
- Model / MPN: HUA-9010-3610/36A
- Type: High Current 3-Phase EMI/RFI Line Filter
- Voltage Rating: 440VAC
- Current Rating: 36A
- Phase: Three Phase (L1, L2, L3 + Earth)
- Frequency: 50/60Hz
- Maximum Operating Temperature: 40°C
- Enclosure: Stainless steel chassis with panel/chassis mounting flanges
- Terminals: Three bolt-type power studs each end (input and output); single earth/ground lug
- Standards Compliance: CE marked; Conforms to IEC 950
- Earth connection note: Minimum 10 mm² earth conductor required; nut torque 3.9 Nm — do not unscrew the lock-nut; I/O connection torque 1.7 Nm
- Date code on rating label: 25/10/2001
- Includes: Filter unit only
Applications
Three-phase high current line filters like the HUA-9010-3610/36A are standard components in industrial power distribution and equipment protection. They are used at the mains input of variable-frequency drives (VFDs), servo drives, CNC machine tool controllers, industrial motor controllers, and other high-power three-phase equipment where conducted EMI suppression is required to meet CE and IEC emissions standards. At 36A and 440VAC, this filter is suited for medium-to-large industrial loads common in manufacturing, semiconductor fab support equipment, and automated production machinery. The filter works by attenuating high-frequency noise components on each phase line through a combination of common-mode and differential-mode LC filter stages — as shown in the circuit diagram printed on the rating label. These filters remain in active, everyday use wherever three-phase powered equipment must comply with IEC or CE electromagnetic compatibility requirements.
This Hua Yeang HUA-9010-3610/36A High Current Line Filter for 3-Phase systems has been inspected and appears to be in good used condition. The stainless steel enclosure is intact with only minor surface scuffs consistent with normal storage and handling. All three power terminal studs and the ground lug are present and undamaged. The rating label is clean and fully legible. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Hua Yeang |
Model: |
HUA-9010-3610/36A |
MPN: |
HUA-9010-3610/36A |
Type: |
High Current 3-Phase EMI/RFI Line Filter |
SKU: |
47332 |
Condition: |
Used – Inspected and in Good Condition |
Seller Notes: |
Unit only; no additional accessories included. |
Voltage Rating: |
440VAC |
Current Rating: |
36A |
Phase: |
Three Phase |
Frequency: |
50/60Hz |
Standards Compliance: |
IEC 950, CE |
Certifications: |
CE, IEC 950 |
Enclosure Material: |
Stainless Steel |
Form Factor: |
Panel/Chassis Mount |
Number of Phases: |
3 |
Power Requirements: |
440VAC, 50/60Hz, 3-Phase |
Date Code: |
25/10/2001 |
Country/Region of Manufacture: |
Taiwan |
Condition Notes: |
Hua Yeang HUA-9010-3610/36A 3-Phase Line Filter inspected and in good used condition. Stainless steel enclosure shows minor surface scuffs. All terminal studs and ground lug intact. Rating label clean and legible. |
