HP RG5-3560 Paper Input PCA Card LaserJet 5000 5000N 5000GN RH10752 Rev A

HP RG5-3560 Paper Input PCA Card LaserJet 5000 5000N 5000GN RH10752 Rev A

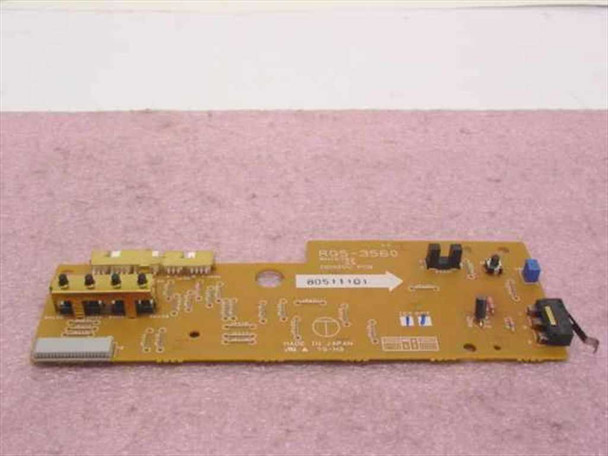

The HP RG5-3560 is the Paper Input PCA (Printed Circuit Assembly) card for the HP LaserJet 5000 series laser printers, including the 5000, 5000N, and 5000GN models. This elongated PCB handles paper sensing and input-tray control functions, communicating between the printer's paper feed mechanisms and the main controller. It carries reference number RH10752 and was manufactured in Japan by Densou PCB.

Specifications & What's Included

• HP Part Number: RG5-3560
• Reference / Secondary Part Number: RH10752
• PCB Revision: Rev A (designation 1-1)
• PCB Manufacturer: Densou PCB, Made in Japan
• Board Type: Paper Input PCA (Printed Circuit Assembly)
• Compatible Printers: HP LaserJet 5000, 5000N, 5000GN
• Left edge: flat/ribbon cable connector for paper feed assembly
• Multiple small connectors for sensors and actuators
• Blue electrolytic capacitor and black relay/solenoid driver components visible on component side
• Right side: larger multi-pin black connector block
• PCA card only — no cables or mounting hardware included

Applications

The HP LaserJet 5000 series are high-volume monochrome laser printers introduced by HP in the late 1990s, designed for demanding office and workgroup environments. The Paper Input PCA card manages paper path sensing — detecting tray presence, paper feed status, and sensor signals from the paper input assembly — and relaying that data to the printer's main logic board. Replacement of this card is a common repair for LaserJet 5000 printers exhibiting paper jam errors, paper detection failures, or input-tray faults. The 5000 series remained in wide service well into the 2000s and replacement PCAs like this are sought by service technicians and organizations maintaining legacy HP laser printer fleets.
