HP

HP ProCurve J4111A 5064-9966 10/100Base-T 8-Port Module Switch 4000M

(No reviews yet) Write a Review
SKU:
49959
MPN:
5064-9966
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

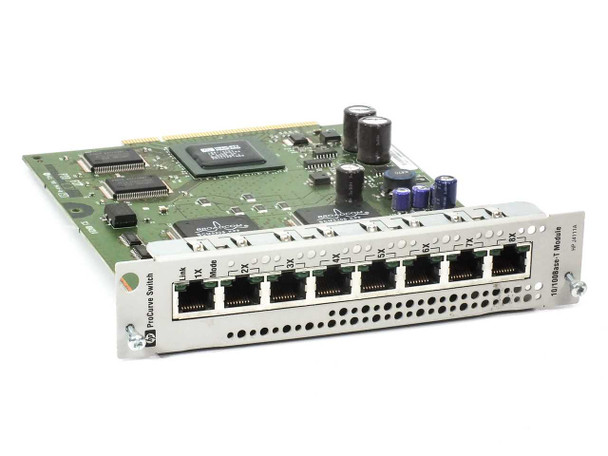

  • HP ProCurve J4111A 5064-9966 10/100Base-T 8-Port Module – front panel with RJ-45 ports and faceplate, angled view

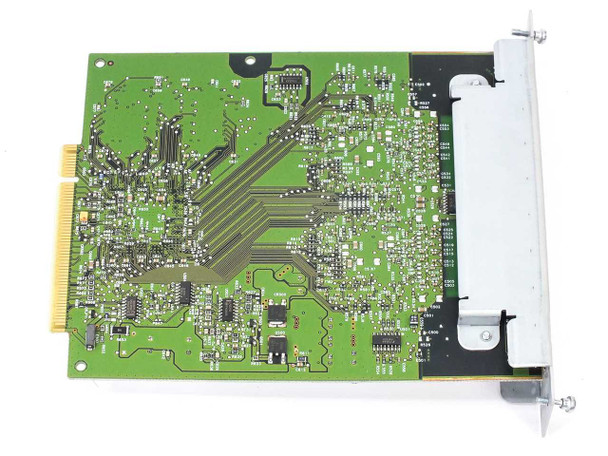

  • HP ProCurve J4111A 10/100Base-T Module – PCB rear/underside showing edge connector and board layout

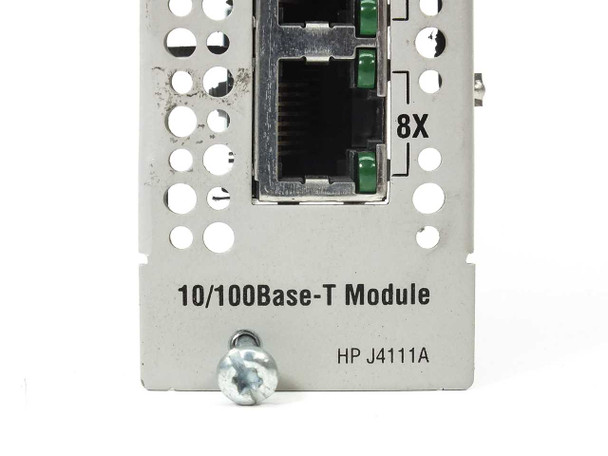

  • HP J4111A faceplate close-up showing 8X port label and '10/100Base-T Module HP J4111A' text

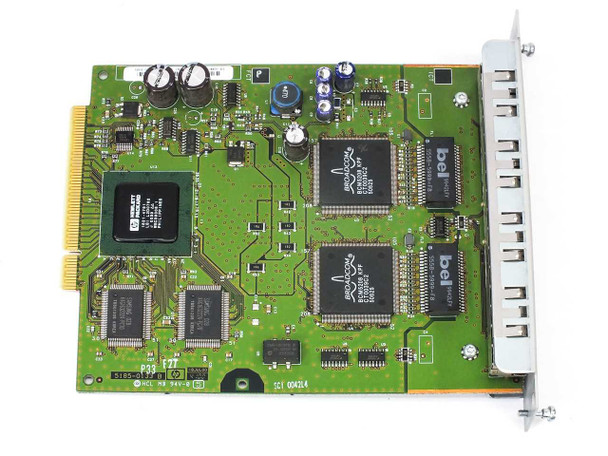

  • HP ProCurve J4111A PCB top view showing main controller chip, Bel transformers, and Seeq network ICs

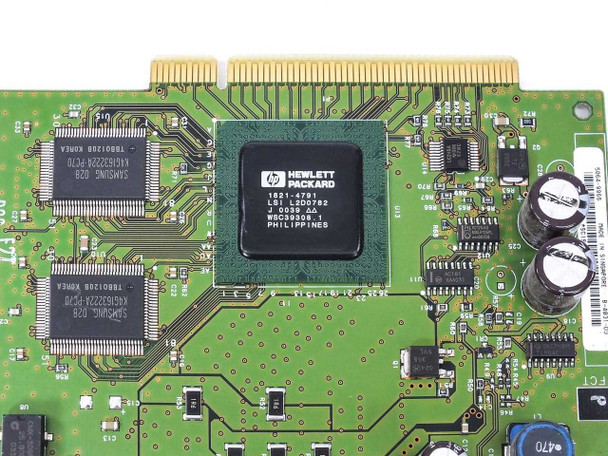

  • HP ProCurve J4111A close-up of Hewlett-Packard 1821-4791 main controller chip (LSI, Philippines)

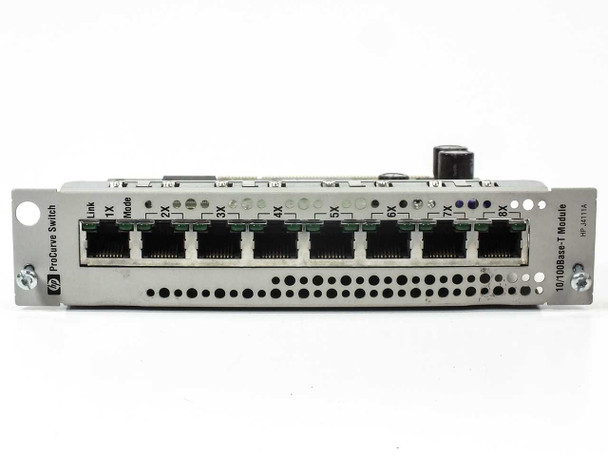

  • HP ProCurve J4111A 5064-9966 – full front panel view showing all 8 RJ-45 ports numbered 1X–8X with Link/Mode LEDs
$30.00
Was: $60.00
Current Stock: 5

Sold Out

Description

HP ProCurve J4111A 5064-9966 10/100Base-T 8-Port Module Switch 4000M

This is an 8-port expansion module for the HP ProCurve Switch 4000M. It adds Fast Ethernet connectivity to the switch chassis via RJ-45 connectors at 10/100 Mbps port speeds.

Specifications & What's Included

  • Model: HP ProCurve J4111A (MPN 5064-9966)
  • Type: 10/100Base-T Expansion Module
  • Ports: 8 × RJ-45
  • Port Speed: 10/100 Mbps
  • Compatible With: HP ProCurve Switch 4000M
  • Form Factor: Module / Expansion Card
  • Manufactured: Philippines

Applications

This module type was used in enterprise and data center environments to expand port density on the ProCurve 4000M switch platform. It provides additional Fast Ethernet access points for departmental networks and server connections. The module slots directly into the 4000M chassis, making it a common upgrade component for legacy HP managed switch deployments.

Condition: Used
This HP ProCurve J4111A 10/100Base-T 8-Port Expansion Module has been inspected and is in good used condition. It was pulled from a working cabinet. The faceplate and RJ-45 ports appear clean with no broken tabs visible; the PCB shows normal handling marks consistent with installation and removal from a live chassis. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
HP (Hewlett-Packard)
Model:
J4111A
MPN:
5064-9966
Secondary Model:
5064-9966
SKU:
49959
Type:
10/100Base-T Expansion Module
Compatible With:
HP ProCurve Switch 4000M
Number of Ports:
8
Port Speed:
10/100 Mbps
Interface Type:
10/100Base-T
Connector Type:
RJ-45
Form Factor:
Module / Expansion Card
Network Technology:
Ethernet, Fast Ethernet
Condition:
Used – Pulled from Working Environment
Seller Notes:
Module only; pulled from a working cabinet and inspected.
Country/Region of Manufacture:
Philippines
Condition Notes:
HP ProCurve J4111A 10/100Base-T 8-Port Module. Inspected, in good used condition. Pulled from a working cabinet. Faceplate and RJ-45 ports are clean. Normal handling marks on PCB.
View AllClose
