HP J3100A AdvanceStack Switch 2000 J3191A J3102A J3109A J3136A Modules

(No reviews yet) Write a Review
SKU:
17718
MPN:
J3100A
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
33.00 LBS
Shipping:
Calculated at Checkout
  • HP J3100A AdvanceStack Switch 2000 – three-quarter front view showing populated module bays and power supply
  • HP J3100A AdvanceStack Switch 2000 – front face view showing module labels including J3191A and J3102A
  • HP J3100A AdvanceStack Switch 2000 – rear panel view showing J3136A redundant power supply label and AC inlet

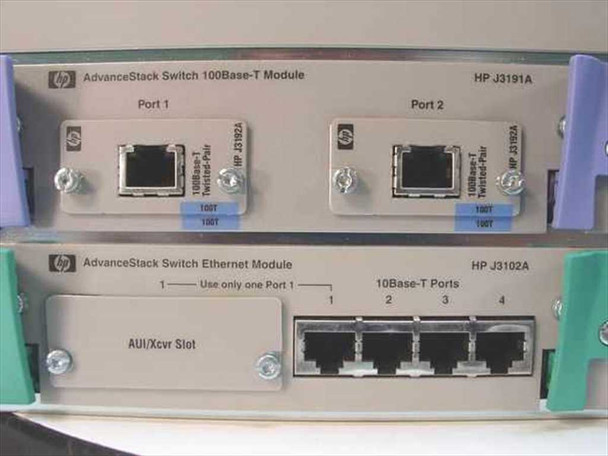

  • HP J3191A 100Base-T 2-Port module and HP J3102A 4-Port 10Base-T Ethernet module – close-up of RJ-45 ports
  • HP J3109A 4-Port 10Base-FL fiber module and HP J3191A 100Base-T module – close-up showing fiber and RJ-45 ports
  • HP J3102A AdvanceStack Switch Ethernet Module – close-up showing AUI/Xcvr slot and four 10Base-T RJ-45 ports

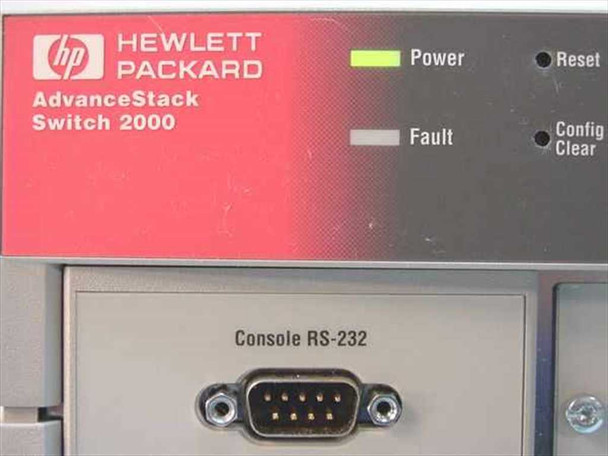

  • HP AdvanceStack Switch 2000 front panel detail – Power and Fault LEDs, Reset button, Console RS-232 DB-9 port

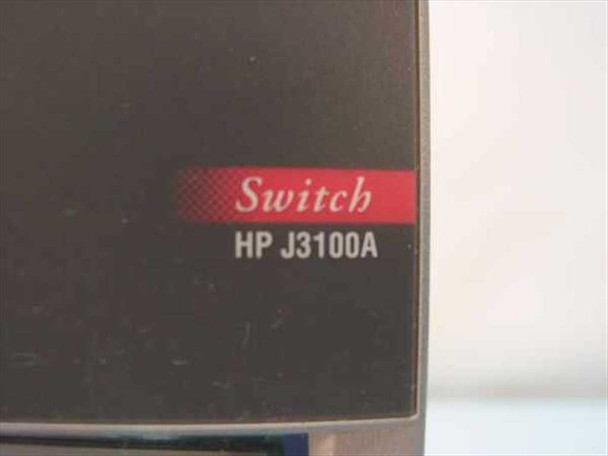

  • HP J3100A switch label close-up showing model number on chassis
  • HP J3136A Redundant Power Supply label – showing 100-127V / 200-240V ratings, UL, CSA, CE, TUV certifications
$250.00
Was: $500.00
Current Stock: 1

Sold Out

Description

HP J3100A AdvanceStack Switch 2000 J3191A J3102A J3109A J3136A Modules

Modular managed Ethernet switch designed for small to mid-size network deployments. The J3100A chassis accepts up to five modules and supports mixed 10 Mbps and 100 Mbps connectivity through copper and fiber interfaces.

Specifications & What's Included

  • Chassis: HP J3100A AdvanceStack Switch 2000
  • Modules: J3109A (4-port 10Base-FL fiber), x2 J3191A (2-port 100Base-T), x2 J3102A (4-port 10Base-T)
  • Redundant Power Supply: J3136A
  • Total Ports: 20 ports across multiple interface types
  • Management: Managed switch with RS-232 console (DB-9)
  • Power: 100-127V or 200-240V, 50/60Hz
  • Standards: IEEE 802.3, 802.3u

Applications

AdvanceStack switches were deployed in enterprise and campus network environments during the late 1990s and early 2000s. The modular design allowed administrators to configure mixed media connectivity for legacy 10Base-T Ethernet segments alongside faster 100Base-T workgroups and fiber backbone links. These units were commonly used to consolidate departmental networks and support heterogeneous cabling infrastructures.

Condition: Used
This HP J3100A AdvanceStack Switch 2000 modular network switch has been inspected and is in good used condition. The chassis is clean with typical light surface wear consistent with prior rack or bench use. All five module bays are populated: one J3109A 4-Port 10Base-FL fiber module, two J3191A 2-Port 100Base-T modules, two J3102A 4-Port 10Base-T Ethernet modules, and the J3136A Redundant Power Supply are all present and seated. The front panel Power LED, Fault indicator, Reset button, Config Clear button, and Console RS-232 port are all intact and undamaged. The rear power supply label is clean and legible. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Hewlett-Packard
Model:
J3100A
MPN:
J3100A
Type:
Modular Ethernet Switch
SKU:
17718
Seller Notes:
Includes J3109A, x2 J3191A, x2 J3102A modules, J3136A redundant PSU
Country/Region of Manufacture:
United States
Form Factor:
Desktop / Standalone Chassis
Power Requirements:
100-127V 50/60Hz 2.5A; 200-240V 50/60Hz 1.5A
Management Type:
Managed
Console Interface:
RS-232 (DB-9)
Number of Module Slots:
5
Included Module 1:
HP J3109A 4-Port 10Base-FL (fiber) Module
Included Module 2:
HP J3191A 2-Port 100Base-T Module (x2)
Included Module 3:
HP J3102A 4-Port 10Base-T Ethernet Module (x2)
Included Power Supply:
HP J3136A Redundant Power Supply
Network Speed:
10 Mbps / 100 Mbps
Interface Type:
10Base-T, 100Base-T, 10Base-FL
Connector Type:
RJ-45, ST/SC fiber, DB-9 console
Standards:
IEEE 802.3, 802.3u
Product Family:
AdvanceStack Switch 2000
Condition:
Used – Inspected and in Good Condition
Condition Notes:
HP J3100A AdvanceStack Switch 2000 inspected and in good used condition. All modules present: J3109A, x2 J3191A, x2 J3102A, J3136A redundant PSU. Clean chassis with normal light wear. Please view photos and contact us with questions.
View AllClose

Related Products

Related Products

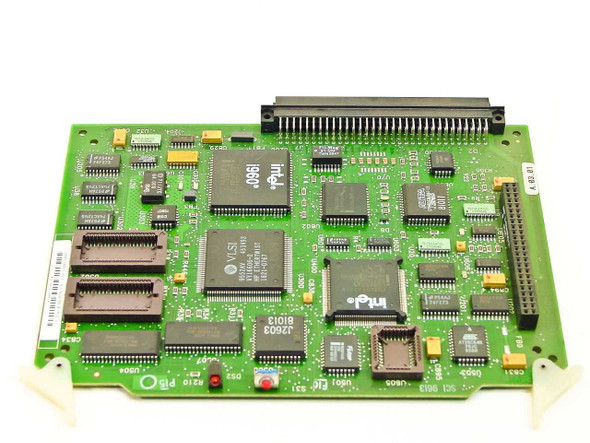

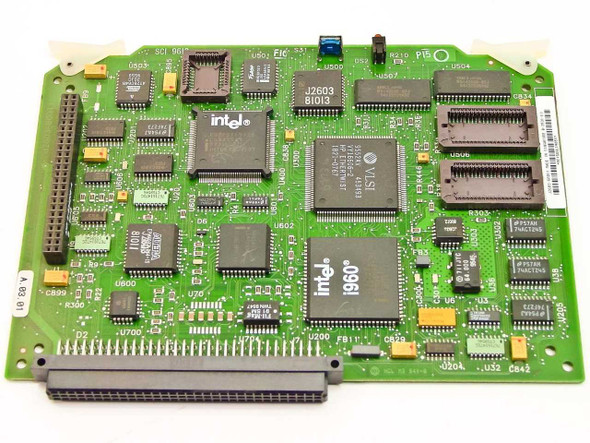

HP J2603-60011 AdvanceStack NET/SNMP Module – top component side showing Intel i960 and VLSI processors HP J2603-60011 AdvanceStack Module – reverse top-side view showing Intel i960, VLSI, and memory sockets
