Description
HP J2552-60003 JetDirect 10Base-T 10Base-2 BNC LocalTalk II Printer Network Card
The HP J2552-60003 is a JetDirect internal print server card that adds direct network connectivity to compatible HP LaserJet printers. It provides three independent network interfaces on a single card: 10Base-T Ethernet via RJ-45, 10Base-2 Ethernet via BNC, and Apple LocalTalk II via a DIN-8 connector — allowing the printer to serve users simultaneously across Ethernet and LocalTalk networks without a separate print server appliance.
Specifications & What's Included
- Part Number: J2552-60003
- Type: HP JetDirect internal printer network interface card
- Network Interface 1: 10Base-T Ethernet — RJ-45 connector
- Network Interface 2: 10Base-2 Ethernet — BNC connector
- Network Interface 3: Apple LocalTalk II — DIN-8 round connector
- Ethernet speed: 10 Mbps
- Supported protocols: TCP/IP, IPX/SPX, AppleTalk/LocalTalk
- Form factor: JetDirect internal card / module
- Country of manufacture: Singapore
- Included: Card only — no cables or accessories
Applications
HP JetDirect internal cards were designed to plug directly into a dedicated expansion slot found in HP LaserJet and some other HP printer models from the late 1980s through the 2000s. Rather than connecting a printer to a single workstation via a parallel or serial cable, a JetDirect card gives the printer its own network address and allows any computer on the LAN to print to it directly — a setup that was central to office networking before wireless printing existed. The J2552-60003's combination of 10Base-T, 10Base-2 BNC, and LocalTalk II made it particularly flexible in mixed-OS office environments of the 1990s, where Windows/DOS machines shared coax or twisted-pair Ethernet alongside Macintosh workstations running AppleTalk. This card dates from the mid-1990s era when 10 Mbps shared Ethernet was the office standard and Apple LocalTalk was still widely deployed in Mac-heavy environments. Today these cards are sought by vintage network enthusiasts, legacy HP LaserJet maintainers, and anyone keeping older HP printers operational on a period-correct network.

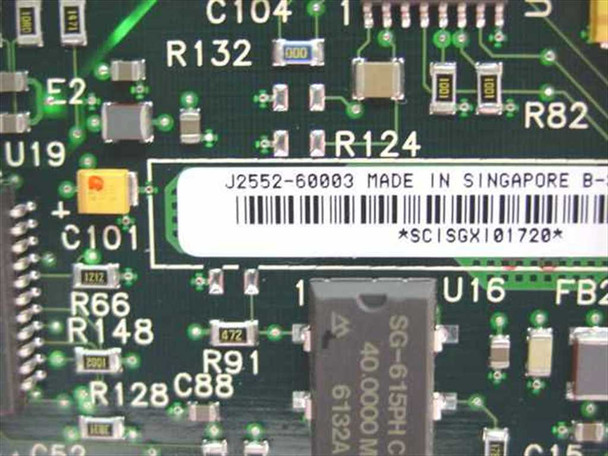

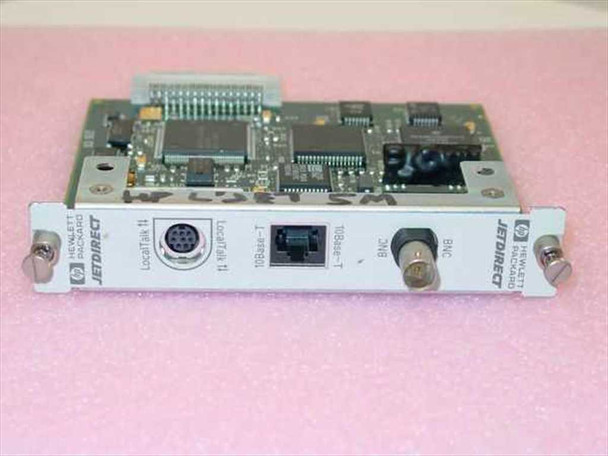

This HP J2552-60003 JetDirect printer network card has been inspected and appears to be in good used condition. The PCB is clean with no visible damage, and all three interface ports on the bracket — 10Base-T RJ-45, 10Base-2 BNC, and LocalTalk II — look intact and undamaged. The card shows only light handling wear typical of removed expansion cards. It has not been bench-tested at our facility but came from a working environment where it was previously in use. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
HP |
Model: |
J2552-60003 |
MPN: |
J2552-60003 |
Type: |
Printer Network Interface Card (NIC) |
SKU: |
14170 |
Seller Notes: |
Card only — no cables or accessories included. |
Country/Region of Manufacture: |
Singapore |
Form Factor: |
Card / Module |
Compatible With: |
HP LaserJet printers with JetDirect slot |
Interface Type: |
10Base-T (RJ-45), 10Base-2 (BNC), LocalTalk II (DIN-8) |
Network Connectivity: |
Ethernet 10Base-T, Ethernet 10Base-2, Apple LocalTalk |
Connector Type: |
RJ-45, BNC, DIN-8 |
Data Rate: |
10 Mbps (Ethernet); LocalTalk ~230 Kbps |
Protocol: |
TCP/IP, IPX/SPX, Apple LocalTalk/AppleTalk |
Number of Ports: |
3 (10Base-T RJ-45, 10Base-2 BNC, LocalTalk II DIN-8) |
Management Type: |
Managed — HP JetDirect firmware |
Condition Notes: |
This HP J2552-60003 JetDirect printer network card has been inspected and is in good used condition. PCB is clean; all three ports (10Base-T, BNC, LocalTalk II) appear intact. Not bench-tested at our facility; pulled from a working environment. |
