Description
HP J2382B JetDirect EX External Print Server BNC 10Base-T RJ45 Parallel J2382-60003
The HP J2382B JetDirect EX is an external multi-protocol print server that connects a parallel-port printer directly to an Ethernet network. It supports both 10Base-2 (BNC coax thin Ethernet) and 10Base-T (RJ45 twisted-pair) connections simultaneously, allowing the printer to be shared across multiple network protocols without a dedicated PC acting as a print host. Part number J2382-60003 is confirmed on the bottom label.
Specifications & What's Included
- Model: J2382B
- Part Number: J2382-60003
- Series: HP JetDirect EX
- Network Interfaces: BNC (10Base-2 coax) and RJ45 (10Base-T) — both present on rear panel
- Printer Interface: DB25 parallel (Centronics-compatible)
- Network Protocol Support: Multi-protocol (TCP/IP, Novell NetWare IPX/SPX, AppleTalk/EtherTalk)
- Form Factor: Desktop external unit

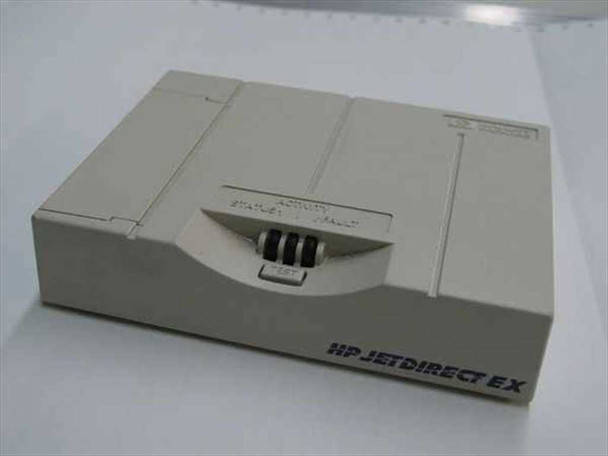

- Front Panel: DIP switch bank and status indicator label
- Certifications: UL Listed I.T.E. (34J0), CSA (LR55157C)
- Unit only — no power adapter or network/printer cables included unless shown in photos
Applications
The HP JetDirect EX series was introduced in the early-to-mid 1990s to solve a common problem in offices migrating to networked printing: parallel-port printers had no built-in network interface, requiring either a dedicated PC spooler or an external device like this one. The J2382B plugs directly into the printer's parallel port and onto the Ethernet segment, making the printer a true network node addressable by IP, IPX, or AppleTalk. The dual BNC/RJ45 design was practical during the transition from 10Base-2 coaxial cabling to structured 10Base-T wiring — a network could have both cable types running simultaneously, and the JetDirect EX bridged them without a separate hub tap. These units were widely deployed with HP LaserJet printers in small business and enterprise environments running Novell NetWare, early Windows NT/2000, and Mac networks. Today they remain useful in legacy lab and industrial settings where an older parallel-port printer needs to serve a small network without a print-spooler PC.
This HP J2382B JetDirect EX external print server has been inspected and appears to be in good used condition. The housing shows light surface wear consistent with normal office use. The rear-panel connectors — BNC, RJ45, and DB25 parallel — are intact and undamaged. The DIP switches on the top are present. No power adapter or cables are included unless visible in our photos. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
HP (Hewlett-Packard) |
Model: |
J2382B |
MPN: |
J2382-60003 |
Secondary Model: |
J2382-60003 |
Type: |
External Print Server |
SKU: |
7702 |
Series: |
JetDirect EX |
Interface Type: |
BNC (10Base-2 Coax), 10Base-T RJ45, Parallel |
Network Protocol: |
Multi-Protocol Ethernet |
Connector Types: |
BNC, RJ45, DB25 Parallel |
Printer Interface: |
Parallel (Centronics DB25) |
Network Standard: |
10Base-T, 10Base-2 |
Form Factor: |
Desktop / External |
Certifications: |
UL Listed (I.T.E. 34J0), CSA (LR55157C) |
Condition: |
Used – Inspected |
Seller Notes: |
Unit only; no power adapter or cables included unless shown in photos. |
Country/Region of Manufacture: |
United States |
Compatible With: |
HP LaserJet and compatible parallel-port printers |
Compatible With 2: |
Novell NetWare, TCP/IP, AppleTalk networks |
Condition Notes: |
HP J2382B JetDirect EX external print server. Inspected, in good used condition. Light surface wear. BNC, RJ45, and parallel connectors intact. No power adapter or cables included unless shown in photos. |
