HP Hewlett Packard 3325A Synthesizer Function Generator OPT-001 GPIB Rackmount
Synthesizer/function generator producing waveforms from 0.001 Hz to 21 MHz with GPIB control interface. Generates sine, square, triangle, ramp, and DC offset outputs with sweep, modulation, and external reference capabilities.
Specifications & What's Included
- Frequency Range: 0.001 Hz to 21 MHz
- Output Functions: Sine, Square, Triangle, Ramp, DC Offset
- OPT-001 High Stability Oven Reference installed; 10 MHz output at 0 dBm
- Modulation: AM, FM, Phase Modulation
- Sweep Modes: Linear, Log
- Interface: GPIB (HP-IB) with rear signal, auxiliary, sync, and reference outputs
- External Reference Input: 1–10 MHz, 0 dBm
- 3U Rackmount form factor; Red LED display
- Dual voltage: 100/120V or 220/240V AC, 50/60Hz
Applications
The 3325A was widely used in test and measurement labs for signal generation, frequency synthesis, and automated equipment control via GPIB. Common in telecommunications, component testing, and RF/analog circuit development. Compatible with HP test systems and legacy automated test equipment (ATE) platforms.
Condition: Used

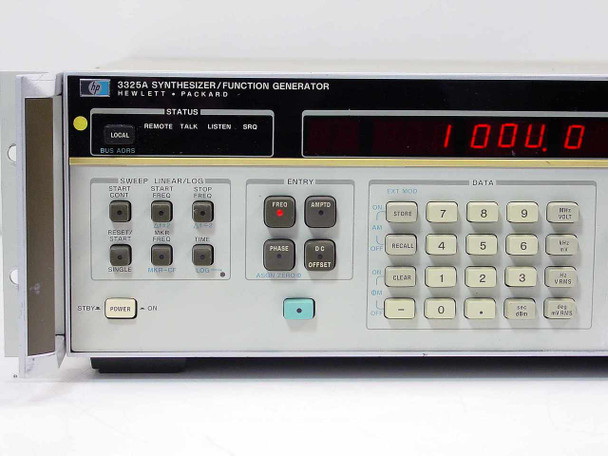

This Hewlett-Packard 3325A Synthesizer/Function Generator has been inspected and appears to be in good used condition. The unit includes OPT-001, the High Stability Oven Reference option. The front panel controls, keypad, and LED display appear intact and show normal wear consistent with lab use. The chassis shows light surface scuffing and minor cosmetic wear on the case and rack ears typical of a used benchtop instrument. Rear BNC outputs, the GPIB connector, and power inlet appear undamaged. It has not been powered up or tested at our facility, but was pulled from a working environment. Please view our photo set and contact us if you have any questions.
This Hewlett-Packard 3325A Synthesizer/Function Generator has been inspected and appears to be in good used condition. The unit includes OPT-001, the High Stability Oven Reference option. The front panel controls, keypad, and LED display appear intact and show normal wear consistent with lab use. The chassis shows light surface scuffing and minor cosmetic wear on the case and rack ears typical of a used benchtop instrument. Rear BNC outputs, the GPIB connector, and power inlet appear undamaged. It has not been powered up or tested at our facility, but was pulled from a working environment. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Hewlett-Packard |
Model: |
3325A |
MPN: |
3325A |
Type: |
Synthesizer / Function Generator |
SKU: |
15957 |
Options Installed: |
OPT-001 High Stability Oven Reference |
Frequency Range: |
0.001 Hz to 21 MHz |
Output Functions: |
Sine, Square, Triangle, Ramp, DC Offset |
Interface: |
GPIB (HP-IB) |
Rear Outputs: |
Signal, AUX, Sync Out, Marker TTL, X Drive, Z Blank, Ref Out |
External Reference Input: |
Ext Ref In 1-10 MHz, 0 dBm |
10 MHz Oven Output: |
0 dBm (OPT-001) |
Sweep Modes: |
Linear, Log |
Modulation: |
AM, FM, Phase Modulation |
Phase Modulation Input: |
Phase Mod 75V |
Amplitude Modulation Input: |
AMPTD MOD 75V |
Power Requirements: |
100/120V or 220/240V AC, 50/60Hz |
Form Factor: |
Rackmount, Benchtop — 3U |
Front Panel Display: |
Red LED numeric display |
Country/Region of Manufacture: |
United States |
Condition: |
Used – Inspected |
Seller Notes: |
Includes OPT-001 High Stability Oven Reference; unit only, no accessories |
Review Status: |
Auto-Approved (needs review) 2026-07-04 |
Condition Notes: |
HP 3325A Synthesizer/Function Generator with OPT-001 High Stability Oven Reference. Good used condition with normal lab wear. Not powered at our facility; pulled from a working environment. Please contact us with any questions. |
