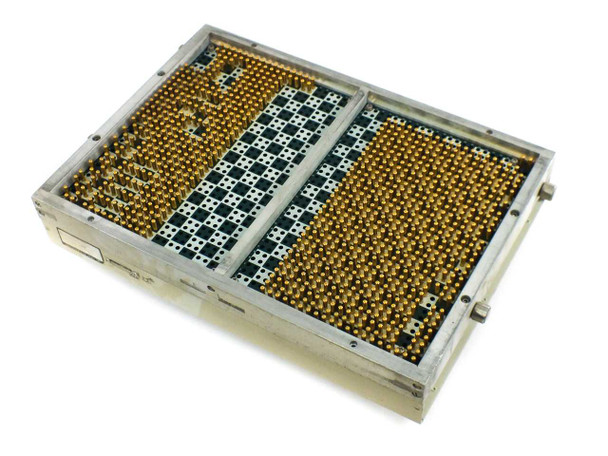

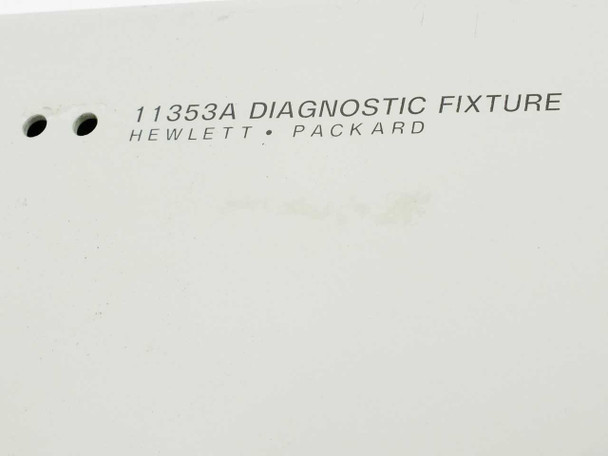

HP Hewlett Packard 11453B 11353A Diagnostic Fixture Gold Pins Test Board
Diagnostic test fixture designed for in-circuit board testing and logic analyzer diagnostics. Features a dual-section gold pin matrix array with four front-panel calibration controls (SHORT, 0.5V, 10V, 1kΩ).
Specifications & What's Included
- Model: 11453B / 11353A
- Type: Diagnostic Test Fixture with gold pin contacts
- Calibration Controls: SHORT, 0.5V, 10V, 1kΩ
- Enclosure: Aluminum with hinged clamshell lid and carry handle
- Latch: Two rotating cam-lock knobs
- Form Factor: Benchtop / Portable
- Manufactured: United States
Applications
This fixture was used with HP logic analyzers and in-circuit test systems for board-level diagnostics and troubleshooting. The gold pin matrix allowed connection to test points on PCBs for signal verification and logic state measurement. Common in electronics service labs and manufacturing test environments.
Condition: Used
This Hewlett-Packard 11453B / 11353A Diagnostic Fixture has been inspected and is in good used condition. The aluminum enclosure shows typical wear for its age — light scuffing on the outer panels and some worn areas along the front edge and cam-lock trim. A red property/asset tag is visible on the front left panel. The gold pin matrix inside appears intact across both sections with no obviously missing or bent pins visible in photos. The four calibration knobs (SHORT, 0.5V, 10V, 1kΩ) are present and intact. Please view our photo set and contact us if you have any questions.
