Hewlett Packard

HP Hewlett Packard H424A Crystal Detector WR-112 Waveguide BNC 7.05-10.0 GHz

(No reviews yet) Write a Review
SKU:
33301
MPN:
H424A
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
0.95 LBS
Shipping:
Calculated at Checkout
  • HP Hewlett Packard H424A Crystal Detector – angled three-quarter view showing body, BNC output port, and blue WR-112 flange base

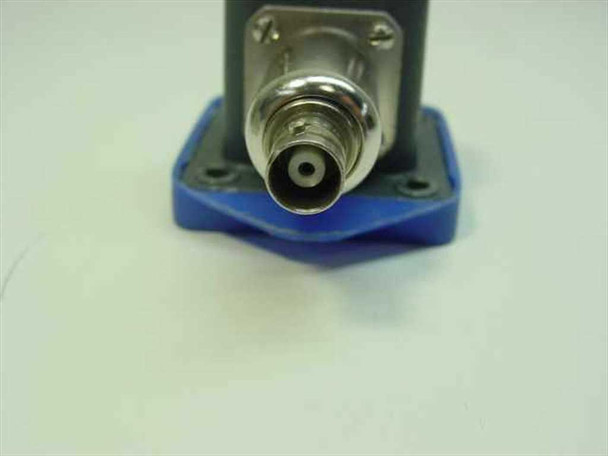

  • HP H424A Crystal Detector – close-up front view of BNC output connector on blue flange mount
  • HP H424A Crystal Detector – bottom view of WR-112 waveguide flange opening showing rectangular waveguide aperture and four mounting holes
  • HP H424A Crystal Detector – label detail reading 'Crystal Detector Model H424A (NEG) U.S. Patent Pending Hewlett Packard Made in U.S.A.'
$65.00
Was: $125.00
Current Stock: 1

Sold Out

Description

HP Hewlett Packard H424A Crystal Detector WR-112 Waveguide BNC 7.05-10.0 GHz X-Band

A waveguide-mounted crystal detector for X-Band microwave applications. This detector converts RF signals to measurable DC output via a semiconductor crystal element, used for signal detection and measurement in radar and communication systems.

Specifications & What's Included

  • Model: H424A
  • Frequency Range: 7.05 to 10.0 GHz (X-Band)
  • Waveguide: WR-112 Standard Flange
  • Output Connector: BNC
  • Detector Polarity: Negative
  • Manufacturer: Hewlett-Packard, USA
  • Includes blue protective flange cover

Applications

Crystal detectors like the H424A were used in radar systems, test equipment, and microwave communication platforms for signal detection and power measurement. The WR-112 waveguide and X-Band frequency range make this compatible with legacy and industrial RF measurement setups from the 1970s through 1990s.

Condition: Used
This Hewlett Packard H424A Crystal Detector has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The body shows typical surface wear consistent with bench or lab use, and the WR-112 waveguide flange face shows light scuffing and minor marks visible in the photos. The BNC output connector is clean and intact. The blue protective plastic flange mount/cover is present. The label is fully legible, confirming model H424A (NEG). Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Hewlett-Packard
Model:
H424A
MPN:
H424A
Type:
Waveguide Crystal Detector
SKU:
33301
Frequency Range:
7.05 to 10.0 GHz
Frequency Band:
X-Band
Waveguide Size:
WR-112
Output Connector:
BNC
Detector Polarity:
Negative (NEG)
Flange Type:
WR-112 Standard Flange
Form Factor:
Waveguide-Mounted Module
Country/Region of Manufacture:
United States
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes blue protective flange cover. Pulled from a working environment.
Condition Notes:
HP H424A Crystal Detector in good used condition. Pulled from a working environment. Body shows typical wear; BNC connector and WR-112 flange are clean and intact. Blue flange cover included. Please contact us with any questions.
View AllClose

Related Products

Related Products

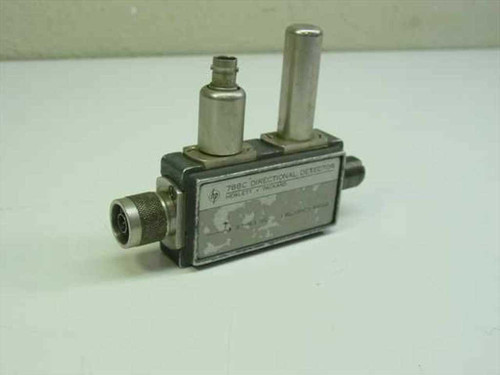

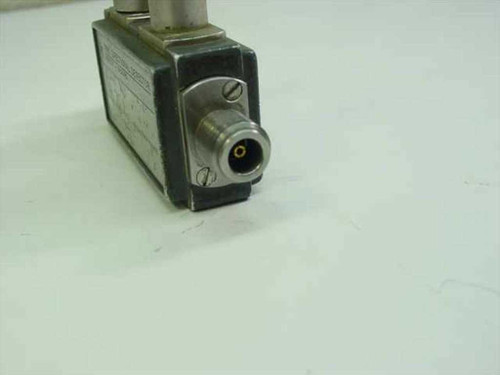

HP 788C Directional Detector front and top view showing HP logo label, two coaxial port stubs on top, and Type N connector on left side HP 788C Directional Detector side view showing Type N male coaxial connector with gold center pin and weathered metal housing
