Description
HP E2071/82341 HP-IB GPIB IEEE-488 16-Bit ISA Interface Card E2073-66501
The Hewlett-Packard E2071/82341 is a 16-bit ISA HP-IB (GPIB / IEEE-488) interface card that connects a PC to HP-IB-equipped test and measurement instruments. It installs in any standard full-length 16-bit ISA slot and provides a single IEEE-488 port via a 24-pin Centronics-style bracket connector, allowing software control of oscilloscopes, signal generators, power supplies, multimeters, and other GPIB-compatible lab instruments from an ISA-bus PC. Part number E2073-66501 is also associated with this card.
Specifications & What's Included
- Manufacturer: Hewlett-Packard (HP)
- Model / Part Number: E2071/82341 (E2071-82341)
- Secondary Part Number: E2073-66501
- Interface Standard: HP-IB / GPIB / IEEE-488
- Bus: 16-Bit ISA (full-length card)

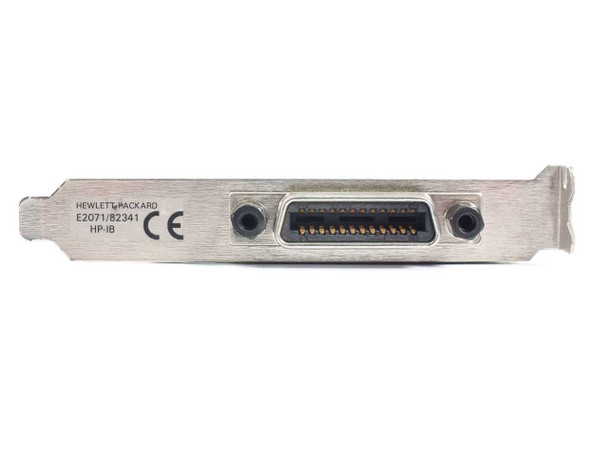

- External Connector: 24-pin Centronics IEEE-488 on rear bracket

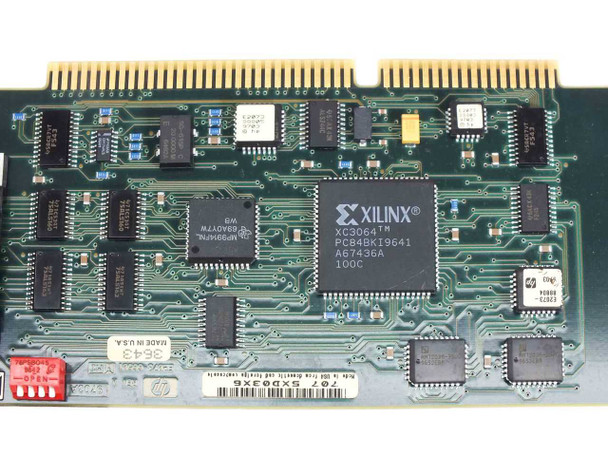

- Main Controller / FPGA: Xilinx XC3064 (PC84BK19641, 100C package)
- Country of Manufacture: USA (marked on PCB)

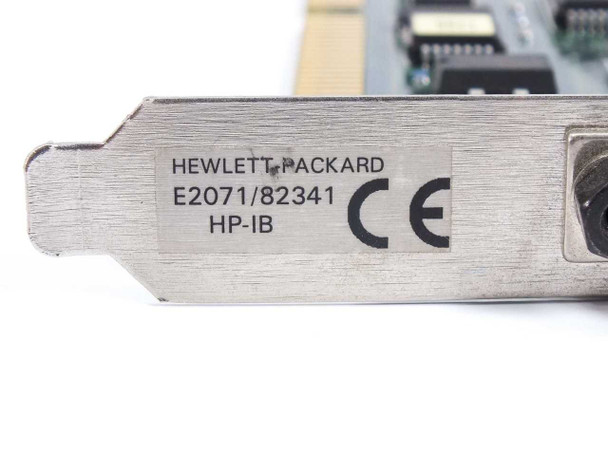

- CE marked (visible on bracket label)
- Includes: card only — no cables, driver media, or documentation
Applications
HP-IB, also marketed as GPIB (General Purpose Interface Bus) and standardized as IEEE-488, was Hewlett-Packard's instrument control bus, introduced in the early 1970s and adopted as an international standard by the late 1970s. ISA-slot GPIB cards like the E2071/82341 were the standard way to add instrument control capability to desktop PCs through the ISA era of the late 1980s and 1990s, enabling automated test systems, production-line calibration rigs, and bench-level data acquisition setups. A PC equipped with this card can address up to 15 GPIB instruments on a single bus and issue commands via SCPI or instrument-specific command sets. These cards remain in demand today for maintaining legacy automated test equipment (ATE) systems, running vintage HP/Agilent instrument setups, and supporting older industrial or defense test environments where ISA-bus PCs are still in service. Compatible instruments include the full range of HP, Agilent, Tektronix, Keithley, and other IEEE-488-equipped test gear.

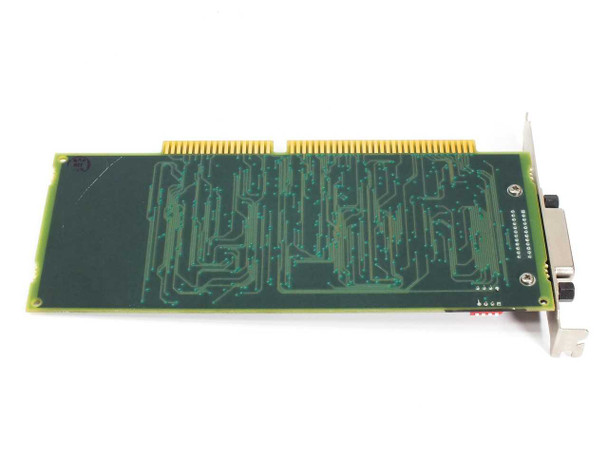

This Hewlett-Packard E2071/82341 HP-IB GPIB IEEE-488 ISA interface card has been inspected and is in good used condition. It was pulled from a working environment where it was previously in use and functional. The PCB is clean with no visible damage; the bracket and IEEE-488 connector show normal wear consistent with installation and removal. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
HP |
Model: |
E2071/82341 |
MPN: |
E2071-82341 |
Secondary Model: |
E2073-66501 |
Type: |
HP-IB / GPIB IEEE-488 ISA Interface Card |
SKU: |
48802 |
Bus Interface: |
16-Bit ISA |
Interface Standard: |
HP-IB / GPIB / IEEE-488 |
Connector Type: |
24-Pin Centronics IEEE-488 |
Main Controller / FPGA: |
Xilinx XC3064 (PC84BK19641) |
Form Factor: |
Full-Length ISA Card |
Country/Region of Manufacture: |
United States |
Compatible With: |
HP/Agilent test instruments, GPIB-compatible lab equipment |
Seller Notes: |
Card only — no cables, drivers, or documentation included. |
Condition Notes: |
This HP E2071/82341 HP-IB GPIB ISA interface card has been inspected and is in good used condition. Pulled from a working environment where it was in use and functional. PCB clean; bracket and connector show normal wear. |
