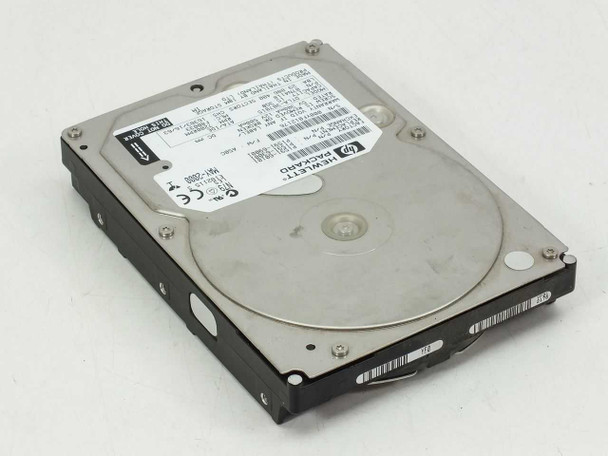

HP DTLA-307015 P1591-60101 15.3GB 3.5" ATA/IDE Desktop Hard Drive 7200RPM
The HP DTLA-307015 is a 3.5-inch internal ATA/IDE desktop hard drive with a 15.3GB capacity and 7200RPM spindle speed. Manufactured by IBM Storage Products for Hewlett-Packard under the Deskstar product line, this drive carries HP factory part number P1591-60101 and IBM internal part number 07N4118. It connects via a standard 40-pin IDE interface and draws power from a standard 4-pin Molex connector.
Specifications & What's Included
- Model: DTLA-307015
- HP Factory P/N: P1591-60101
- HP Replacement P/N: P1591-63001
- HP Exchange P/N: P1591-69001
- IBM Part Number: 07N4118
- MLC: F80033
- Firmware: A50C
- Capacity: 15.3 GB
- Interface: ATA/IDE (40-pin)
- Form Factor: 3.5-inch
- Rotational Speed: 7200 RPM
- LBA: 29,886,400 sectors
- CHS: 16383/16/63
- Power: 5V 300mA, 12V 500mA
- Manufactured: May 2000, by IBM Storage Products (Thailand) Ltd
- Drive only — no IDE cable, power cable, or mounting hardware included
Applications
The DTLA-307015 is an ATA/IDE hard drive from the IBM Deskstar series, produced around 2000 at the transition between ATA-66 and ATA-100 interfaces. Drives of this type were the standard mass storage medium for desktop PCs of the late 1990s and early 2000s, used in home systems, business workstations, and embedded computing platforms built around the IDE standard. Today, drives like this are sought for restoring or maintaining period-correct systems — including vintage PCs, classic workstations, industrial computers, and legacy embedded controllers that require ATA/IDE storage and cannot use modern SATA drives. They are also used in retro computing hobbyist builds, CNC machine controllers, and older laboratory or manufacturing equipment that runs fixed software on IDE-interfaced storage. The 7200RPM spindle speed placed this drive in the performance tier for its era, making it suitable for workstation-class systems requiring faster data throughput than the 5400RPM alternatives of the time.
This HP DTLA-307015 (P1591-60101) 15.3GB ATA/IDE desktop hard drive has been inspected, cleaned, and tested at our facility and is in very good condition. The drive powers up and functions normally. The label and top cover are clean with no significant cosmetic damage. The PCB on the underside is intact with no visible damage to the controller board or connectors. The IDE and power connectors are in good shape. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Hewlett-Packard |
Model: |
DTLA-307015 |
MPN: |
P1591-60101 |
Secondary Model: |
P1591-60101 |
Part Number: |
07N4118 |
Replacement P/N: |
P1591-63001 |
Exchange P/N: |
P1591-69001 |
Type: |
Internal Hard Drive (HDD) |
Storage Capacity: |
15.3 GB |
Interface: |
ATA/IDE |
Form Factor: |
3.5" |
Rotational Speed: |
7200 RPM |
LBA Sectors: |
29,886,400 |
CHS: |
16383/16/63 |
MLC: |
F80033 |
Firmware Version: |
A50C |
Power Requirements: |
5V 300mA, 12V 500mA |
Manufacture Date: |
May 2000 |
Country/Region of Manufacture: |
Thailand |
Manufacturer: |
IBM Storage Products (Thailand) Ltd |
SKU: |
46128 |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Drive only; no cables or mounting hardware included. |
Condition Notes: |
HP DTLA-307015 P1591-60101 15.3GB ATA/IDE hard drive. Inspected, cleaned, and tested — in very good working condition. IDE and power connectors are clean and undamaged. |
