HP D3393-60003 Vectra VL/5 Socket 5 System Board Motherboard Desktop PC

HP D3393-60003 Vectra VL/5 Socket 5 System Board Motherboard Desktop PC

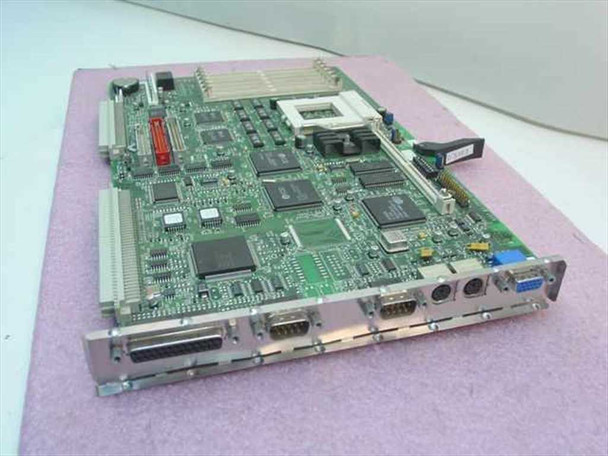

The HP D3393-60003 is the original system board (motherboard) for the HP Vectra VL/5 desktop computer. It uses a Socket 5 CPU socket, designed to accept Intel Pentium processors of the mid-1990s generation. As the core logic board of the Vectra VL/5, it integrates the system chipset, memory slots, I/O controller, and onboard expansion interfaces in HP's proprietary desktop form factor.

Specifications & What's Included

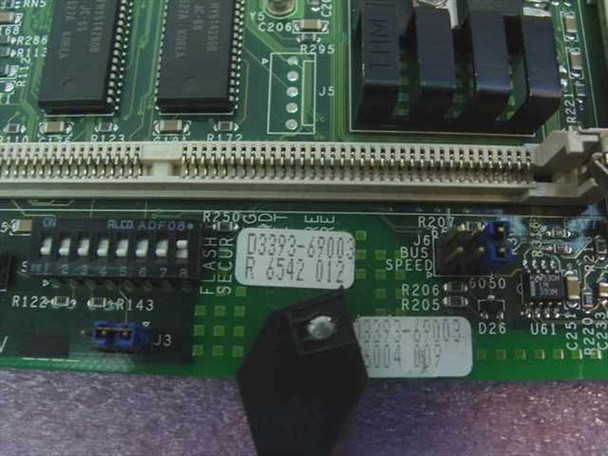

• Manufacturer Part Number: D3393-60003
• Platform: HP Vectra VL/5
• CPU Socket: Socket 5 (Intel Pentium compatible)
• Form Factor: Proprietary HP desktop
• Rear I/O ports: Parallel (DB-25), two serial (DB-9), PS/2 keyboard, PS/2 mouse, VGA
• Expansion slots: Multiple ISA and PCI slots visible on board

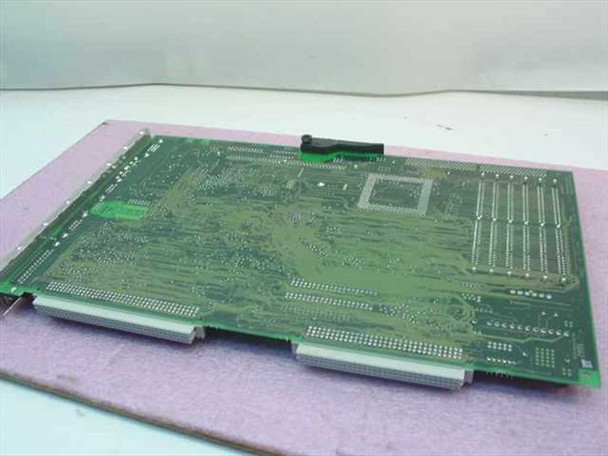

• IDE and floppy drive connectors present on board
• Memory slots: Multiple SIMM sockets visible
• Board only — no CPU, RAM, or cables included

Applications

The HP Vectra VL/5 was part of HP's Vectra business desktop line of the mid-1990s, a series aimed at corporate and institutional buyers running Windows 3.x, Windows 95, and MS-DOS workloads. The VL/5 sat in the value-to-midrange segment of that lineup, powered by first- and second-generation Intel Pentium processors via the Socket 5 interface — the CPU socket standard that preceded Socket 7. Today, this system board is primarily sought by technicians and collectors maintaining legacy HP Vectra systems, as well as those restoring or repairing period-correct mid-1990s desktop PCs. Replacement system boards for proprietary-form-factor machines like the Vectra VL/5 are difficult to source, making this a practical spare for shops supporting older HP desktop infrastructure.
