Description
HP D2035-63021 1.44MB 3.5" Floppy Drive Epson SMD-1340 Hewlett-Packard FDD
The HP D2035-63021 is a 1.44MB 3.5" internal flexible disk drive manufactured by Epson (model SMD-1340) to Hewlett-Packard standards. It uses the standard 34-pin FDD interface and 4-pin Berg power connector common to desktop PCs of its era, making it a direct-fit replacement for HP workstations and compatible systems requiring a 3.5" floppy drive.
Specifications & What's Included
- Part Number: D2035-63021 (HP) / SMD-1340 (Epson OEM)
- Capacity: 1.44 MB (high-density, HD)
- Form Factor: 3.5" internal half-height
- Interface: 34-pin standard PC floppy (FDD) data connector
- Power Connector: 4-pin Berg (standard floppy power)
- Power Requirements: DC +5V
- Manufactured to Hewlett-Packard standards by Epson
- Country of Manufacture: China

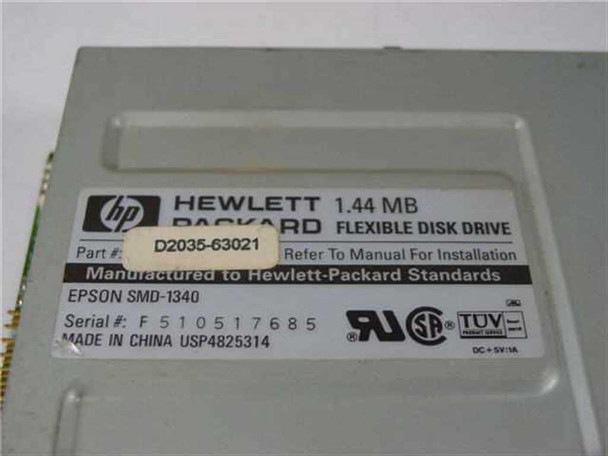

- Certifications: UL, CSA, TUV (visible on label)
- Drive only — no data cable or power adapter included
Applications
The 3.5" 1.44MB high-density floppy drive was the dominant removable storage standard for personal computers and workstations from the late 1980s through the early 2000s. HP sourced these drives under their own part numbers from established OEM manufacturers like Epson for use in their Vectra, Kayak, and other workstation and desktop lines. These drives are still sought today as replacement units for vintage HP desktops and workstations, legacy industrial PC systems, CNC machine tool controllers, and other equipment that depends on floppy-based software loading or data transfer. The 34-pin interface is compatible with the vast majority of motherboards and ISA/AT-era systems from that period that included an onboard floppy controller.

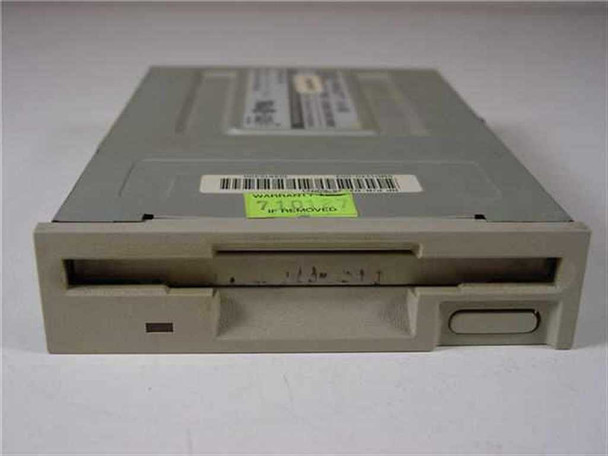

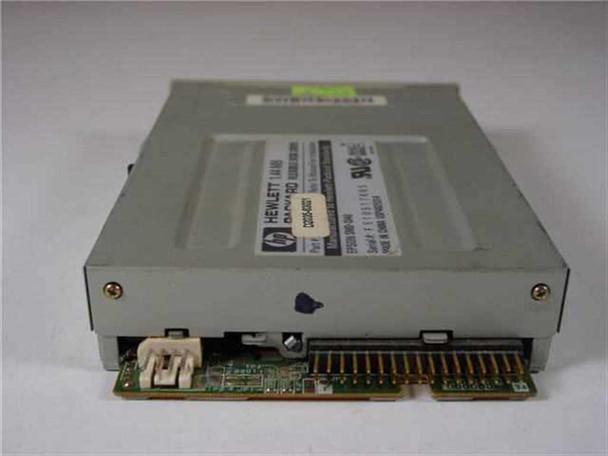

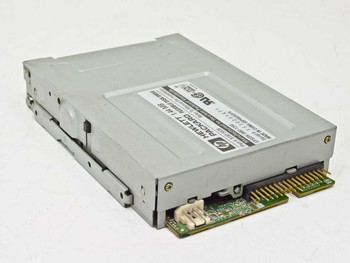

This HP D2035-63021 1.44MB 3.5" Floppy Drive (Epson SMD-1340) has been tested and is in good working condition. The drive shows typical light wear consistent with normal use — the beige faceplate has minor scuffing and there is a green warranty void sticker on the top cover. The 34-pin data connector and 4-pin power connector on the rear are intact and show no damage. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Hewlett-Packard |
Model: |
D2035-63021 |
MPN: |
D2035-63021 |
Secondary Model: |
Epson SMD-1340 |
Type: |
3.5" Internal Floppy Disk Drive |
Storage Capacity: |
1.44 MB |
Form Factor: |
3.5" Internal (Half-Height) |
Interface: |
34-Pin Floppy (Standard PC FDD Interface) |
Power Connector: |
4-Pin Berg (Floppy Power) |
Power Requirements: |
DC +5V |
Country/Region of Manufacture: |
China |
Compatible With: |
HP Workstations and PCs requiring 3.5" FDD |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Drive only; no cables or accessories included. |
SKU: |
13206 |
Condition Notes: |
HP D2035-63021 1.44MB 3.5" Floppy Drive (Epson SMD-1340). Tested and in good working condition. Shows light cosmetic wear; connectors intact. Drive only, no cables included. |
