HP D1430-60011 Processor Board Card CHIPS Controller PCB Module

HP D1430-60011 Processor Board Card CHIPS Controller PCB Module

The HP D1430-60011 is a processor board / controller card designed for use in HP workstation or computing systems that accept this module. The board features a CHIPS-branded main controller IC, multiple banks of memory expansion sockets, and a large card edge connector for system integration. It was manufactured in France, as indicated by the label on the solder side of the PCB.

Specifications & What's Included

• Part Number: D1430-60011
• Manufacturer: HP (Hewlett-Packard)
• Country of Manufacture: France
• Form Factor: Card/Module (large format PCB)
• Main Controller IC: CHIPS-branded chip (visible on component side, center of board)
• Memory Expansion: Four banks of expansion sockets (labeled A0–A3 and B0–B3 on PCB silkscreen)

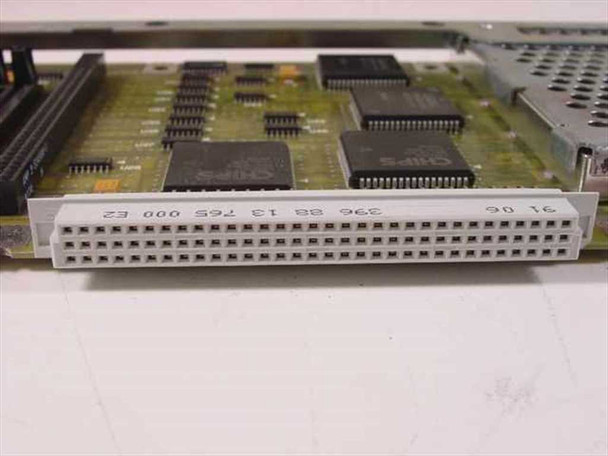

• Edge Connector: Large multi-pin card edge connector for system backplane or expansion slot
• Metal shield/cover with ventilation holes over a portion of the board
• Secondary CHIPS IC visible near edge connector end
• Board only — no cables, brackets, or accessories included

Applications

The HP D1430-60011 processor board is an internal module designed for HP computing or workstation systems from the late 1980s to early 1990s — an era when HP produced a range of proprietary workstations and computing platforms using modular, card-based architectures. Boards of this type typically served as the central processing or I/O control module within the host system, interfacing with memory, storage, and peripheral subsystems through the backplane. The CHIPS (Chips and Technologies) controller IC on this board was a common chipset supplier for PC-compatible and workstation designs of the era. These boards are primarily sought today by technicians and hobbyists maintaining legacy HP systems, or for use as spare/replacement parts in systems that use the same module.
