Description

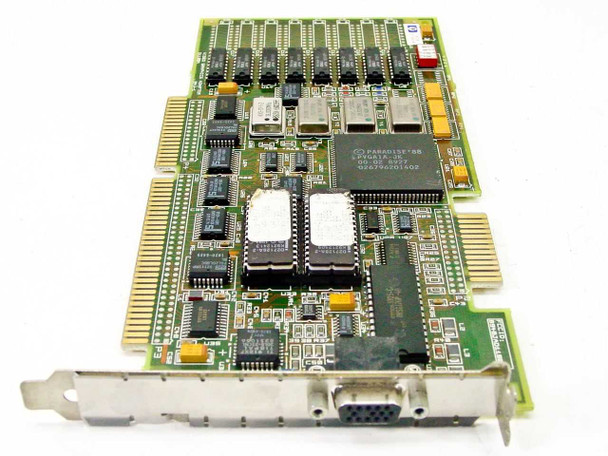

HP D1180-60011 16-Bit ISA VGA Video Card 256KB 14-Pin VGA D1180A
The HP D1180-60011 is a 16-bit ISA VGA video card with 256KB of on-board video memory, designed for HP workstations and compatible PCs equipped with a 16-bit ISA expansion slot. The board carries revision marking D1180 A and was manufactured in the USA. One important detail: this card's VGA output connector has 14 pins rather than the standard 15-pin configuration — buyers should verify their monitor or adapter is compatible before purchasing.
Specifications & What's Included
- Part Number: D1180-60011
- Board Revision: D1180 A
- Bus Interface: 16-Bit ISA
- Video Memory: 256KB
- Video Output: 14-Pin VGA connector (non-standard — not the typical 15-pin VGA)
- Form Factor: Full-length ISA card with single-slot bracket
- Country of Manufacture: USA
- Includes: Card only — no cables or accessories
- DIP switches visible on board (SW1 area) for configuration
- OKI memory ICs visible on board (date code 923107)
Applications
ISA VGA video cards like the HP D1180-60011 were the standard display adapters in IBM-compatible PCs and HP workstations of the late 1980s and early 1990s, when the 16-bit ISA bus was the dominant expansion slot standard before PCI became widespread. This card was designed for use in HP's own PC/workstation line and supports standard VGA output (640×480 at up to 16 colors, 320×200 at 256 colors). Today these cards are sought by collectors, retro computing enthusiasts, and technicians maintaining legacy HP systems that require a period-correct ISA VGA adapter. The non-standard 14-pin VGA connector is characteristic of certain HP-proprietary implementations of the era — an important detail for anyone sourcing a replacement for a specific HP machine.
This HP D1180-60011 16-bit ISA VGA video card has been tested and is in good working condition — it displays BIOS on power-up. The board is clean with normal handling wear typical of pulled surplus hardware. Note that this card uses a non-standard 14-pin VGA connector rather than the usual 15-pin — please confirm compatibility with your display setup before ordering. Made in USA, board revision D1180 A. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
HP |
Model: |
D1180-60011 |
Secondary Model: |
D1180 A |
MPN: |
D1180-60011 |
SKU: |
43967 |
Type: |
ISA VGA Video Card |
Bus Interface: |
16-Bit ISA |
Video Memory: |
256KB |
Video Output: |
14-Pin VGA (non-standard; not standard 15-pin) |
Connector Type: |
14-Pin VGA |
Form Factor: |
Full-Length ISA Card |
Country/Region of Manufacture: |
United States |
Compatible With: |
HP workstations and PCs with 16-bit ISA slots |
Seller Notes: |
VGA port has 14 pins, not the standard 15 pins. Tested good — displays BIOS. |
Condition Notes: |
This HP D1180-60011 16-bit ISA VGA video card has been tested and is in good working condition — displays BIOS on power-up. Uses a 14-pin VGA connector (not standard 15-pin). Normal wear. Made in USA. |
