Description

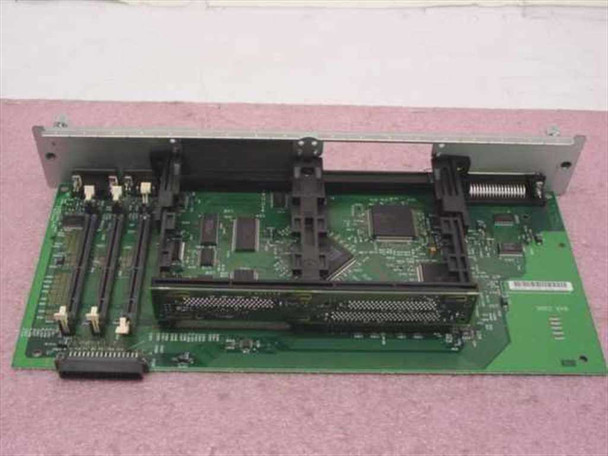

HP C3974-60001 Formatter Board Assembly LaserJet 5000 5000N 5000DN 5000GN
The HP C3974-60001 is the OEM formatter board assembly for the HP LaserJet 5000 series laser printer. The formatter is the printer's main controller board — it receives print data from the host computer, processes the page description language (PCL or PostScript), and coordinates the print engine to produce output. Without a functioning formatter, the printer cannot communicate with a host or generate pages.
Specifications & What's Included
- Part Number: C3974-60001
- Compatible Models: HP LaserJet 5000, 5000N, 5000DN, 5000GN
- Country of Manufacture: USA (as marked on PCB label)
- I/O Ports: Parallel (Centronics/Bi-Tronics) port and two DB9 serial ports on rear I/O bracket
- Expansion: Multiple SIMM-style memory expansion slots on PCB
- Form Factor: Full-length card assembly with integrated metal I/O bracket
- Includes: Formatter board with I/O bracket — no cables included
Applications
The HP LaserJet 5000 series was a workgroup-class monochrome laser printer introduced in the late 1990s, capable of printing up to 16 pages per minute at 1200 dpi. The formatter board is a common service replacement part for these printers, typically needed when a unit loses communication with the host computer, displays a formatter error, or fails to initialize. The 5000 series remains in use in offices and organizations that maintain legacy HP LaserJet fleets, and replacement formatter boards are the standard repair path when the engine itself is still functional. This board is compatible across the 5000, 5000N, 5000DN, and 5000GN variants of the printer.
This HP C3974-60001 Formatter Board Assembly for the LaserJet 5000 series has been pulled from a working environment where it was previously in use. It has been visually inspected and photographed — the PCB shows normal handling wear consistent with prior installation, and the I/O bracket and connectors appear intact. The part number label on the board is clearly legible and confirms C3974-60001, USA-made. Please review all photos for a full picture of the board's cosmetic state, and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
HP |
Model: |
C3974-60001 |
MPN: |
C3974-60001 |
Type: |
Formatter Board Assembly |
SKU: |
28992 |
Compatible With: |
HP LaserJet 5000 |
Compatible With 2: |
HP LaserJet 5000N, 5000DN, 5000GN |
Country/Region of Manufacture: |
United States |
Form Factor: |
Card/Module with I/O Bracket |
Interface/Ports: |
Parallel (Centronics), 2x DB9 Serial |
Expansion Slots: |
Multiple SIMM/memory expansion slots |
Seller Notes: |
Formatter board assembly with I/O bracket — no cables included. |
Condition Notes: |
This HP C3974-60001 LaserJet 5000 Formatter Board was pulled from a working environment and visually inspected. PCB and I/O bracket appear intact with normal handling wear. Please view photos and contact us with any questions. |
