HP C1104-66501 Interposer PC Board for SureStore Optical Jukebox 1200MX

(No reviews yet) Write a Review
SKU:
52346
MPN:
C1104-66501
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
6.00 LBS
Shipping:
Calculated at Checkout
  • HP C1104-66501 Interposer PC Board – angled top view showing full board layout with multiple connectors and ICs
  • HP C1104-66501 Interposer PC Board – second angled top view showing component side with ribbon connectors and power headers
  • HP C1104-66501 Interposer PC Board – top-down view of component side showing ICs and TESTED label affixed to board
  • HP C1104-66501 Interposer PC Board – top-down view of reverse component side showing TESTED label and C1104-66501 barcode label
  • HP C1104-66501 – close-up of barcode label showing part number C1104-66501

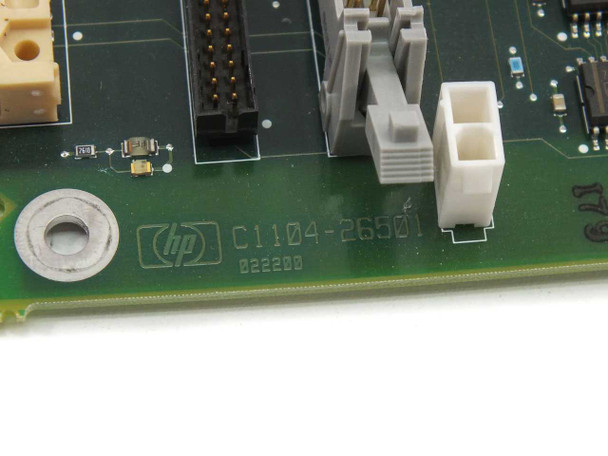

  • HP C1104-66501 – close-up of HP logo and part number C1104-26501 silkscreen with date code 022200
  • HP C1104-66501 – close-up of underside label showing serial number S23154RG, Made in USA from domestic and foreign components, and number 4012
  • HP C1104-66501 Interposer PC Board – PCB solder side showing C1110-60004 marking and Made in USA designation
$50.00
Was: $100.00
Current Stock: 1

Sold Out

Description

HP C1104-66501 Interposer PC Board for SureStore Optical Jukebox 1200MX

This interposer PC board is an internal component for the HP SureStore Optical Jukebox 1200MX, a WORM (Write Once, Read Many) optical storage system used in enterprise environments. The board facilitates communication between the optical drive mechanisms and the system controller.

Specifications & What's Included

  • Manufacturer: HP (Hewlett-Packard)
  • Model: C1104-66501 / Secondary Model C1110-60004
  • Type: Interposer PC Board / Card Module
  • Form Factor: Card / Module
  • Manufactured in USA
  • Board only; no additional accessories included

Applications

The SureStore Optical Jukebox 1200MX was deployed in data centers and archival storage systems during the late 1990s and early 2000s. This interposer board was used to route signals between optical media drives and control electronics within the jukebox chassis. These systems were common in backup and long-term data retention applications before magnetic tape and later disk-based solutions became dominant.

Condition: Used
This HP C1104-66501 Interposer PC Board was pulled from a working HP SureStore Optical Jukebox 1200MX where it was in use and functional. The board carries a 'TESTED' label (visible in photos) and is in good working condition. The PCB is clean overall with no visible damage, broken traces, or missing components. Connectors and headers appear intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
HP (Hewlett-Packard)
Model:
C1104-66501
MPN:
C1104-66501
Secondary Model:
C1110-60004
SKU:
52346
Type:
Interposer PC Board
Compatible With:
HP SureStore Optical Jukebox 1200MX
Form Factor:
Card / Module
Country/Region of Manufacture:
USA
Condition:
Used – Pulled from Working Environment
Seller Notes:
Pulled from HP SureStore Optical Jukebox 1200MX; board only, no additional accessories included.
Condition Notes:
HP C1104-66501 Interposer PC Board pulled from a working HP SureStore Optical Jukebox 1200MX. Board carries a TESTED label and is in good working condition. PCB is clean with no visible damage. Please contact us with questions.
