HP A-3210-48 Serial Parallel Module Card 28644-60002 Hewlett-Packard I/O

(No reviews yet) Write a Review
SKU:
41112
MPN:
A-3210-48
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
  • HP A-3210-48 Serial Parallel I/O Module front view showing DB25 serial and 50-pin parallel connectors on bracket

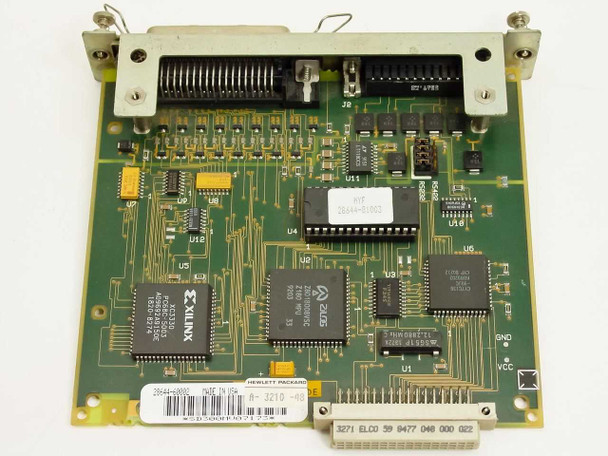

  • HP A-3210-48 module reverse side showing Hewlett-Packard label, MPN 28644-60002, Xilinx FPGA, ALUS ICs, and ELCO 59-pin edge connector
  • Close-up of HP A-3210-48 label showing part number 28644-60002, Made in USA, Hewlett-Packard branding, and serial SD300MV07173

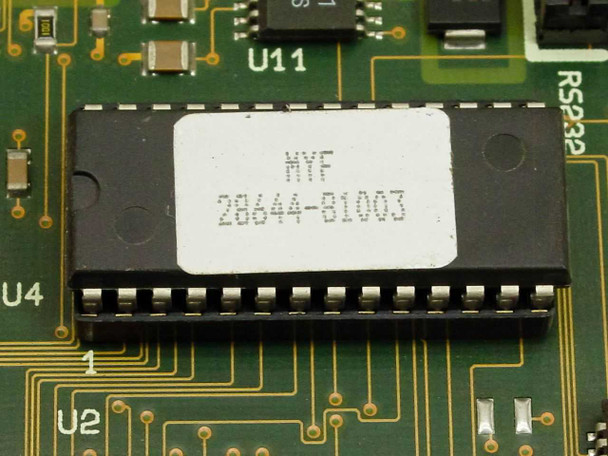

  • Close-up of HYF 28644-81003 ROM or firmware chip on HP A-3210-48 serial parallel module board

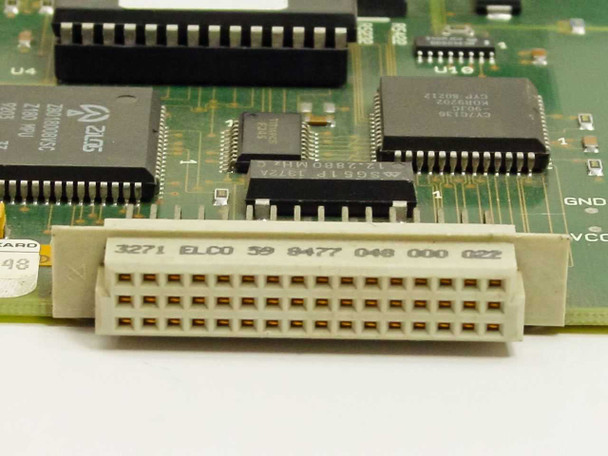

  • Close-up of ELCO 59-pin backplane edge connector on HP A-3210-48 module with ALUS logic ICs visible
$65.00
Was: $125.00
Current Stock: 1

Sold Out

Description

HP A-3210-48 Serial Parallel Module Card 28644-60002 Hewlett-Packard I/O

Serial and parallel I/O interface module card designed for HP instrumentation and test equipment systems. Provides DB25 serial connectivity and 50-pin parallel (Centronics/DDK) interface via ELCO 59-pin backplane connector.

Specifications & What's Included

  • Model: A-3210-48 | MPN: 28644-60002
  • Interface: Serial (DB25) and Parallel (50-pin Centronics/DDK)
  • Backplane: ELCO 59-pin connector (3271 ELCO 59)
  • Logic: Xilinx FPGA, ALUS logic ICs
  • Firmware: HYF 28644-81003 ROM chip
  • Manufactured: United States
  • Included: Card only; no cables or accessories

Applications

This module was used in HP test and measurement equipment requiring dual serial and parallel communication interfaces. Typical applications included data acquisition systems, laboratory instruments, and industrial control equipment built on HP's modular card-cage architecture. The FPGA-based design allowed configuration for specific I/O protocols and timing requirements. Compatible with HP systems accepting A-3210-48 modules.

Condition: Used
This HP A-3210-48 Serial/Parallel I/O Module (MPN 28644-60002) has been inspected and is in good used condition. The board and components appear clean and intact with no visible damage. The DB25 serial and 50-pin parallel port connectors on the bracket show normal wear consistent with prior installation use. The PCB, ICs, and ELCO backplane connector all look intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Hewlett-Packard
Model:
A-3210-48
MPN:
28644-60002
Secondary Model:
28644-60002
SKU:
41112
Type:
Serial/Parallel I/O Interface Module Card
Interface Type:
Serial (DB25), Parallel (Centronics/DDK 50-pin)
Connector Type:
DB25 Serial, 50-pin Parallel, ELCO 59-pin backplane
Form Factor:
Card/Module
Country/Region of Manufacture:
United States
Chipset / Logic:
Xilinx FPGA, ALUS logic ICs
Firmware / ROM:
HYF 28644-81003 (ROM/firmware chip)
Backplane Connector:
ELCO 59-pin (3271 ELCO 59 9477 040 000 022)
Compatible With:
HP Hewlett-Packard instrument/system using A-3210-48
Condition:
Used – Inspected
Seller Notes:
Card only; no cables or accessories included.
Condition Notes:
HP A-3210-48 Serial/Parallel I/O Module (28644-60002) inspected and in good used condition. Board and connectors intact, no visible damage. Normal wear from prior use. Card only, no cables included.
