HP 8746B S-Parameter Test Set 0.5-12.4 GHz Agilent w/ 8411A Converter

HP 8746B S-Parameter Test Set 0.5-12.4 GHz Agilent w/ 8411A Converter

The HP (Hewlett-Packard) / Agilent 8746B is a microwave S-Parameter Test Set designed to measure all four S-parameters (S11, S12, S21, S22) of two-port RF and microwave devices across a frequency range of 0.5 to 12.4 GHz. It functions as a wideband RF power divider and reflectometer, incorporating a calibrated line stretcher for reference plane extension and a front-panel selectable incident signal attenuator (0 to 70 dB). The 8746B also provides an internal DC bias capability for characterizing active two-port devices such as amplifiers and transistors without an external bias tee.

Specifications & What's Included

• Model: HP / Agilent 8746B S-Parameter Test Set
• Frequency Range: 0.5 to 12.4 GHz
• S-Parameters: S11, S12, S21, S22 — front-panel selector buttons
• Directivity: ≥30 dB (0.5 to 4 GHz); ≥26 dB (4 to 12.4 GHz)
• Incident Signal Attenuation: 0 to 70 dB, selectable in steps (0, 10, 20, 30, 40, 50, 60, 70 dB)

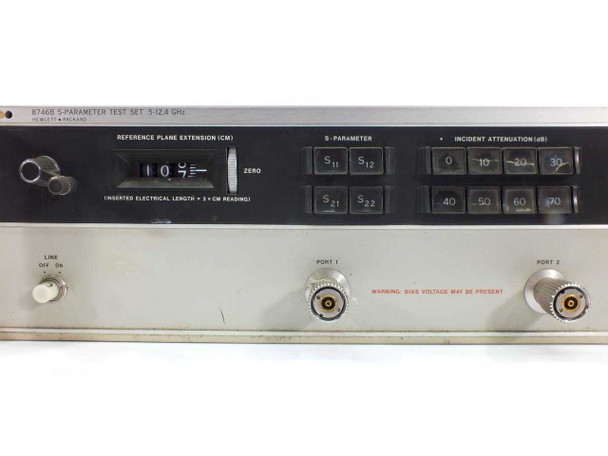

• Reference Plane Extension: Calibrated line stretcher with front-panel cm-scale dial and zero control
• Internal Bias: Yes — supports DC biasing of two-port active devices
• Port Connectors: Port 1 and Port 2 Type-N connectors on front panel
• Bias Voltage Warning: Labeled on front panel — caution required during device characterization
• Rear Panel: Manual/Remote switch, Remote Input connector (parallel), Reference Line section with Bias and Sense ports, RF Input connector
• Dimensions: 19" W × 18" D × 5.25" H
• Form Factor: Rackmount / Benchtop
• Included: HP 8411A Harmonic Frequency Converter (0.1–12.4 GHz)
• Included: HP 8746B-H25 Reference Line

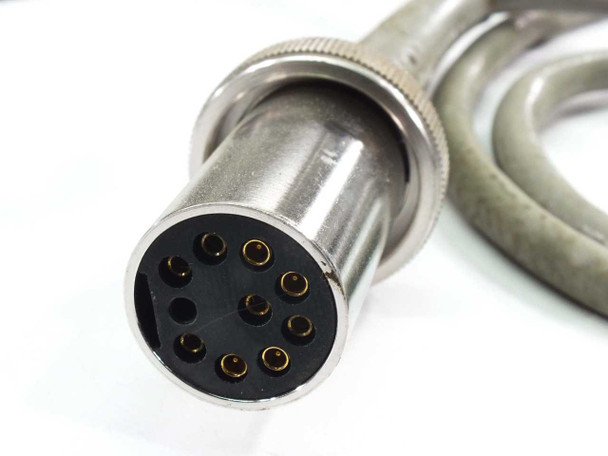

• Included: Multi-pin circular interconnect cable (visible in photos)

Applications

The HP 8746B S-Parameter Test Set is an accessory designed for use with HP / Agilent swept-frequency network analyzer systems — primarily paired with instruments such as the HP 8410 series network analyzer mainframe to enable full two-port S-parameter characterization. It was widely used in RF and microwave laboratories, defense electronics, semiconductor device characterization, amplifier design, and antenna and filter development during the era of HP swept-frequency analysis (1970s–1990s). The 8411A Harmonic Frequency Converter it includes extends coverage to 12.4 GHz, making the system suitable for characterizing components through X-band. Labs maintaining or servicing legacy HP 8410-series network analyzer setups, as well as engineers performing research on microwave passive and active components, are the primary users of this equipment today.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.
