Description
HP 8360 Series 83623A 83624A Synthesized Sweeper Calibration Manual w/ Disks
This is the Volume 2 Calibration Manual for the HP 8360 Series Synthesized Sweepers, covering Models 83623A (0.01–20 GHz High Power) and 83624A (2–20 GHz High Power). The package includes the printed 3-ring binder manual along with two HP 8360 Series Service Support Software diskettes, providing the complete calibration and maintenance reference for these instruments.
Specifications & What's Included
- Compatible with HP 83623A Synthesized Sweeper — 0.01 to 20 GHz, High Power
- Compatible with HP 83624A Synthesized Sweeper — 2 to 20 GHz, High Power
- Document type: Calibration Manual, Volume 2
- Format: Printed manual in 3-ring binder

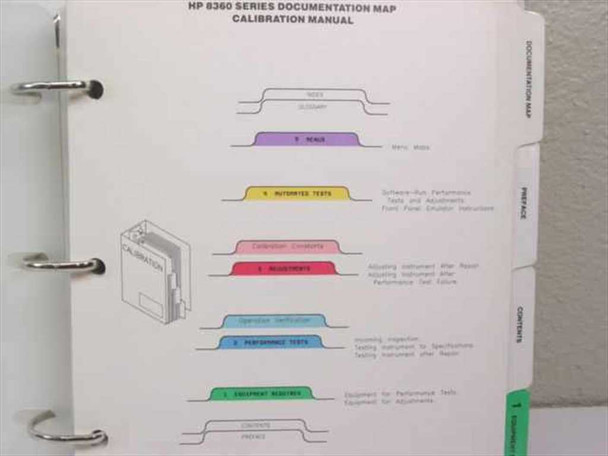

- Contents: Performance Tests, Adjustments, Automated Tests, Menu Maps
- Two HP 8360 Series Service Support Software diskettes included (Disk 1 of 2 and Disk 2 of 2)
- Software Part Number: 08360-10021, Revision A.01.02
- Diskettes stored in protective plastic sleeves inside the binder
- Published by Hewlett-Packard, United States
Applications
The HP 8360 Series Synthesized Sweepers are high-performance microwave signal sources used extensively in RF and microwave test environments, covering frequencies from 0.01 GHz to 20 GHz. This calibration manual supports technicians performing scheduled maintenance, post-repair verification, and performance testing on the 83623A and 83624A. The included service support software automates performance tests and front-panel emulation routines, making it a practical complement to the printed procedures. These sweepers were widely used in antenna measurement systems, component characterization, radar cross-section testing, and production-line RF verification throughout the 1990s and into the 2000s. A complete calibration manual set with original software diskettes is increasingly difficult to find and is essential for maintaining these instruments to HP factory specifications.
This HP 8360 Series 83623A / 83624A Synthesized Sweeper Calibration Manual is in good used condition. The 3-ring binder and covers show normal shelf wear consistent with age, and all pages appear to be present and legible throughout. Both HP 8360 Series Service Support Software diskettes (Disk 1 of 2 and Disk 2 of 2, part number 08360-10021 Rev. A.01.02) are included and stored in protective plastic sleeves inside the binder. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
HP |
Model: |
83623A / 83624A |
Series: |
HP 8360 Series Synthesized Sweepers |
MPN: |
83623A / 83624A |
SKU: |
27907 |
Document Type: |
Calibration Manual |
Volume: |
Volume 2 |
Seller Notes: |
Includes two HP 8360 Series Service Support Software diskettes (Disk 1 of 2 & Disk 2 of 2) in protective sleeves |
Compatible With 1: |
HP 83623A Synthesized Sweeper 0.01–20 GHz High Power |
Compatible With 2: |
HP 83624A Synthesized Sweeper 2–20 GHz High Power |
Frequency Range: |
0.01–20 GHz (83623A); 2–20 GHz (83624A) |
Contents: |
Performance Tests, Adjustments, Automated Tests, Menu Maps |
Software Included: |
HP 8360 Series Service Support Software Disk 1 of 2 & Disk 2 of 2 |
Software Part Number: |
08360-10021 Rev. A.01.02 |
Form Factor: |
Binder (3-Ring) |
Country of Manufacture: |
United States |
Condition Notes: |
HP 8360 Series 83623A/83624A Synthesized Sweeper Calibration Manual in good used condition. Normal shelf wear on binder and covers. All pages present and legible. Both software diskettes (08360-10021 Rev. A.01.02) included in sleeves. |
Type: |
Calibration Manual with Software Diskettes |
Language: |
English |
Format: |
Print (Binder) + Floppy Diskettes |
Country/Region of Manufacture: |
United States |
