HP 8340B 8341B 08340-90243 Synthesized Sweeper Calibration Manual Vol 2 Aug 1986

HP 8340B 8341B 08340-90243 Synthesized Sweeper Calibration Manual Vol 2 Aug 1986

This is the original Hewlett-Packard Calibration Manual, Volume 2 (HP Part Number 08340-90243) for the HP 8340A/B and 8341A/B Synthesized Sweepers. Specifically, this volume covers the Attenuator Calibration and Operation Verification Test Software — the software-driven calibration and verification procedures used to maintain and confirm the accuracy of these HP RF sweeper instruments. It is a printed, bound manual dated August 1986.

Specifications & What's Included

• HP Part Number: 08340-90243
• Microfiche Part Number: 08340-90244
• Print Date: August 1986
• Volume: 2
• Document Type: Calibration Manual
• Applies To: HP 8340A, HP 8340B, HP 8341A, HP 8341B Synthesized Sweepers
• Subject Coverage: Attenuator Calibration and Operation Verification Test Software
• Format: Printed and bound in white binder
• Language: English
• Key sections include: Test Software Discs, Mass Storage and Data Storage, HP-IB addressing, Test Dependency Flow Chart, System Setup, Cal Utility procedures, IF Attenuator calibration, Power Sensor calibration, 10 MHz calibration procedure

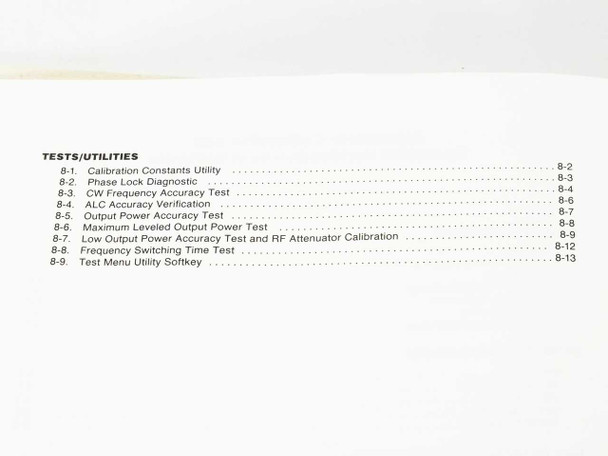

• Tests/Utilities covered: Calibration Constants Utility, Phase Lock Diagnostic, CW Frequency Accuracy Test, ALC Accuracy Verification, Output Power Accuracy Test, Maximum Leveled Output Power Test, Low Output Power Accuracy Test, RF Attenuator Calibration, Frequency Switching Time Test, Test Menu Utility Softkey

Applications

The HP 8340A/B and 8341A/B are synthesized RF sweep generators from Hewlett-Packard's high-performance microwave line, produced in the 1980s and covering frequency ranges into the microwave region (the 8340B covers 10 MHz to 26.5 GHz). These instruments were — and for legacy test bench and calibration lab use, still are — widely used in RF and microwave component testing, antenna range characterization, and system-level stimulus/response measurements. This Volume 2 calibration manual is specifically needed when running the software-based attenuator calibration and operation verification routines, which require a host computer, disc drive, and the associated HP test software to execute. Technicians maintaining or recalibrating an HP 8340 or 8341 series sweeper will need this manual to correctly configure HP-IB addressing, load the calibration utility, enter calibration data for supporting instruments (such as the HP 355D IF Attenuator and HP 8485A Power Sensor), and run the full suite of verification tests. It is an essential companion to Volume 1 for any shop performing a full calibration cycle on these instruments.
