Description

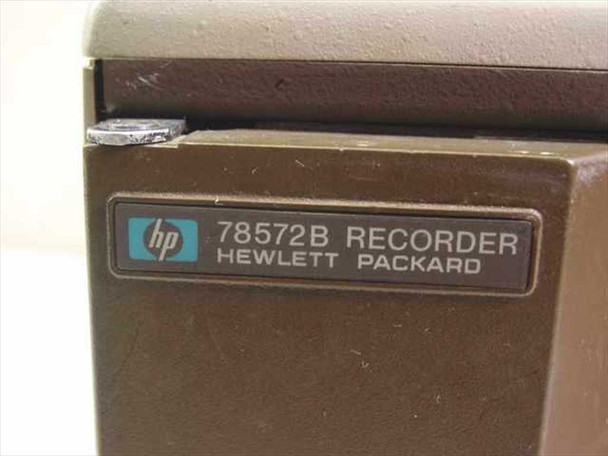

HP Hewlett Packard 78572B Thermal Chart Recorder Stylus ECG Strip 100-240V
The HP 78572B is a benchtop thermal stylus chart recorder made by Hewlett-Packard. It uses a heated stylus to mark on heat-sensitive roll paper, producing a continuous time-stamped trace without ink, toner, or ribbon. The unit features front-panel controls for stylus heat adjustment, variable chart speed, and a built-in date and time stamp function with settings for year, month, day, hour, and minute.
Specifications & What's Included
- Make: Hewlett-Packard (HP)
- Model: 78572B
- Type: Thermal Stylus Chart / Strip Recorder
- Power Input: 115 VA Max, 60 Hz
- Voltage Selector: 100V, 120V, 220V, or 240V (switch-selectable on rear panel)
- Fuse: 100V/120V — 1.0A; 220V/240V — 500mA
- Power Connector: IEC C13 inlet (rear panel)
- Recording Method: Thermal stylus (heat-sensitive paper)
- Front Panel Controls: Stylus Heat, Chart Speed (mm/s), Date View, Time Set (HR/MIN), Date Set (DAY/MO), Year Set, Stop, Continue
- Front Panel Display: Red LED numeric display (chart speed / status)
- Input/Output: Screw terminal block (INPUT and OUTPUT connections, rear/side panel)
- Form Factor: Benchtop / Desktop
- Media: Thermal roll chart paper (not included)
- No ink, toner, ribbon, or recording media included
Applications
The HP 78572B is a strip chart recorder from the 1980s era of Hewlett-Packard medical and laboratory instrumentation. Strip chart recorders of this type were used to produce a continuous paper trace of an analog signal over time — most commonly in clinical and physiological monitoring applications such as electrocardiography (ECG/EKG), patient vital signs trending, and other biomedical signal recording. The thermal stylus design eliminated the need for ink pens or ribbon, reducing maintenance and improving reliability in clinical environments. HP produced a range of compatible recorders and patient monitors during this period, and the 78572B was designed to integrate with HP's bedside monitoring and cardiology systems. Today, units like this are sought by biomedical engineers for legacy system support, vintage medical equipment collectors, and labs needing a straightforward analog chart recording solution. The selectable 100–240V input makes it compatible with international power systems.

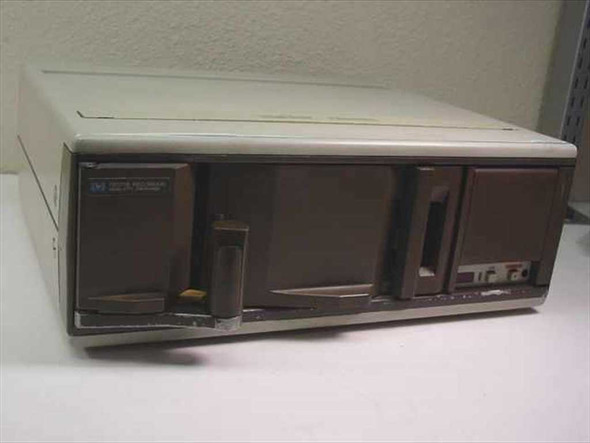

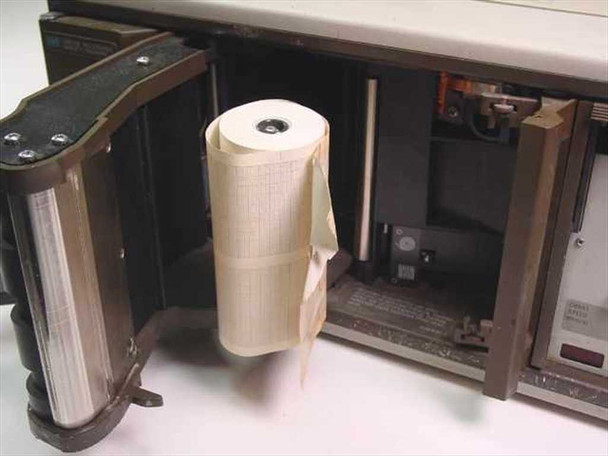

HP Hewlett Packard 78572B Thermal Chart Recorder Stylus ECG Strip — sold AS-IS for parts or repair, not tested, no functionality guarantee. The unit shows cosmetic wear including scuffing and surface soiling on the front panel and paper compartment door, with a torn paper fragment visible on the door. Rear voltage selector and fuse block are intact and accessible. No chart paper, ribbon, or recording media included. Sold exactly as pictured.
Warranty Information
Additional Information
Brand: |
Hewlett-Packard |
Model: |
78572B |
MPN: |
78572B |
Type: |
Thermal Stylus Chart Recorder |
SKU: |
29186 |
Power Requirements: |
100-240V AC, 60 Hz, 115 VA Max |
Voltage Selector: |
100V, 120V, 220V, 240V (selectable) |
Fuse Ratings: |
100V/120V: 1.0A; 220V/240V: 500mA |
Recording Method: |
Thermal Stylus |
Controls: |
Stylus Heat, Chart Speed, Date/Time Set, Stop/Continue |
Date/Time Stamp: |
Yes — Year, Month, Day, Hour, Minute |
Chart Speed: |
Variable (mm/s selector on front panel) |
Input/Output: |
INPUT and OUTPUT terminals (screw terminal block) |
Form Factor: |
Benchtop / Desktop |
Media Type: |
Thermal roll chart paper (not included) |
Seller Notes: |
No toner, ink, ribbon, or media included. |
Country/Region of Manufacture: |
United States |
Condition: |
Used – Inspected and in Good Condition |
Condition Notes: |
HP 78572B Thermal Chart Recorder — AS-IS for parts/repair, not tested. Cosmetic wear, scuffing, soiling on front/door. No paper, ribbon, or media. See photos. |
