HP 59303A Digital to Analog Converter HP-IB Module For Parts No Power

HP 59303A Digital to Analog Converter HP-IB Module For Parts No Power

The HP 59303A is a Digital to Analog Converter (DAC) module designed for use with Hewlett-Packard HP-IB (GPIB, IEEE-488) instrument systems. It accepts digital data over the HP-IB bus and outputs a corresponding analog voltage, enabling computer-controlled analog signal generation in automated test setups. This unit does not power on and is being sold strictly AS-IS for parts or repair.

Specifications & What's Included

• Make: Hewlett-Packard (HP)
• Model: 59303A
• Type: Digital to Analog Converter (DAC), HP-IB Module
• Interface: HP-IB (GPIB / IEEE-488)
• Output Voltage — Normal mode: 0V to +9.99V
• Output Voltage — Offset mode: 0V to +9.99V (offset)
• Output Voltage — Plus/Minus mode: -9.99V to +9.99V
• Calibration reference voltages: +9.99V REF, 0.00V REF, -9.99V REF
• Output connectors: BNC (OUTPUT), banana jacks (front panel), DB-25 style output connector (rear)
• Blanking output: dedicated BNC connector on rear panel
• Line voltage: 115V or 230V selectable (48–440 Hz, 22 VA max)
• Fuse — 230V setting: 100 mA T
• Fuse — 115V setting: 200 mA T
• Front-panel indicators: ON, REMOTE, LISTENING, LOCAL LEDs
• Front-panel controls: OUTPUT MODE selector (8-position LED array), CONVERSION selector (8-position LED array)

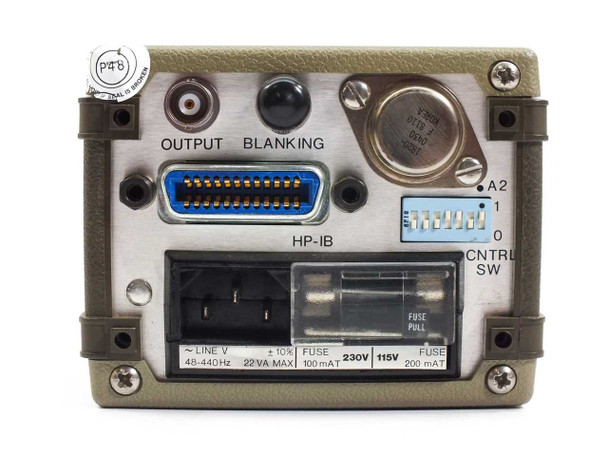

• Rear panel: HP-IB (GPIB) connector, IEC AC inlet with fuse drawer, CNTRL SW DIP switch bank
• Form factor: Benchtop modular instrument (HP 59300 series)
• Unit only — no cables or accessories included

Applications

The HP 59303A was part of Hewlett-Packard's 59300 series of HP-IB peripheral modules, introduced in the 1970s and 1980s to extend the capability of HP-IB (IEEE-488 / GPIB) automated test systems. In an HP-IB setup, a controller — typically an HP desktop computer or instrument controller — would send digital commands over the bus, and the 59303A would convert those digital values into precise analog output voltages. This made it possible to drive analog devices, set reference levels, or generate calibrated voltage stimuli from within a fully automated test sequence. The 59300 series modules were widely used in electronics manufacturing test, laboratory calibration benches, and automated inspection systems of that era, where a mix of digital control and analog stimulus was required. Compatible with any IEEE-488 / GPIB controller. Today these modules are primarily sought for legacy system maintenance, calibration lab restoration, and parts.
