Description
HP 5184-4725 PCI Fast Ethernet Card 10/100 RJ-45 HP Pavilion 8765C 243127-208

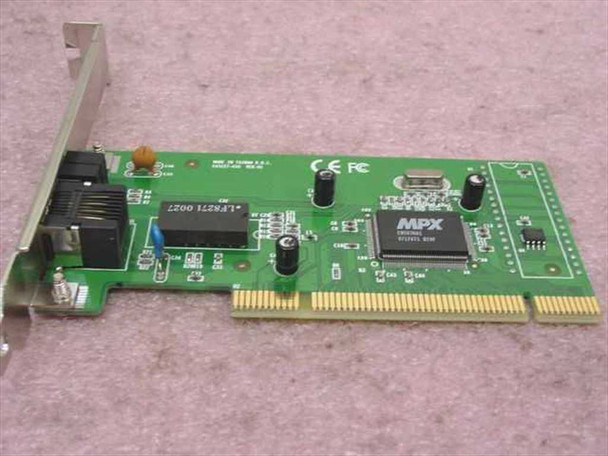

The HP 5184-4725 is an OEM PCI Fast Ethernet network interface card produced by HP for Pavilion desktop systems, including the 8765C. It provides a standard 32-bit PCI bus connection and a single RJ-45 port for 10/100 Mbps wired Ethernet, supporting both 10BASE-T and 100BASE-TX network standards with auto-negotiation. The card uses an MPX Fast Ethernet controller and carries PCB assembly number 243127-208, Rev 1.
Specifications & What's Included
- HP Part Number: 5184-4725
- Reorder P/N: 5184-4725

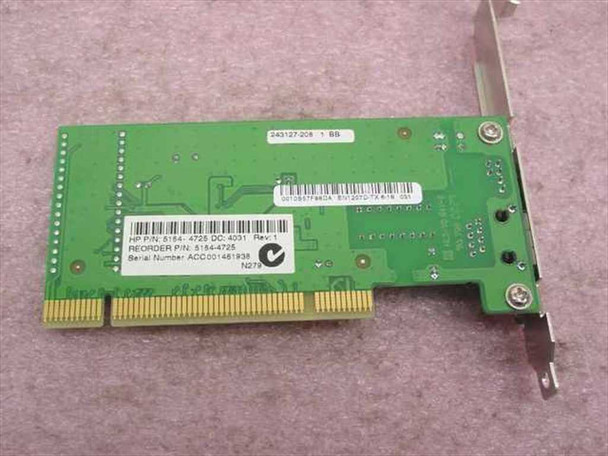

- PCB Assembly: 243127-208, Rev 1
- Date Code: DC 4031
- Interface: 32-bit PCI
- Network Speed: 10/100 Mbps (Fast Ethernet)
- Network Standards: 10BASE-T, 100BASE-TX (IEEE 802.3)
- Connector: Single RJ-45 port with dual activity/link LEDs
- Chipset: MPX Fast Ethernet controller
- Form Factor: Standard PCI card with full-height I/O bracket
- Country of Manufacture: Taiwan (printed on PCB)
- Certifications: CE, FCC (marked on PCB)
- Compatible With: HP Pavilion 8765C; also fits any standard 32-bit PCI slot
- Includes: Card with installed I/O bracket only — no cables
Applications
PCI Fast Ethernet NICs like the HP 5184-4725 were the standard way to add or replace wired network connectivity in desktop PCs of the late 1990s and early 2000s. This card was factory-installed in HP Pavilion consumer desktops, which used standard ATX motherboards with open PCI slots, making the card interchangeable with any PC of the era using a 32-bit PCI slot. While modern systems typically include integrated Gigabit Ethernet on the motherboard, PCI 10/100 cards like this one remain useful for older PCs that lack onboard networking, for systems where the onboard NIC has failed, or for legacy industrial and embedded systems that still use 32-bit PCI bus architectures. The RJ-45 interface connects directly to standard Cat 5 or better patch cables and is compatible with any 10/100 or Gigabit-capable switch or router port via auto-negotiation.
This HP 5184-4725 PCI Fast Ethernet card has been visually inspected and appears to be in good used condition. It was pulled from a working HP Pavilion 8765C system. The PCB is clean with no visible damage, cracked traces, or broken components. The RJ-45 port and bracket are intact. Normal light wear is expected on used equipment of this age. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
HP |
Model: |
5184-4725 |
MPN: |
5184-4725 |
Secondary Model: |
243127-208 |
SKU: |
33167 |
Type: |
PCI Fast Ethernet Network Card |
Chipset: |
MPX |
Interface: |
PCI (32-bit) |
Data Rate: |
10/100 Mbps (Fast Ethernet) |
Connector Type: |
RJ-45 |
Number of Ports: |
1 |
Network Standard: |
IEEE 802.3, 10BASE-T, 100BASE-TX |
Hardware Revision: |
Rev 1 |
Compatible With: |
HP Pavilion 8765C |
Form Factor: |
Low-Profile PCI Card |
Country/Region of Manufacture: |
Taiwan |
Seller Notes: |
Card only — no cables or brackets included beyond the installed I/O bracket. |
Condition Notes: |
This HP 5184-4725 PCI Fast Ethernet card has been visually inspected and is in good used condition. Pulled from a working HP Pavilion 8765C system. PCB clean, RJ-45 port and bracket intact. Contact us with any questions. |
