Description
HP 5182-4544 Hot Swap SCSI SCA-2 Drive Tray Rev D NetServer D3604A/B
The HP 5182-4544 is a hot-swap SCSI SCA-2 drive tray designed for use in HP NetServer rack storage systems. It accepts SCSI SCA-2 compliant drives and allows drives to be inserted and removed from a compatible NetServer enclosure without powering down the system. This is the Rev D version, as indicated by the label on the underside of the tray.
Specifications & What's Included
- Manufacturer: Hewlett-Packard (HP)
- Part Number: 5182-4544
- Secondary Part Number: D4289
- Revision: Rev D
- Interface: SCSI SCA-2
- SCSI Type: Fast-Wide SCSI (Ultra SCSI is NOT supported in this tray)
- Compatible Enclosures: HP NetServer Storage System /6 (D3604A, D3604B)

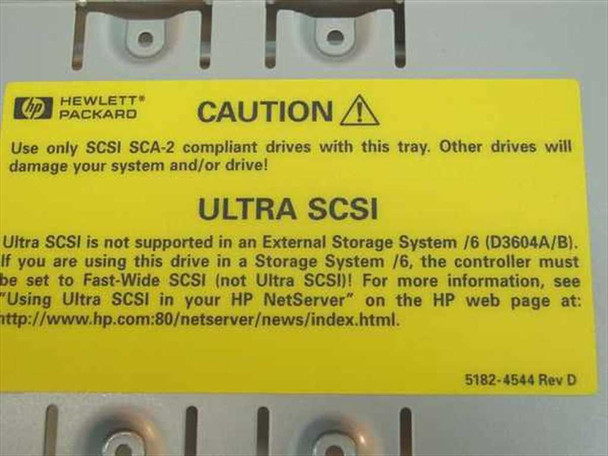

- Note: When used in a Storage System /6, the controller must be set to Fast-Wide SCSI — not Ultra SCSI

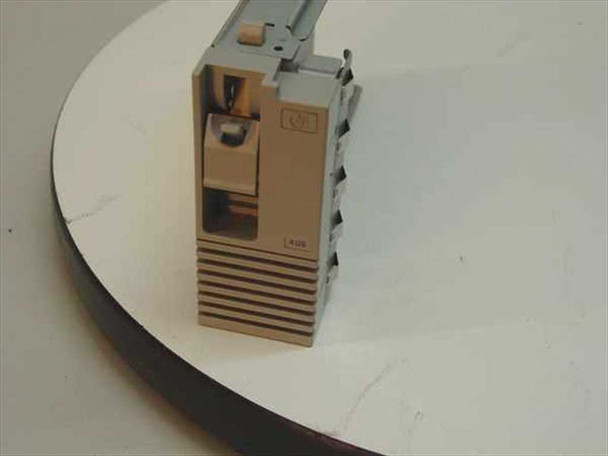

- Drive tray and ejector/latch mechanism only — no hard drive included
Applications
HP NetServer hot-swap drive trays like the 5182-4544 were used in HP's rack-mounted NetServer storage enclosures from the mid-to-late 1990s, when hot-swap SCSI storage was standard in enterprise server environments. The SCA-2 (Single Connector Attachment) interface combines power and data into a single 80-pin connector, simplifying hot-swap drive installation and removal. These trays are still sought by administrators maintaining legacy HP NetServer systems, particularly the D3604A and D3604B Storage System /6 enclosures, where a spare tray is needed to replace a missing or damaged carrier. Only drives with SCA-2 connectors are compatible — standard 50- or 68-pin SCSI drives require an adapter and are not directly supported.
This HP 5182-4544 Hot Swap SCSI SCA-2 Drive Tray has been inspected and appears to be in good used condition. It was pulled from a working server environment. The tray and ejector mechanism show normal wear consistent with prior service use. The Rev D label on the underside is clean and fully legible. Drive tray only — no hard drive is included. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
HP |
Model: |
5182-4544 |
MPN: |
5182-4544 |
Secondary Model: |
D4289 |
Revision: |
Rev D |
Type: |
Hot Swap SCSI SCA-2 Drive Tray |
Interface: |
SCSI SCA-2 |
SCSI Type: |
Fast-Wide SCSI (Ultra SCSI not supported) |
Compatible With: |
HP NetServer D3604A, D3604B |
Form Factor: |
Hot-Swap Drive Carrier / Tray |
Drive Compatibility: |
SCSI SCA-2 compliant drives only |
SKU: |
8845 |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Drive tray only; no drive included. Rev D label visible. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
HP 5182-4544 Rev D SCSI SCA-2 Hot Swap Drive Tray in good used condition. Pulled from a working server environment. Normal wear. Tray only — no drive included. |
