Description
HP 45935-60231 Vectra Power Supply ETX-661E16M 115-230V 5V 17.5A +12V 2.4A
The HP 45935-60231 (model ETX-661E16M) is a proprietary desktop power supply designed for the HP Vectra 286 series personal computer. Built to HP's custom form factor and pinout, it provides the regulated DC voltages the Vectra 286 system board and peripherals require. Input is selectable between 115V and 230V AC, making it suitable for both North American and international Vectra installations.
Specifications & What's Included
- Manufacturer Part Number: 45935-60231
- Model: ETX-661E16M
- Type: Proprietary AT-style desktop power supply
- Input Voltage: 115V~ / 230V~ (switchable)
- Input Current: 3.95A @ 115V / 2.12A @ 230V
- Input Frequency: 47–66 Hz
- Output +5V DC: 17.5A
- Output –5V DC: 0.25A
- Output +12V DC: 2.4A
- Output –12V DC: 0.25A
- Output +12V DC (secondary rail): 1A
- Internal Fuse: 250V 5A (ST4)
- Cooling: Panaflo FBH-12G12L DC 12V 0.3A brushless fan
- Connectors: AT main power connector + Molex peripheral power connectors on wire harness
- AC connections: IEC C14 inlet and IEC C13 outlet on rear panel
- Country of Manufacture: Singapore
- Certifications: UL, TÜV (Bauart Geprüft), CSA LR55465
- Included: Power supply unit with attached output wire harness
Applications
The HP Vectra line was HP's business-class IBM PC-compatible desktop series, introduced in the mid-1980s and running through the early 1990s. The Vectra 286 used an Intel 80286 processor and HP's proprietary chassis and power supply design — the ATX standard had not yet been adopted, so each manufacturer produced its own form factor. This 45935-60231 supply is the correct replacement or spare for Vectra 286 systems still in service, restoration projects, or legacy industrial applications where Vectra hardware remains in use. Because HP used a proprietary connector and pinout, standard AT or ATX power supplies are not direct substitutes; this original HP unit is the correct solution for keeping a Vectra 286 running. Collectors, legacy system maintainers, and industrial users keeping older HP workstations operational are the primary buyers for this type of supply.

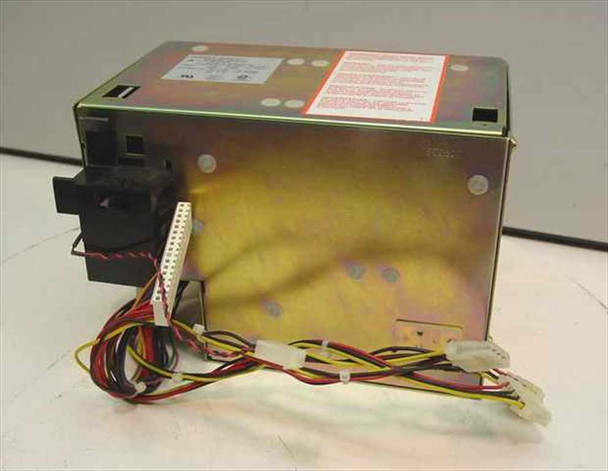

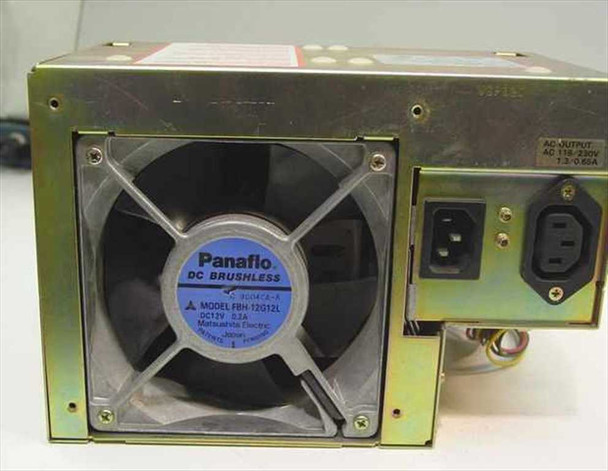

This HP 45935-60231 ETX-661E16M Vectra desktop power supply has been bench-tested at our facility and is in good working condition. The metal chassis shows light surface wear consistent with used equipment, and the Panaflo brushless cooling fan, IEC inlet/outlet, and output wire harness all appear intact and undamaged. Made in Singapore; UL, TÜV, and CSA certified. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
HP |
Model: |
45935-60231 |
MPN: |
45935-60231 |
Secondary Model: |
ETX-661E16M |
Type: |
Proprietary Desktop Computer Power Supply |
SKU: |
12425 |
Compatible With: |
HP Vectra 286 Series Desktop Computer |
Input Voltage: |
115V~ / 230V~ (switchable) |
Input Current: |
3.95A @ 115V / 2.12A @ 230V |
Input Frequency: |
47-66 Hz |
Output +5V: |
+5V DC @ 17.5A |
Output -5V: |
-5V DC @ 0.25A |
Output +12V: |
+12V DC @ 2.4A |
Output -12V: |
-12V DC @ 0.25A |
Output +12V (Secondary): |
+12V DC @ 1A |
Internal Fuse: |
250V 5A (ST4) |
Cooling: |
Panaflo FBH-12G12L DC 12V 0.3A Brushless Fan |
Country/Region of Manufacture: |
Singapore |
Certifications: |
UL, TÜV (Bauart Geprüft), CSA LR55465 |
Form Factor: |
Proprietary AT-style |
Connector Type: |
AT power connector + Molex peripheral connectors |
Seller Notes: |
Bench-tested at our facility. Wire harness included. No mounting hardware. |
Condition Notes: |
This HP 45935-60231 ETX-661E16M Vectra power supply has been bench-tested and is in good working condition. Light surface wear on the chassis; fan, connectors, and wire harness are intact. Please view photos and contact us with any questions. |
