HP Hewlett-Packard 28688B EtherTwist Hub Plus 12-Port 10Base-T AUI RS-232

(No reviews yet) Write a Review
SKU:
39514
MPN:
28688B
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
6.00 LBS
Shipping:
Calculated at Checkout
  • HP Hewlett-Packard 28688B EtherTwist Hub Plus – top and right-side view showing beige desktop enclosure with ventilation slots

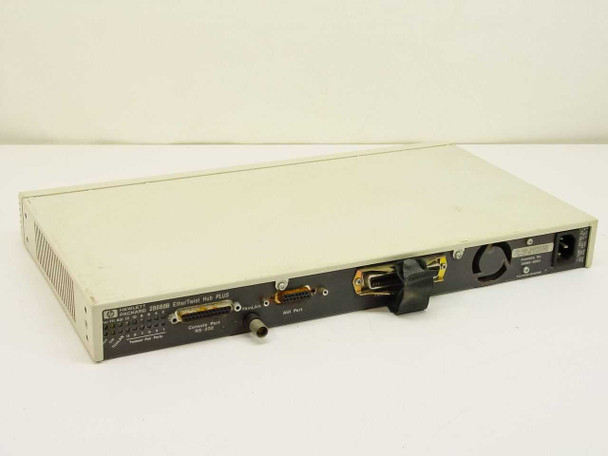

  • HP 28688B EtherTwist Hub Plus – rear panel angled view showing Console Port RS-232, ThinLAN connector, AUI port, and fan exhaust
  • HP Hewlett-Packard 28688B EtherTwist Hub Plus – front panel close-up showing 12 twisted-pair port LEDs, Console Port RS-232 DB25, ThinLAN, and AUI Port labels
  • HP 28688B EtherTwist Hub Plus – right-side rear panel showing Twisted-Pair Ports 1-12 connector, fan, Assembly No. 28688-60011 label, and IEC AC power inlet
$65.00
Was: $125.00
Current Stock: 9

Sold Out

Description

HP Hewlett-Packard 28688B EtherTwist Hub Plus 12-Port 10Base-T AUI RS-232

A 12-port Ethernet hub from the 1990s that consolidates 10Base-T twisted-pair connections alongside AUI and 10Base2 (ThinLAN) ports. Operates at 10 Mbps and includes an RS-232 console management interface for basic network monitoring and configuration.

Specifications & What's Included

  • 12 twisted-pair 10Base-T ports plus AUI and ThinLAN (BNC) connectors
  • 10 Mbps switching; supports 10Base-T, 10Base2, and AUI standards
  • Managed via RS-232 DB25 console port
  • Desktop/rackmountable form factor
  • Unit only; no cables or accessories included

Applications

This hub was used to interconnect legacy 10 Mbps Ethernet segments in small office and departmental networks running DOS, early Windows, NetWare, or UNIX systems. The mixed connector support allowed integration of older coaxial ThinLAN installations with newer twisted-pair cabling. Typical deployments included small LANs, workgroup hubs, and network backbone connections in the 1990s.

Condition: Used
This HP Hewlett-Packard 28688B EtherTwist Hub Plus has been inspected and is in good used condition. The enclosure shows light surface scuffing and age-related discoloration typical of equipment from this era. The front-panel port LEDs, connectors, and rear IEC power inlet all appear intact and undamaged. The cooling fan is present and the unit shows no signs of physical damage. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Hewlett-Packard
Model:
28688B
MPN:
28688B
Assembly Number:
28688-60011
SKU:
39514
Type:
Ethernet Hub
Number of Ports:
12 Twisted-Pair (10Base-T) + AUI + ThinLAN
Port Speed:
10 Mbps
Networking Standard:
10Base-T, 10Base2 (ThinLAN), AUI
Console Interface:
RS-232
Connector Types:
Twisted-Pair, AUI, ThinLAN (BNC), RS-232 DB25
Management Type:
Managed (RS-232 console port)
Form Factor:
Desktop / Rackmountable
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Unit only; no cables or accessories confirmed included.
Country/Region of Manufacture:
United States
Condition Notes:
HP 28688B EtherTwist Hub Plus inspected and in good used condition. Light surface scuffing and age-related discoloration; connectors and fan intact, no physical damage noted.
View AllClose
